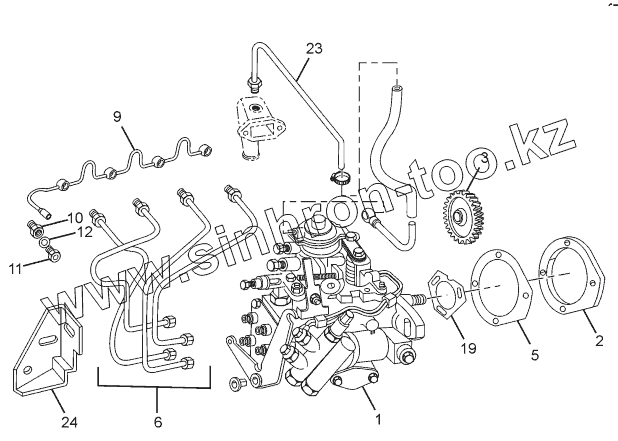

Каталог запасных частей к технике: Tata SFC 407 LHD Euro II. FUEL INJECTION EQUIPMENT
1
2
3
5
6
9
10
11
12
19
23
24
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 254707144201 | 254707144201 | CLAMP (INJECTOR OVERFLOW TUBE) | |
| 254707100114 | 254707100114 | ASSY BOOST LINE (FIP SIDE) | |
| 252707147501 | 252707147501 | RUBBER GROMMET | |
| 253407140135 | 253407140135 | ASSY. FUEL PRESSURE LINE BENT CYL. NO.1 | |
| 253407140136 | 253407140136 | ASSY. FUEL PRESSURE LINE BENT CYL. NO.2 | |
| 253407140138 | 253407140138 | ASSY. FUEL PRESSURE LINE BENT CYL. NO.3 | |
| 253407140141 | 253407140141 | ASSY. FUEL PRESSURE LINE BENT CYL. NO.4 | |
| 252707148202 | 252707148202 | CLAMPING PIECE LOWER | |
| 252707140102 | 252707140102 | ASSY. CLAMP LOWER | |
| 252707148201 | 252707148201 | PIPE CLAMP UPPER | |
| 253409110111 | 253409110111 | SPACER II ID | |
| 253409110110 | 253409110110 | SPACER 9 ID | |
| 1 | 460424235 | ASSY. FIP (ROTARY) | |
| 2 | 252507123702 | SUPPORT INJECTION PUMP | |
| 3 | 252707135402 | INJECTION PUMP GEAR EURO II | |
| 5 | 252707125301 | GASKET (FOR SUPPORT INJ.PUMP):EURO II KIT H.P.LINES (ROTARY FIP) | |
| 6 | 253407140134 | SET ASSY. FUEL PRESSURE LINE | |
| 9 | 252707140135 | ASSY. FUEL LEAKAGE LINE | |
| 10 | 3129970230 | PLUG | |
| 11 | 3129970330 | PLUG | |
| 12 | 3129970840 | GASKET RING FOR CYLINDER HEAD | |
| 19 | 252707125302 | GASKET, SUPPORT EURO II | |
| 23 | 252709130274 | ASSY AIR LINE (AIR INTAKE ELBOW TO LDA) | |
| 24 | 252707120103 | ASSY BRACKET (FIP MTG. ON CYL BLOCK) |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
