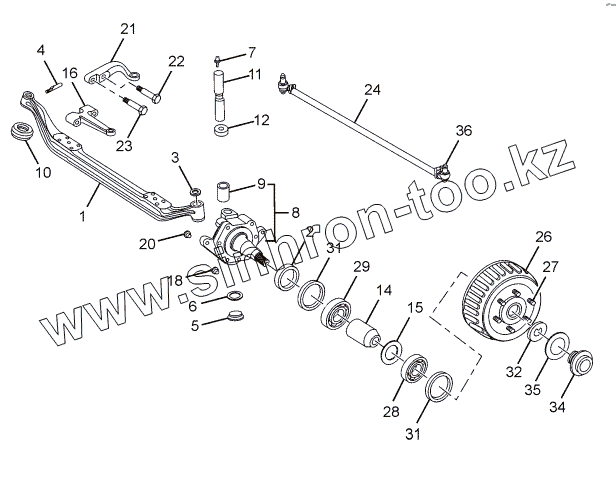

Каталог запасных частей к технике: Tata SFC 407 LHD Euro II. FRONT AXLE

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
5
6
7
8
9
10
11
11
11
11
11
11
11
11
11
12
14
15
15
15
15
15
15
15
15
15
15
16
18
20
21
21
22
23
24
26
27
28
29
31
31
32
34
35
36
36
Позиция на иллюстрации Заводской номер детали Название детали
885433020407 885433020407 KING PIN KIT WITH MINOR KIT & BUSH R/S II CONSISTING OF
885433080407 885433080407 KING PIN MINOR KIT CONSISTING OF:
COTTER BOLT COTTER BOLT COTTER BOLT
O’ RING O’ RING O’ RING
CIRCLIP B-30 CIRCLIP B-30 CIRCLIP B-30
SEALING CAP SEALING CAP SEALING CAP
HEX NUT M8 HEX NUT M8 HEX NUT M8
SPRING WASHER SPRING WASHER SPRING WASHER
GREASE NIPPLE GREASE NIPPLE GREASE NIPPLE
885433180407 885433180407 KING PIN KIT WITH MINOR KIT & BUSH STD CONSISTING OF
KING PIN BUSH KING PIN BUSH KING PIN BUSH
MINOR KIT MINOR KIT MINOR KIT
885433010407 885433010407 KING PIN KIT WITH MINOR KIT & BUSH R/S I CONSISTING OF
KING PIN BUSH KING PIN BUSH KING PIN BUSH
MINOR KIT MINOR KIT MINOR KIT
KING PIN BUSH KING PIN BUSH KING PIN BUSH
MINOR KIT MINOR KIT MINOR KIT
885433030407 885433030407 KING PIN KIT WITH MINOR KIT & BUSH STD I CONSISTING OF
KING PIN BUSH KING PIN BUSH KING PIN BUSH
MINOR KIT MINOR KIT MINOR KIT
885433040407 885433040407 KING PIN KIT WITH MINOR KIT & W/O BUSH STD CONSISTING OF
MINOR KIT MINOR KIT MINOR KIT
885433070407 885433070407 KING PIN KIT WITH MINOR KIT & W/O BUSH STD I CONSISTING OF
MINOR KIT MINOR KIT MINOR KIT
885433050407 885433050407 KING PIN KIT WITH MINOR KIT & W/O BUSH R/S I CONSISTING OF
MINOR KIT MINOR KIT MINOR KIT
885433060407 885433060407 KING PIN KIT WITH MINOR KIT & W/O BUSH R/S II CONSISTING OF
MINOR KIT MINOR KIT MINOR KIT
265133000109 265133000109 ASSY FRT.AXLE WITH BRAKES-LHD
1 265133105111 FRONT AXLE BEAM
2 264033408601 SEAL RACE (STUB AXLE)
3 265133208620 SHIM 1.6 MM THICK
3 265133208619 SHIM 1.5 MM THICK
3 265133208618 SHIM 1.4 MM THICK
3 265133208617 SHIM 1.3 MM THICK
3 265133208616 SHIM 1.2 MM THICK
3 265133208615 SHIM 1.1 MM THICK
3 265133208614 SHIM 1.0 MM THICK
3 265133208613 SHIM 0.9 MM THICK
3 265133208612 SHIM 0.8 MM THICK
3 265133208610 SHIM 0.7 MM THICK
3 265133208607 SHIM 0.4 MM THICK
3 265133208605 SHIM 0.2 MM THICK
3 265133208604 SHIM 0.1 MM THICK
3 265133208608 SHIM 0.5 MM THICK
4 265133109902 COTTOR BOLT
5 265133209905 KING PIN CAP
6 17050501230 ‘O’ RING 29.82X2.65
7 17170700805 GREASE NIPPLE BM 6X1
8 265133200131 ASSY. STUB AXLE (NORMAL)
9 265133203404 STEERING BUSH
10 265133403105 BEARING STEERING PIVOT (STD)
11 KING PIN R/S II KING PIN R/S II
11 KING PIN R/S I KING PIN R/S I
11 KING PIN STD I KING PIN STD I
11 KING PIN STD KING PIN STD
11 KING PIN STD I KING PIN STD I
11 KING PIN STD KING PIN STD
11 KING PIN R/S I KING PIN R/S I
11 KING PIN R/S II KING PIN R/S II
11 265133206706 KING PIN (STD)
12 265133403132 ASSY THRUST PAD(NORMAL) M/S TEXSPIN
14 265133209907 SPACER
15 265133208634 SHIM
15 265133208633 SHIM
15 265133208635 SHIM
15 265133208636 SHIM
15 265133208637 SHIM
15 265133208638 SHIM
15 265133208639 SHIM
15 265133208630 SHIM
15 265133208631 SHIM
15 265133208632 SHIM
16 265133805112 STEERING ARM ( LHD)
18 265133206304 DUST CAP
20 265133206302 DUST CAP
21 265133805110 TIE ROD ARM RH
21 265133805109 TIE ROD ARM LH
22 265133803206 BOLT
23 265133803207 BOLT
24 265133800106 TIE ROD ASSY.
26 265133403713 FRONT BRAKE DRUM WITH HUB
27 264040106703 WHEEL MOUNTING PIN
28 250626303101 TAPER ROLLER BEARING
29 265135603101 TAPER ROLLER BEARING
31 265133407804 OIL SEAL
32 265133409204 THRUST WASHER
34 264033408206 HUB COVER (FRONT AXLE)
35 264033405302 GASKET
36 265133800104 BALL JOINT ASSY. WITH LH THREAD
36 265133800105 BALL JOINT ASSY. WITH RH THREAD
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
