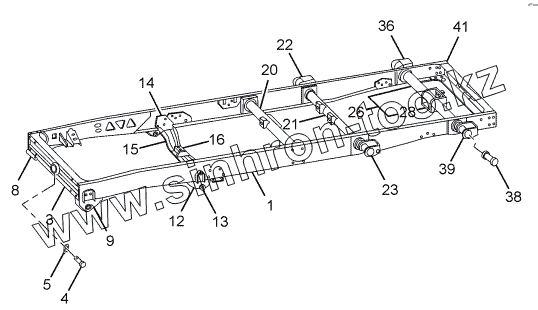

Каталог запасных частей к технике: Tata SFC 407 LHD Euro II. FRAME 357172, 357173, 357175
1
3
4
5
8
9
12
13
14
15
16
20
21
22
23
26
28
36
38
39
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 265131000117 | ASSY.FRAME(3100 W.B.TRUCK LHD) | |
| 3 | 264031200110 | ASSY. FRONT CROSS MEMBER (WITH TOWING HOOK) | |
| 4 | 265131406701 | PIN | |
| 5 | 265131406702 | PIN | |
| 8 | 265132100124 | ASSY. FRONT SPRING BRACKET FRONT RH | |
| 9 | 265132100123 | ASSY. FRONT SPRING BRACKET FRONT LH | |
| 12 | 265132100113 | ASSY. FRONT SPRING BRACKET WITH BUSH REAR | |
| 13 | 265132403401 | BUSH | |
| 14 | 265131408266 | SUPPORT GEAR BOX MOUNTING | |
| 15 | 265131400140 | ASSY. GEAR BOX MOUNTING CROSS MEMBER | |
| 16 | 265131400135 | ASSY. BRACKET | |
| 20 | 265131400172 | ASSY.CENTRE BRG.CROSS MEMBER-FOR LHD | |
| 21 | 265131400167 | ASSY.CROSS MEMBER-LHD(REAR SPR.FRT) | |
| 22 | 265132400132 | ASSY. REAR SPRING BRACKET FRONT RH | |
| 23 | 265132400130 | ASSY. REAR SPRING BRACKET FRONT LH | |
| 26 | 265131400176 | ASSY. CROSS MEMBER - (SPARE WHEEL CARRIER) | |
| 28 | 265731400101 | ASSY. REAR SPRING REAR CROSS MEMBER | |
| 36 | 265132400165 | ASSY. REAR SPRING BRACKET COMP. WITH BUSH (RH) | |
| 38 | 265132403401 | BUSH | |
| 39 | 265132400164 | ASSY. REAR SPRING BRACKET COMP. WITH BUSH (LH) | |
| 41 | 265131408252 | END CROSS MEMBER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
