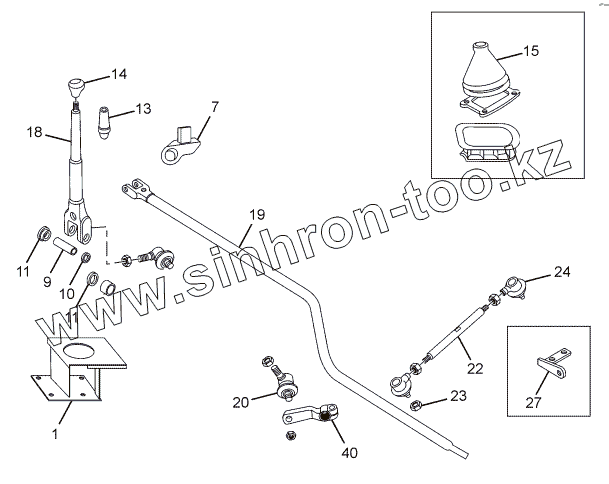

Каталог запасных частей к технике: Tata LPT 613 LHD EURO II. GEAR SHIFT LINKAGE
1
7
9
10
11
11
13
14
15
18
19
20
22
23
24
27
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 264126803412 | 264126803412 | BUSH (SPHERICAL SEAT G.S.LEVER) | |
| 264326810107 | 264326810107 | SUB ASSY. GUSSET (G S LEVER BKT) | |
| 264126800188 | 264126800188 | ASSY. RUBBER BELLOW | |
| 264126807715 | 264126807715 | FLAP (FOR CAB VERSION) | |
| 264126808234 | 264126808234 | BELLOW HOLDER | |
| 264126800204 | 264126800204 | SUB ASSY. CUP | |
| 268426713403 | 268426713403 | BUSH (EXTENSION ARM) | |
| 1 | 264326810105 | ASSY. BRACKET | |
| 7 | 264126803409 | BUSH (G.S.L.BALL SEAT) | |
| 9 | 264126808238 | RETAINING PLATE | |
| 10 | 264126808702 | SPRING RING | |
| 11 | 3522540097 | RUBBER BELLOW | |
| 13 | 264126806304 | SPACER GEAR SHIFT LEVER | |
| 14 | 263026700102 | ASSY. GEAR SHIFT LEVER KNOB | |
| 15 | 264126807717 | RUBBER SEAL | |
| 18 | 264126800227 | ASSY. GEAR SHIFT LEVER WITH BUSHES | |
| 19 | 264326800133 | ASSY. TURNING TUBE (WITHOUT BALL JOINT) | |
| 20 | 250726700152 | SUB. ASSY. BALL AND SOCKET JOINT BIG | |
| 22 | 276326807901 | LINK ROD | |
| 23 | 264126800224 | ASSY. BALL JOINT, RH THREADS | |
| 24 | 264126800225 | ASSY. BALL JOINT, LH THREADS | |
| 27 | 250526710260 | ASSY. BRACKET GEAR SHIFT LEVER | |
| 40 | 250726706013 | ASSY. SHIFTING LEVER |
