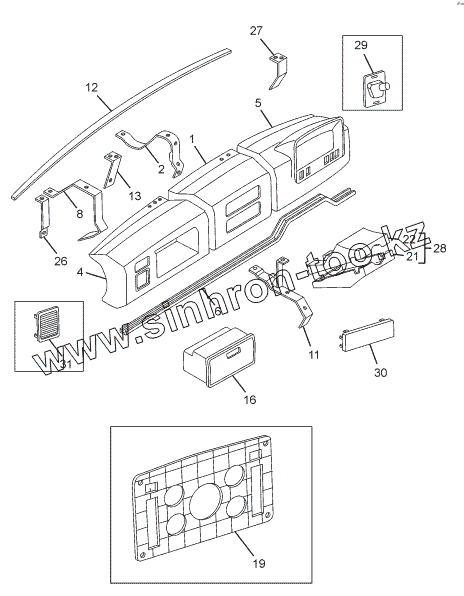

Каталог запасных частей к технике: Tata LPT 613 LHD EURO II. DASHBOARD
1
2
2
4
5
6
8
11
12
13
16
19
21
22
26
27
28
29
30
31
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 264168910107 | 264168910107 | ASSY. DASHBOARD COMPLETE | |
| 265183100166 | 265183100166 | ASSY.DEFROST DUCT COMPLETE | |
| 264168900158 | 264168900158 | ASSY.REINFORCEMENT (DASHBOARD) -LHD | |
| 274769000104 | 274769000104 | KIT FOR ROOF AND SIDE LINING | |
| 264168400108 | 264168400108 | KIT FLOOR MAT | |
| 264168400107 | 264168400107 | KIT FLOOR MAT | |
| 264168906365 | 264168906365 | COVER (T - EMBLEM) DASHBOARD | |
| 264168900131 | 264168900131 | ASSY. REINFORCEMENT INSIDE (GLOVE BOX) | |
| 1 | 264168906374 | DASHBOARD (CENTRE) (GREY) | |
| 2 | 264168900128 | ASSY. REINFORCEMENT MIDDLE LH | |
| 2 | 264168900129 | ASSY. REINFORCEMENT MIDDLE RH | |
| 4 | 215068906302 | DASHBOARD LH (GREY) | |
| 5 | 264168906373 | DASHBOARD RH (GREY) | |
| 6 | 274768908205 | REINFORCEMENT (FRONT) | |
| 8 | 264168900132 | ASSY. REINFORCEMENT OUTSIDE (GLOVE BOX) | |
| 11 | 215468900105 | ASSY, REINFORCEMENT (OUTSIDE) | |
| 12 | 215468900102 | ASSY, REINFORCEMENT TOP | |
| 13 | 264168900160 | ASSY. BRACKET (DASHBOARD MTG.) | |
| 16 | 264168900195 | ASSY. GLOVE BOX (GREY) | |
| 19 | 215068908201 | INSTRUMENT PANEL | |
| 21 | NACELLE FRONT | NACELLE FRONT | |
| 22 | NACELLE REAR | NACELLE REAR | |
| 26 | 264168900147 | ASSY. BRACKET LH | |
| 27 | 264168900114 | ASSY. BRACKET RH | |
| 28 | 274768900122 | SET OF NACELLE GRAY) | |
| 29 | 264168906367 | SPEAKER GRILL | |
| 30 | 265168916314 | COVER RADIO CUT OUT | |
| 31 | 264168906357 | COVER CLUTCH FLUID BOTTLE | |
| 31 | 264168906357 | COVER CLUTCH FLUID BOTTLE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
