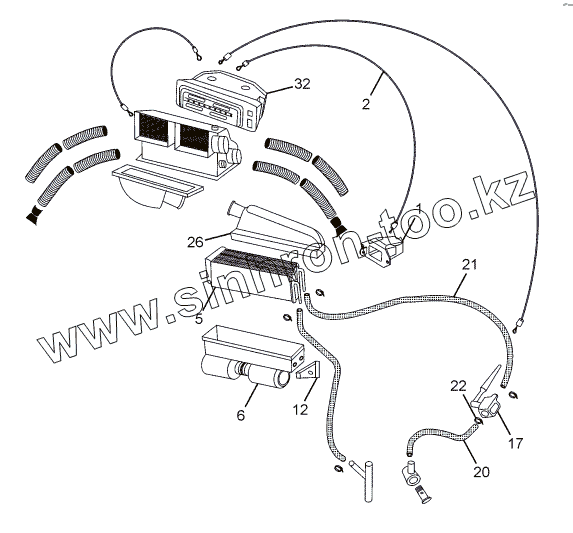

Каталог запасных частей к технике: Tata LPT 613 LHD EURO II. CAB HEATING
1
2
5
6
12
17
20
20
21
22
26
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 265183500119 | 265183500119 | ASSY.BRKT.-LHD [WATER VALVE MTG.] | |
| 264183106334 | 264183106334 | DUCT (HEATER UNIT TO PLENUM) | |
| 264183100138 | 264183100138 | ASSY LEG VENT RH | |
| 264183100137 | 264183100137 | ASSY LEG VENT LH | |
| 265983306338 | 265983306338 | CONTROL KNOB | |
| 265183300132 | 265183300132 | ASSY.CONTROL COVER.- HEATER | |
| 265983306338 | 265983306338 | CONTROL KNOB | |
| 265183300132 | 265183300132 | ASSY.CONTROL COVER.- HEATER | |
| 264754600106 | 264754600106 | WIRING HARNESS BACK LIGHTING | |
| 265454700159 | 265454700159 | BLOWER SWITCH | |
| 265168910118 | 265168910118 | ASSY.CONTROL BRACKET-HTR.(LP-709) | |
| 264183300108 | 264183300108 | ASSY.PUSH PULL CABLE `Z' TYPE | |
| 265483300177 | 265483300177 | HOSE CLAMP-25 | |
| 265483500108 | 265483500108 | ASSY.WATER VALVE | |
| 265483500109 | 265483500109 | ASSY.LEVER (WATER VALVE) | |
| 215083106303 | 215083106303 | HOSE (VENTILATION) | |
| 265483106362 | 265483106362 | HOSE (LEG ROOM CONNECTOR) | |
| 264183100130 | 264183100130 | ASSY. COIL HOUSING | |
| 270754740101 | 270754740101 | ASSY.TWIN BLOWER WITH MSSL TERS & HSG.24V | |
| 265183400135 | 265183400135 | ASSY.STRIP (TWIN BLOWER MTG.) | |
| 264183500105 | 264183500105 | ASSY. BKT.FOR COIL HSG.MTG. R.H. | |
| 264183500106 | 264183500106 | ASSY. BKT.FOR COIL HSG. MTG. L.H. | |
| 264183100119 | 264183100119 | ASSY.BRACKET (PLENUM MTG.) LH | |
| 215083100103 | 215083100103 | ASSY, PLENUM CHAMBER COMPL. | |
| 264183100120 | 264183100120 | ASSY.BRACKET (PLENUM MTG.) RH | |
| 1 | 265983110124 | ASSY.FRESH AIR VALVE RHD (W/O.ASSY.CABLE) | |
| 2 | 265983300178 | ASSY.PUSH PULL CABLE | |
| 5 | 215483400101 | ASSY. HEATER COIL COMPL. | |
| 6 | 264183106324 | ADAPTOR HOUSING PLENUM CHAMBER. | |
| 12 | 265983300159 | ASSY.PUSH PULL CABLE -BLACK | |
| 17 | 265483106350 | DIFFUSER(LEG ROOM VENTILATION) | |
| 20 | 252520125817 | REDUCER HOSE (THERMOSTAT TO WATER PUMP) | |
| 20 | 215083505805 | RUBBER HOSE (WATER VALVE TO ENGINE) . | |
| 21 | 215083505806 | RUBBER HOSE HEATING COIL TO WATER VALVE) | |
| 22 | 215083505804 | RUBBER HOSE (HEATING COIL TO ENGINE) . | |
| 26 | 215083106308 | COVER (HEATER UNIT) LHD | |
| 32 | 265168900152 | ASSY. VENTILATION NOZZLE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
