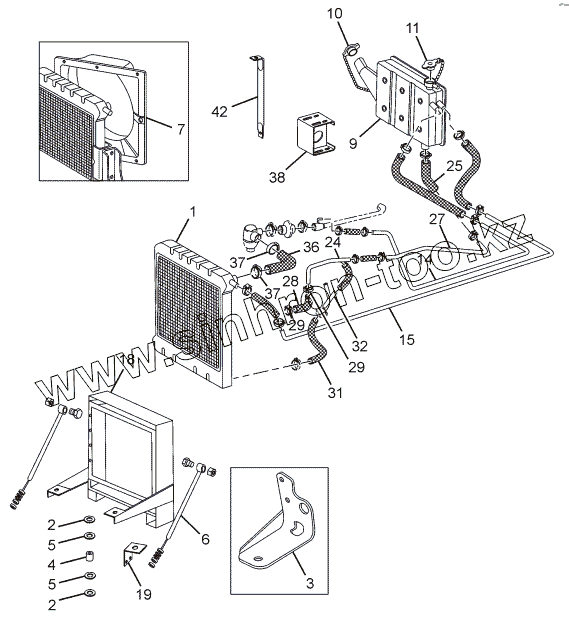

Каталог запасных частей к технике: Tata LPT 613 Euro-III. RADIATOR AND FITMENTS
1
2
2
3
3
4
5
5
6
7
9
10
11
14
15
18
19
19
24
25
27
28
29
29
31
32
36
37
37
38
42
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 278650109908 | 278650109908 | DRAIN COCK | |
| 252750108225 | 252750108225 | CLAMP REAR (AUX TANK LPT 709) | |
| 252750100216 | 252750100216 | ASSY SUPPORT ( FOR MTG OF AUX. TANK MTG BKT) | |
| 252550005833 | 252550005833 | RADIATOR HOSE (RADIATOR TO WATER PUMP) | |
| 252550005827 | 252550005827 | HOSE (268.6 ID X 100 LONG) | |
| 278614609201 | 278614609201 | WASHER | |
| 278650006302 | 278650006302 | RUBBER BUFFER | |
| 257450006906 | 257450006906 | SPACER TUBE (25.5 LONG) | |
| 278650108303 | 278650108303 | SHIM 3 THK | |
| 278650108302 | 278650108302 | SHIM 2 THK | |
| 278650108301 | 278650108301 | SHIM 1THK | |
| 1 | 278650100283 | ASSY. RADIATOR | |
| 2 | 252550006301 | RUBBER BUFFER | |
| 3 | 252550100301 | ASSY. BRACKET LH (RAD FRAME MTG. ON LM) | |
| 3 | 252550100299 | ASSY. BRACKET RH (RAD FRAME MTG. ON LM) | |
| 4 | 257450006904 | SPACER TUBE ( 35 LONG ) | |
| 5 | 257450009202 | WASHER (47DIA) | |
| 6 | 252550100291 | .ASSY.TIE ROD (RAD.FR.MTG.TOP ON LM) | |
| 7 | 252550506320 | FAN SHROUD | |
| 9 | 252750100249 | SET. ASSY. AUX. TANK & MTGS. | |
| 10 | 252750108242 | ASSY. PRESSURE VALVE CAP (7 PSI) | |
| 11 | 252750108243 | ASSY. PRESSURE VALVE CAP (14 PSI) | |
| 14 | 252550005828 | VENT TUBE (AUX. TANK TO UPPER COOLING WATER LINE) | |
| 15 | 252550005829 | VENT TUBE ( AUX. TANK TO RADIATOR ) | |
| 18 | 252550000187 | ASSY.RADIATOR FRAME WITH TOP IC MTG BRACKET | |
| 19 | 252550103303 | BRACKET RH (TIE ROD MOUNTING ON LONG MEMBER) | |
| 19 | 252550103302 | BRACKET LH (TIE ROD MOUNTING ON LONG MEMBER) | |
| 24 | 252550106935 | WATER FILL PIPE-II (AUX. TANK TO RAD) | |
| 25 | 252550005825 | RUBBER HOSE , TANK TO TUBE TO RADIATOR | |
| 27 | 252550106938 | WATER FILL PIPE-II (AUX. TANK TO RAD) | |
| 28 | 14280500454 | HOSE CLAMP (45 DIA.) | |
| 29 | 252550005826 | HOSE (L = 115 MM) | |
| 31 | 252550005832 | RADIATOR HOSE (RADIATOR TO WATER PUMP) | |
| 32 | 252550100292 | CONNECTOR (RADIATOR TO WATER PUMP) | |
| 36 | 252550005831 | Z HOSE (THERMOSTAT TO RADIATOR) | |
| 37 | 14280599302 | HOSE CLAMP TB 36 | |
| 38 | 252550100345 | ASSY SUPPORT ( AUX. TANK MTG) | |
| 42 | 252750100214 | CLAMP FRONT (AUX. TANK) |
