Каталог запасных частей к технике: Tata LPT 613 Euro-III. INJECTOR

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW DAF DongFeng FAW Foton HOWO Hyundai IVECO JAC Motors LGMG MAN Shaanxi SITRAK Studebaker Tata Volvo Автокомпонент Плюс БелАЗ Брянский Арсенал ГАЗ ЗИЛ КАЗ Камский автозавод КрАЗ Мадара МАЗ МЗКТ МоАЗ Нефтекамский автозавод Ставропольский Завод АвтоПрицепов ТАТРА Тонар УралАЗ ЧМЗАП

Модель Не выбрано LP/LPT 613 LHD (2006) LPT 1618 TC/52 (2009) LPT 613 Euro-III (2009) LPT 613 LHD EURO II (2009) LPT 613/34 WB Euro III (2009) SFC 407 LHD Euro II (2009)

Схема > Не выбрано COWL CHASSIS TYPE: 381226 COWL CHASSIS TYPE: 381313 CENTRE FLAP WINDSHIELD GLASS CHASSIS TYPE: 381226 WINDSHIELD GLASS CHASSIS TYPE: 381313 DASHBOARD FLOOR MAT LINING CHASSIS TYPE: 381313 LOAD BODY CHASSIS TYPE: 381313 DOOR (LPT 613) CHASSIS TYPE: 381313 DOOR LOCK CHASSIS TYPE: 381226 DOOR LOCK CHASSIS TYPE: 381313 WINDOW REGULATOR AND GLASS CHASSIS TYPE: 381313 INTERNAL AND EXTERNAL FITMENTS CHASSIS TYPE: 381226 INTERNAL AND EXTERNAL FITMENTS CHASSIS TYPE: 381313 WIPER MOTOR AND LINKAGES CAB HEATING CHASSIS TYPE: 381226 CAB HEATING CHASSIS TYPE: 381313 BUMPER CHASSIS TYPE: 381226 BUMPER CHASSIS TYPE: 381313 CAB MOUNTING (FRONT) CHASSIS TYPE: 381313 CAB MOUNTING (REAR) CHASSIS TYPE: 381313 MUDGUARD AND MUDFLAP CHASSIS TYPE: 381313 COWL MOUNTING CHASSIS TYPE: 381226 SEAT AND SEAT BELTS CHASSIS TYPE: 381226 SEAT AND SEAT BELTS CHASSIS TYPE: 381313 ENGINE HALF BLOCK AND LONG BLOCK ENGINE OVERHAULING GASKET KIT CYLINDER BLOCK CYLINDER HEAD AND COVER MOVING PARTS ENGINE TIMING (CAMSHAFT AND COMPONENTS) INJECTION TIMER FUEL INJECTION EQUIPMENT INJECTOR FLAME START FUEL FEED AND LEAKAGE LINE FUEL FILTER AIR FILTER CHASSIS TYPE: 381226 AIR FILTER CHASSIS TYPE: 381313 AIR COMPRESSOR 94 DIA AIR COMPRESSOR HEAD (REED VALVE TYPE) 94 DIA EXHAUST MANIFOLD AND TURBOCHARGER INTERCOOLER AND CONNECTIONS ALTERNATOR AND STARTER OIL PUMP ASSY. OIL FILTER OIL COOLER (PLATE TYPE) PISTON COOLING OIL PIPING FOR TURBOCHARGER WATER PUMP ENGINE SUSPENSION CLUTCH (310MM DIA) FUEL SYSTEM EXHAUST SYSTEM RADIATOR AND FITMENTS GEARBOX HOUSING CHASSIS TYPE: 381226 GEARBOX HOUSING CHASSIS TYPE: 381313 GEAR SHAFT AND GEAR GEAR SHIFT LINKAGE CHASSIS TYPE: 381226 GEAR SHIFT LINKAGE CHASSIS TYPE: 381313 CLUTCH AND BRAKE CONTROL CLUTCH PIPE LINES ACCELERATOR CONTROL FRAME CHASSIS TYPE: 381226 FRAME CHASSIS TYPE: 381313 FRONT SPRING CHASSIS TYPE: 381226 FRONT SPRING CHASSIS TYPE: 381313 FRONT SHOCK ABSORBER REAR SPRING REAR SHOCK ABSORBER FRONT ANTI ROLL BAR CHASSIS TYPE: 381226 REAR ANTI ROLL BAR CHASSIS TYPE: 381226 FRONT AXLE REAR AXLE SPARE WHEEL CARRIER PROPELLER SHAFT FRONT WHEEL BRAKE (S-CAM) (ABS) REAR WHEEL BRAKE (S-CAM) (ABS) AIR LINES AIR DRIER WITH TYRE INFLATOR DUAL BRAKE VALVE FRONT BRAKE CHAMBER FRONT AND REAR SLACK ADJUSTER REAR BRAKE ACTUATOR GRADUATED HAND BRAKE VALVE QUADRUPLE SYSTEM PROTECTION VALVE AIR CYLINDER WITH MAGNETIC VALVE STEERING LINKAGE CHASSIS TYPE: 381226 STEERING LINKAGE CHASSIS TYPE: 381313 POWER STEERING PIPE LINES POWER STEERING COMPONENTS POWER STEERING PUMP (ZF) POWER STEERING GEARBOX (ZF) POWER STEERING HYDRAULIC TANK (ZF) LIGHT AND SIGNAL-1 CHASSIS TYPE: 381226 LIGHT AND SIGNAL-1 CHASSIS TYPE: 381313 LIGHT AND SIGNAL-2 CHASSIS TYPE: 381226 LIGHT AND SIGNAL-2 CHASSIS TYPE: 381313 INSTRUMENT CLUSTER CHASSIS TYPE: 381226 INSTRUMENT CLUSTER CHASSIS TYPE: 381313

1

2

3

4

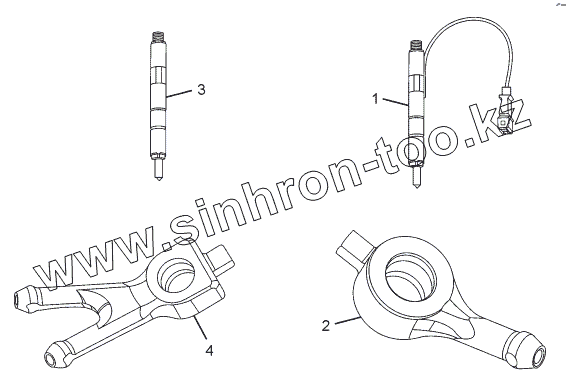

Позиция на иллюстрации	Заводской номер детали		Название детали
252501169903	252501169903		NOZZLE 697 EURO III NBFI TYPE MICO
253401169915	253401169915		NOZZLE HOLDER 4SP/497 BS-III(NBFE INJECR
252501169902	252501169902		NOZZLE 697 EURO III NORMAL INJ.TYPE MICO
253401169913	253401169913		NOZZLE HOLDER NORMAL 4SP/497 NORMAL INJ.
252701169203	252701169203		SEALING WASHER
252707144203	252707144203		WASHER
252701163202	252701163202		BANJO BOLT
1	252501160128		ASSY.INJECTOR NBEF TYPE 697 E III MICO
2	252701163807		CONNECTOR ONE TUBE(MIM)
3	252501160127		ASSY.INJECTOR NORMAL 697 EURO III MICO
4	252701163808		CONNECTOR TWO TUBES(MIM)

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
