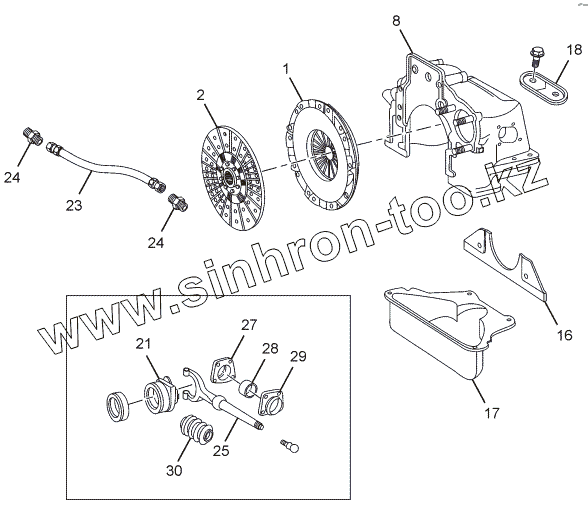

Каталог запасных частей к технике: Tata LPT 613 Euro-III. CLUTCH (310MM DIA)
1
2
8
16
17
18
21
23
24
24
25
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 253425105301 | 253425105301 | GASKET (INSPECTION WINDOW) CLUTCH 240 DIA. CL.DISC & PR.PLATE (CEEKAY) CONSISTS OF : | |
| FACING RIVET | FACING RIVET | FACING RIVET | |
| FACING RIVET | FACING RIVET | FACING RIVET | |
| CLUTCH FACINGS (310 DIA.) | CLUTCH FACINGS (310 DIA.) | CLUTCH FACINGS (310 DIA.) | |
| 276325200113 | 276325200113 | KIT FOR CLUTCH DISC CONSISTING OF : | |
| RIVET (COVER) | RIVET (COVER) | RIVET (COVER) | |
| RIVET (PRESSURE PLATE) | RIVET (PRESSURE PLATE) | RIVET (PRESSURE PLATE) | |
| STRAP | STRAP | STRAP | |
| 276325400115 | 276325400115 | KIT FOR STRAP AND RIVETS CONSISTING OF : | |
| DIAPHRAGM RIVETS | DIAPHRAGM RIVETS | DIAPHRAGM RIVETS | |
| DIAPHRAGM SPRING | DIAPHRAGM SPRING | DIAPHRAGM SPRING | |
| DIAPHRAGM PLATE | DIAPHRAGM PLATE | DIAPHRAGM PLATE | |
| FULCRUM PLATE | FULCRUM PLATE | FULCRUM PLATE | |
| CLUTCH COVER HOUSING | CLUTCH COVER HOUSING | CLUTCH COVER HOUSING | |
| COVER PLATE | COVER PLATE | COVER PLATE | |
| 276325400114 | 276325400114 | COVER DIAPHRAGM SUB ASSY. CONSISTING OF : | |
| 252325106701 | 252325106701 | PIN | |
| 253425108214 | 253425108214 | COVER (FOR INSPECTION WINDOW) | |
| 3029910015 | 3029910015 | BALL PIN | |
| 257525600104 | 257525600104 | ASSY. COVER | |
| 1 | 276325400105 | ASSY. COVER PLATE 310 DIA. (REINFORCED) | |
| 2 | 276325200105 | DRIVEN PLATE ASSY. 310 DIA.(REINFORCED) | |
| 8 | 252525103740 | CLUTCH HOUSING (310 DIA BS-III) | |
| 16 | 252325108203 | PROTECTIVE COVER (CLUTCH HOUSING FRONT) | |
| 17 | 252525108201 | CLUTCH HOUSING LOWER PART | |
| 18 | 0422510004J | CLUTCH COVER HOUSING UPPER | |
| 21 | 272425600151 | CLUTCH RELEASE BEARING WITH SLEEVE | |
| 23 | 257525600121 | ASSY. HOSE | |
| 24 | 257625606801 | DOUBLE SOCKET | |
| 25 | 272425605106 | CLUTCH RELEASE FORK | |
| 27 | 272425608201 | BRACKET INSIDE | |
| 28 | 272425600103 | OUTER RACE | |
| 29 | 272425600102 | ASSY. BRACKET OUTSIDE | |
| 30 | 3522540097 | RUBBER BELLOW |
