Каталог запасных частей к технике: Tata LPT 613/34 WB Euro III. MUDGUARD AND MUDFLAP

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW DAF DongFeng FAW Foton HOWO Hyundai IVECO JAC Motors LGMG MAN Shaanxi SITRAK Studebaker Tata Volvo Автокомпонент Плюс БелАЗ Брянский Арсенал ГАЗ ЗИЛ КАЗ Камский автозавод КрАЗ Мадара МАЗ МЗКТ МоАЗ Нефтекамский автозавод Ставропольский Завод АвтоПрицепов ТАТРА Тонар УралАЗ ЧМЗАП

Модель Не выбрано LP/LPT 613 LHD (2006) LPT 1618 TC/52 (2009) LPT 613 Euro-III (2009) LPT 613 LHD EURO II (2009) LPT 613/34 WB Euro III (2009) SFC 407 LHD Euro II (2009)

Схема > Не выбрано CAB/COWL CENTER FLAP WINDSHIELD GLASS DASHBOARD FLOOR MAT, LINING DOOR (LPT 613) DOOR LOCK WINDING REGULATOR AND GLASS INTERNAL AND EXTERNAL FITMENTS WIPER MOTOR AND LINKAGES CAB HEATING BUMPER CAB MOUNTING (FRONT) CAB MOUNTING (REAR) MUDGUARD AND MUDFLAP SEAT AND SEAT BELTS ENGINE HALF BLOCK AND LONG BLOCK ENGINE OVERHAULING GASKET KIT CYLINDER BLOCK CYLINDER HEAD AND COVER MOVING PARTS ENGINE TIMING (CAMSHAFT AND COMPONENTS) INJECTION TIMER FUEL INJECTION EQUIPMENT CHASSIS TYPE: 381313 FUEL INJECTION EQUIPMENT (EURO III) CHASSIS TYPE: 381313 INJECTOR FLAME START FUEL FEED AND LEAKAGE LINE FUEL FILTER CHASSIS TYPE: 381313 AIR FILTER CHASSIS TYPE: 381313 AIR FILTER CHASSIS TYPE: 381313 AIR COMPRESSOR 94 DIA AIR COMPRESSOR HEAD (REED VALVE TYPE) 94 DIA EXHAUST MANIFOLD AND TURBOCHARGER INTERCOOLER AND CONNECTIONS ALTERNATOR AND STARTER OIL PUMP ASSY. OIL FILTER OIL COOLER (PLATE TYPE) PISTON COOLING OIL PIPING FOR TURBOCHARGER WATER PUMP ENGINE SUSPENSION CLUTCH (310 MM DIA) FUEL SYSTEM EXHAUST SYSTEM RADIATOR AND FITMENTS GEAR BOX HOUSING CHASSIS TYPE: 381313 GEAR SHAFT AND GEAR GEAR SHIFT LINKAGE CHASSIS TYPE: 381313 GEAR SHIFT LINKAGE CHASSIS TYPE: 381313 GEAR BOX HOUSING CHASSIS TYPE: 381313 CLUTCH AND BRAKE CONTROLS CLUTCH PIPE LINES ACCELERATOR CONTROL FRAME FRONT SPRING FRONT SHOCK ABSORBER REAR SPRING REAR SHOCK ABSORBER FRONT AXLE REAR AXLE SPARE WHEEL CARRIER PROPELLER SHAFT FRONT WHEEL BRAKE S-CAM (ABS) REAR WHEEL BRAKE S-CAM (ABS) AIR LINES AIR DRIER WITH TYRE INFLATOR DUAL BRAKE VALVE FRONT BRAKE CHAMBER FRONT AND REAR SLACK ADJUSTER REAR BRAKE ACTUATOR GRADUATED HAND BRAKE VALVE QUADRUPLE SYSTEM PROTECTION VALVE AIR CYLINDER WITH MAGNETIC VALVE AXIAL PISTON PUMP (MK II) CHASSIS TYPE: 381313 STEERING LINKAGE POWER STEERING PIPELINES POWER STEERING COMPONENTS POWER STEERING PUMP POWER STEERING GEAR BOX (ZF) POWER STEERING HYDRAULIC TANK (ZF) LIGHT AND SIGNAL-1 CHASSIS TYPE: 381313 LIGHT AND SIGNAL-1 CHASSIS TYPE: 381313 LIGHT AND SIGNAL SYSTEM-2 CHASSIS TYPE: 381313 LIGHT AND SIGNAL SYSTEM-2 CHASSIS TYPE: 381313 INSTRUMENT CLUSTER CHASSIS TYPE: 381313 INSTRUMENT CLUSTER CHASSIS TYPE: 381313

41

41

42

42

45

47

47

49

49

50

50

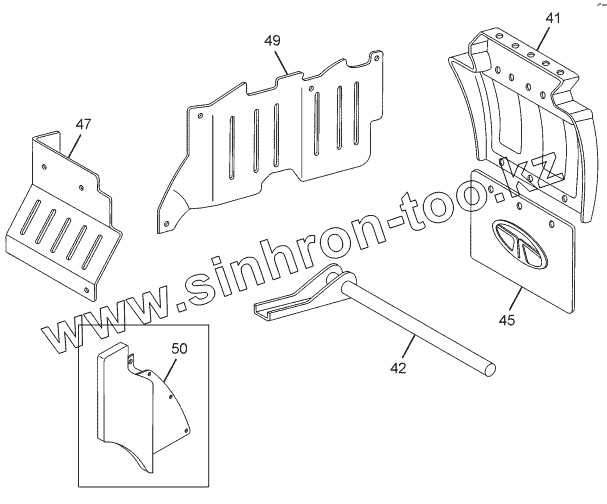

Позиция на иллюстрации	Заводской номер детали		Название детали
264189108257	264189108257		CLAMP REAR MUDGUARD MOUNTING
264189106307	264189106307		SEALING (REAR MUDGUARD)
41	264189106305		MUD GUARD LH
41	264189106306		MUD GUARD RH
42	264189100165		ASSY. SUPPORT (BOTTOM) LH
42	264189100166		ASSY. SUPPORT (BOTTOM) RH
45	264081100102		ASSY. MUD FLAP REAR
47	264189110123		ASSY.MUDFLAP FRONT INNER LH
47	264189110124		ASSY.MUDFLAP FRONT INNER RH
49	274789100171		ASSY.MUDFLAP FRONT OUTER-LH
49	274789100172		ASSY.MUDFLAP FRONT OUTER-RH
50	264189110170		ASSY.MUDFLAP MIDDLE INNER W/EXTN.COMP-LH
50	264189110171		ASSY.MUDFLAP MIDDLE INNER W/EXTN.COMP-RH
