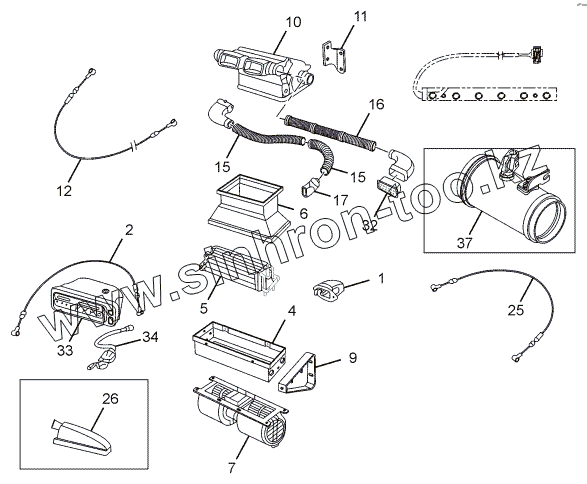

Каталог запасных частей к технике: Tata LPT 613/34 WB Euro III. CAB HEATING
1
2
4
5
6
7
9
9
10
11
11
12
15
15
16
17
25
26
32
33
34
37
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 265483300177 | 265483300177 | HOSE CLAMP-25 | |
| 264754620136 | 264754620136 | WIRING HARNESS BACK LIGHTING | |
| 265983306338 | 265983306338 | CONTROL KNOB | |
| 265183400135 | 265183400135 | ASSY.STRIP (TWIN BLOWER MTG.) | |
| 1 | 265983110124 | ASSY.FRESH AIR VALVE RHD (W/O.ASSY.CABLE) | |
| 2 | 265983300178 | ASSY.PUSH PULL CABLE | |
| 4 | 264183100130 | ASSY. COIL HOUSING | |
| 5 | 215483400101 | ASSY. HEATER COIL COMPL. | |
| 6 | 264183106324 | ADAPTOR HOUSING PLENUM CHAMBER. | |
| 7 | 270754740101 | ASSY.TWIN BLOWER WITH MSSL TERS & HSG.24V | |
| 9 | 264183500105 | ASSY. BKT.FOR COIL HSG.MTG. R.H. | |
| 9 | 264183500106 | ASSY. BKT.FOR COIL HSG. MTG. L.H. | |
| 10 | 265183100111 | ASSY.PLENUM CHAMBER COMPLETE -RHD | |
| 11 | 264183100120 | ASSY.BRACKET (PLENUM MTG.) RH | |
| 11 | 264183100119 | ASSY.BRACKET (PLENUM MTG.) LH | |
| 12 | 265983300159 | ASSY.PUSH PULL CABLE -BLACK | |
| 15 | 265483106362 | HOSE (LEG ROOM CONNECTOR) | |
| 16 | 265483106322 | HOSE [VENTILATION] | |
| 17 | 265483106350 | DIFFUSER(LEG ROOM VENTILATION) | |
| 25 | 264183300108 | ASSY.PUSH PULL CABLE `Z' TYPE | |
| 26 | 265183306307 | CONTROL COVER (LP-709) HTR | |
| 32 | 265168900152 | ASSY. VENTILATION NOZZLE | |
| 33 | 264168910125 | ASSY.CONTROL BRKT.COMPLT-HTR | |
| 34 | 265454700159 | BLOWER SWITCH | |
| 37 | 264183100137 | ASSY LEG VENT LH | |
| 37 | 264183100138 | ASSY LEG VENT RH |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
