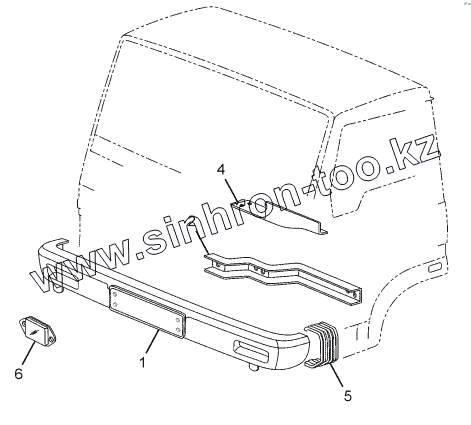

Каталог запасных частей к технике: Tata LPT 613/34 WB Euro III. BUMPER

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW DAF DongFeng FAW Foton HOWO Hyundai IVECO JAC Motors LGMG MAN Shaanxi SITRAK Studebaker Tata Volvo Автокомпонент Плюс БелАЗ Брянский Арсенал ГАЗ ЗИЛ КАЗ Камский автозавод КрАЗ Мадара МАЗ МЗКТ МоАЗ Нефтекамский автозавод Ставропольский Завод АвтоПрицепов ТАТРА Тонар УралАЗ ЧМЗАП

Модель Не выбрано LP/LPT 613 LHD (2006) LPT 1618 TC/52 (2009) LPT 613 Euro-III (2009) LPT 613 LHD EURO II (2009) LPT 613/34 WB Euro III (2009) SFC 407 LHD Euro II (2009)

Схема > Не выбрано CAB/COWL CENTER FLAP WINDSHIELD GLASS DASHBOARD FLOOR MAT, LINING DOOR (LPT 613) DOOR LOCK WINDING REGULATOR AND GLASS INTERNAL AND EXTERNAL FITMENTS WIPER MOTOR AND LINKAGES CAB HEATING BUMPER CAB MOUNTING (FRONT) CAB MOUNTING (REAR) MUDGUARD AND MUDFLAP SEAT AND SEAT BELTS ENGINE HALF BLOCK AND LONG BLOCK ENGINE OVERHAULING GASKET KIT CYLINDER BLOCK CYLINDER HEAD AND COVER MOVING PARTS ENGINE TIMING (CAMSHAFT AND COMPONENTS) INJECTION TIMER FUEL INJECTION EQUIPMENT CHASSIS TYPE: 381313 FUEL INJECTION EQUIPMENT (EURO III) CHASSIS TYPE: 381313 INJECTOR FLAME START FUEL FEED AND LEAKAGE LINE FUEL FILTER CHASSIS TYPE: 381313 AIR FILTER CHASSIS TYPE: 381313 AIR FILTER CHASSIS TYPE: 381313 AIR COMPRESSOR 94 DIA AIR COMPRESSOR HEAD (REED VALVE TYPE) 94 DIA EXHAUST MANIFOLD AND TURBOCHARGER INTERCOOLER AND CONNECTIONS ALTERNATOR AND STARTER OIL PUMP ASSY. OIL FILTER OIL COOLER (PLATE TYPE) PISTON COOLING OIL PIPING FOR TURBOCHARGER WATER PUMP ENGINE SUSPENSION CLUTCH (310 MM DIA) FUEL SYSTEM EXHAUST SYSTEM RADIATOR AND FITMENTS GEAR BOX HOUSING CHASSIS TYPE: 381313 GEAR SHAFT AND GEAR GEAR SHIFT LINKAGE CHASSIS TYPE: 381313 GEAR SHIFT LINKAGE CHASSIS TYPE: 381313 GEAR BOX HOUSING CHASSIS TYPE: 381313 CLUTCH AND BRAKE CONTROLS CLUTCH PIPE LINES ACCELERATOR CONTROL FRAME FRONT SPRING FRONT SHOCK ABSORBER REAR SPRING REAR SHOCK ABSORBER FRONT AXLE REAR AXLE SPARE WHEEL CARRIER PROPELLER SHAFT FRONT WHEEL BRAKE S-CAM (ABS) REAR WHEEL BRAKE S-CAM (ABS) AIR LINES AIR DRIER WITH TYRE INFLATOR DUAL BRAKE VALVE FRONT BRAKE CHAMBER FRONT AND REAR SLACK ADJUSTER REAR BRAKE ACTUATOR GRADUATED HAND BRAKE VALVE QUADRUPLE SYSTEM PROTECTION VALVE AIR CYLINDER WITH MAGNETIC VALVE AXIAL PISTON PUMP (MK II) CHASSIS TYPE: 381313 STEERING LINKAGE POWER STEERING PIPELINES POWER STEERING COMPONENTS POWER STEERING PUMP POWER STEERING GEAR BOX (ZF) POWER STEERING HYDRAULIC TANK (ZF) LIGHT AND SIGNAL-1 CHASSIS TYPE: 381313 LIGHT AND SIGNAL-1 CHASSIS TYPE: 381313 LIGHT AND SIGNAL SYSTEM-2 CHASSIS TYPE: 381313 LIGHT AND SIGNAL SYSTEM-2 CHASSIS TYPE: 381313 INSTRUMENT CLUSTER CHASSIS TYPE: 381313 INSTRUMENT CLUSTER CHASSIS TYPE: 381313

1

2

2

4

4

5

5

6

Позиция на иллюстрации	Заводской номер детали		Название детали
1	264188500115		ASSY. BUMPER COMPLETE
2	264188500101		ASSY. SUPPORT LH (BUMPER MTG.)
2	264188500102		ASSY. SUPPORT RH (BUMPER MTG.)
4	264188500110		ASSY. BRACKET LH (BUMPER MTG.)
4	264188500111		ASSY. BRACKET RH (BUMPER MTG.)
5	264188500118		ASSY. END COVER LH
5	264188500119		ASSY. END COVER RH
6	257354410137		ASSY. REFLEX REFLECTOR

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
