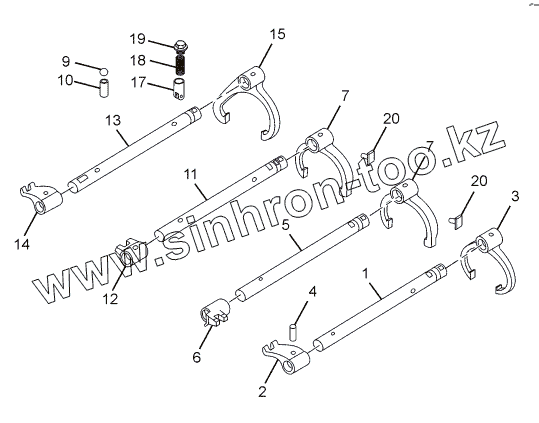

Каталог запасных частей к технике: Tata LPT 1618 TC/52. SHIFTER SHAFT AND FORK
1
2
3
4
4
4
4
5
6
7
7
7
9
10
11
12
13
14
15
17
18
19
20
20
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 269126517907 | SHIFTER SHAFT (5TH / 6TH SPEED) | |
| 2 | 269126515123 | SHIFTER DOG (5TH / 6TH SPEED) | |
| 3 | 269126515120 | SHIFTER FORK (5TH / 6TH SPEED) | |
| 4 | 269126516706 | SPIRAL PIN 8X36 | |
| 4 | 269126516706 | SPIRAL PIN 8X36 | |
| 4 | 269126516706 | SPIRAL PIN 8X36 | |
| 4 | 269126516706 | SPIRAL PIN 8X36 | |
| 5 | 269126517910 | SHIFTER SHAFT (3/4 SPEED) | |
| 6 | 269126515116 | SHIFTER DOG (3RD / 4TH SPEED) | |
| 7 | 269126515125 | SHIFTER FORK (1/2, 3/4 SPEED) | |
| 7 | 269126515125 | SHIFTER FORK (1/2, 3/4 SPEED) | |
| 9 | 15950400177 | BALL 13.49 DIA. | |
| 10 | 269126516703 | INTERLOCK PIN | |
| 11 | 269126517908 | SHIFTER SHAFT (1ST / 2ND SPEED) | |
| 12 | 269126515115 | SHIFTER DOG (1ST / 2ND SPEED) | |
| 13 | 269126517909 | SHIFTER SHAFT (REVERSE) | |
| 14 | 269126515118 | SHIFTER DOG (REVERSE) | |
| 15 | 269126515113 | SHIFTER FORK (REVERSE) | |
| 17 | 269126510120 | ASSY. DETENT | |
| 18 | 269126518703 | COMPRESSION SPRING (DETENT) | |
| 19 | 269126107202 | SEALING PLUG (DETENT) | |
| 20 | 269126519901 | BRASS PAD |
