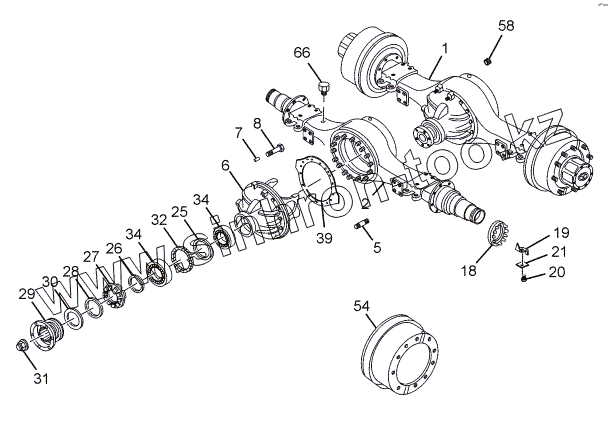

Каталог запасных частей к технике: Tata LPT 1618 TC/52. REAR AXLE RA 109RR

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
5
6
7
8
18
19
20
21
25
26
27
28
29
30
31
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
34
34
34
39
54
58
66
Позиция на иллюстрации Заводской номер детали Название детали
266835108601 266835108601 PRESSURE RING
257635308304 257635308304 SHIM 0.25 MM THICK
11632609649 11632609649 STUD BM 12X80
257635308305 257635308305 SHIM 0.30 MM THICK
257635308306 257635308306 SHIM 0.50 MM THICK
257635308307 257635308307 SHIM 1.00 MM THICK
257635308308 257635308308 SHIM 0.10 MM THICK
257635309902 257635309902 LOCKING WIRE (INNER RACE)
257635309903 257635309903 LOCKING WIRE (OUTER RACE)
257635308303 257635308303 SHIM 0.20 MM THICK
257635308201 257635308201 LOCKING PLATE (TO THREADED RING)
273235307701 273235307701 DUST SEAL
257635308302 257635308302 SHIM 0.15 MM THICK
1 273235000257 ASSY. REAR AXLE RA 109 RR (41/7), 1044 MM, VASS BRAKES
2 273235100175 ASSY. REAR AXLE BEAM WITH PR. RINGS STUDS & DOWELS
5 11632609401 STUD BM 12X40
6 273235110107 ASSY. CARRIER HOUSING
7 13050909209 CYLINDRICAL PIN 10 H 8X20
8 273235113201 BOLT (PLUMMER BLOCK COVER)
18 257635306501 THREADED RING
19 257635308201 LOCKING PLATE (TO THREADED RING)
20 11323996191 HEX. SCREW M 8X12
21 3129941201 LOCKING PLATE
25 257635308601 SPACER (BETWEEN PINION BRG.)
26 273235308601 SPACER (BETWEEN PINION BRG. & FLANGE)
27 257635306503 THREADED RING
28 257335307705 OIL SEAL DOUBLE LIP
29 273235300180 ASSY.COUPLING FLANGE
30 273235308201 DUST COVER (PRESS TYPE)
31 3273530172 HEX. NUT (FORGED)
32 257635308611 SPACER RING 7.60 MM THICK
32 257635308623 SPACER RING 7.76 MM THICK
32 257635308622 SPACER RING 7.38 MM THICK
32 257635308621 SPACER RING 7.40 MM THICK
32 257635308620 SPACER RING 7.42 MM THICK
32 257635308619 SPACER RING 7.44 MM THICK
32 257635308617 SPACER RING 7.48 MM THICK
32 257635308604 SPACER RING 7.74 MM THICK
32 257635308605 SPACER RING 7.72 MM THICK
32 257635308606 SPACER RING 7.70 MM THICK
32 257635308607 SPACER RING 7.68 MM THICK
32 257635308608 SPACER RING 7.66 MM THICK
32 257635308609 SPACER RING 7.64 MM THICK
32 257635308610 SPACER RING 7.62 MM THICK
32 257635308612 SPACER RING 7.58 MM THICK
32 257635308613 SPACER RING 7.56 MM THICK
32 257635308614 SPACER RING 7.54 MM THICK
32 257635308615 SPACER RING 7.52 MM THICK
32 257635308616 SPACER RING 7.50 MM THICK
32 257635308618 SPACER RING 7.46 MM THICK
34 257635303104 CYLINDRICAL ROLLER BEARING
34 257635303102 TAPER ROLLER BEARING (PINION)
39 257635115302 GASKET (CARRIER)
54 263142103701 BRAKE DRUM
58 266335107201 MAGNETIC DRAIN PLUG
66 266835150102 PRESSURE RELIEF VALVE
