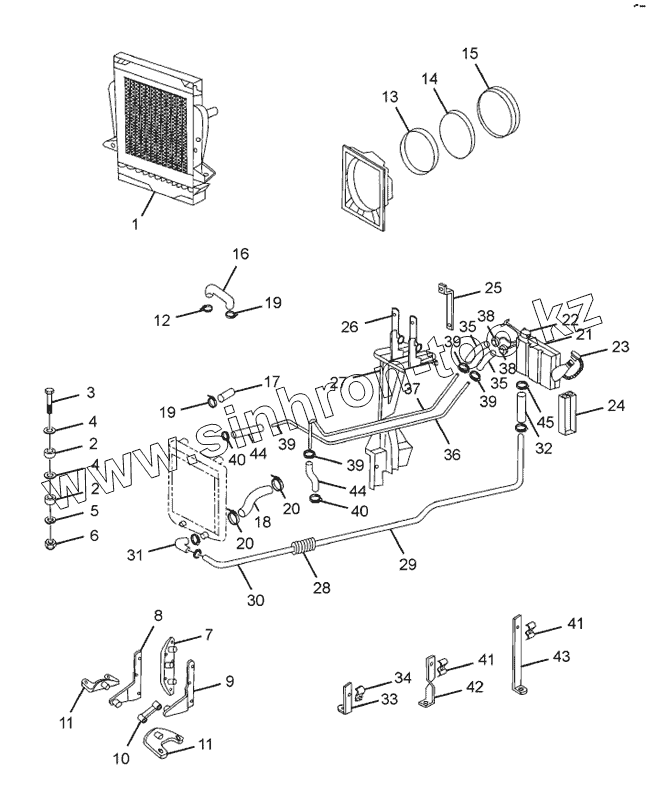

Каталог запасных частей к технике: Tata LPT 1618 TC/52. RADIATOR (TILT CAB)
1
2
2
3
4
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
36
37
38
38
39
39
39
39
40
40
41
41
42
43
44
44
45
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 257450009202 | 257450009202 | WASHER (47DIA) | |
| 257450006904 | 257450006904 | SPACER TUBE ( 35 LONG ) | |
| 1 | 278650100368 | RADIATOR ASSY-TATA TOYO | |
| 2 | 257450006301 | RUBBER BUFFER | |
| 3 | 11063898165 | HEX. BOLT M 16X85 | |
| 4 | 12460501707 | BRIGHT WASHER 17 | |
| 5 | 12520696031 | SPRING WASHER B 16 | |
| 6 | 12051596020 | HEX. NUT M 16 | |
| 7 | 278650000227 | ASSY.BRACKET | |
| 8 | 278650100366 | ASSY.BRACKET-RH.(RAD.FRAME SIDE MTG.) | |
| 9 | 278650100367 | ASSY.BRACKET-LH.(RAD.FRAME SIDE MTG.) | |
| 10 | 278650000250 | ASSY.RUBBER BUSH (RAD.FRAME SIDE MTG.) | |
| 11 | 278650000247 | ASSY.BRACKET(ON LONG MEMBER) | |
| 12 | 278650506373 | FAN SHROUD | |
| 13 | 278650507725 | RUBBER RING(125MM) | |
| 14 | 252550504201 | HOSE CLAMP (610) | |
| 15 | 278620143801 | FAN SHROUD RING | |
| 16 | 278650116951 | PIPE | |
| 17 | 278650105822 | RUBBER HOSE | |
| 18 | 278650105871 | RUBBER HOSE (RADIATOR TO WATER PUMP) | |
| 19 | 14280599302 | HOSE CLAMP TB 36 | |
| 20 | 14280598217 | HOSE CLIP TB 54 | |
| 21 | 278650100339 | ASSY. AUX. WATER TANK(WITH METAL CAP) | |
| 22 | 252750108242 | ASSY. PRESSURE VALVE CAP (7 PSI) | |
| 23 | 252750108243 | ASSY. PRESSURE VALVE CAP (14 PSI) | |
| 24 | 252750109908 | RUBBER STRAP | |
| 25 | 252750100214 | CLAMP FRONT (AUX. TANK) | |
| 26 | 252750108225 | CLAMP REAR (AUX TANK LPT 709) | |
| 27 | 278650010104 | ASSY. BRACKET (AUX. WATER TANK MOUNTING) | |
| 28 | 278650005802 | REDUCER HOSE (BETWEEN WATER FILL PIPE) | |
| 29 | 278650116928 | WATER FILL PIPE (ON AUX.WATER TANK ) | |
| 30 | 278650116929 | WATER FILL PIPE (ON RADIATOR BOTTOM) | |
| 31 | 278650105898 | RUBBER HOSE (WATER FILL PIPE TO RADIATOR BOTTOM) | |
| 32 | 278650105899 | RUBBER HOSE(AUX TANK TO WATER FILL PIPE ) | |
| 33 | 278650100317 | ASSY. BRACKET (FOR WATER FILL PIPE) | |
| 34 | 278650100316 | ASSY. CLAMP (FOR WATER FILL PIPE) | |
| 35 | 278650105890 | RUBBER HOSE (FOR VENTING ON AUX. WATER TANK) | |
| 36 | 278650116962 | VENT TUBE(RAD.TO AUX.TANK) | |
| 37 | 278650116961 | VENT TUBE(ENG.TO AUX.TANK) | |
| 38 | 14280500306 | HOSE CLAMP 30 | |
| 39 | 14280500209 | HOSE CLAMP 20 | |
| 40 | 14270201700 | HOSE CLIP 17 | |
| 41 | 278650100314 | ASSY. CLAMP WITH SLEEVE (FOR VENT TUBE) | |
| 42 | 278650100360 | ASSY. BRACKET (FOR VENT. TUBE CLAMPING) | |
| 43 | 278650100319 | ASSY. BRACKET WITH SLEEVE | |
| 44 | 278650105889 | REDUCER HOSE (FOR ENGINE AND RADIATOR VENTING) | |
| 45 | 14280500454 | HOSE CLAMP (45 DIA.) |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
