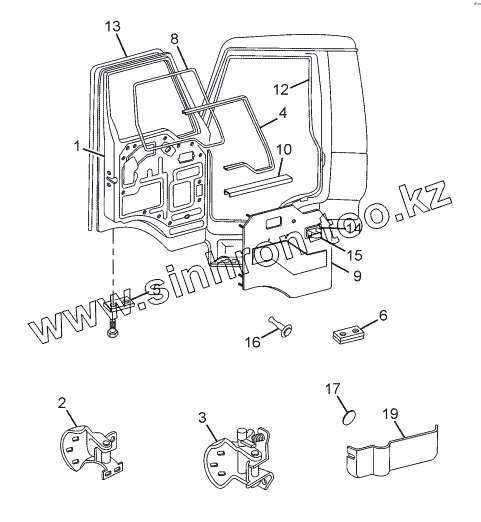

Каталог запасных частей к технике: Tata LPT 1618 TC/52. DOOR (TILT CAB)
1
1
2
2
3
3
4
4
5
6
8
9
9
10
10
12
12
13
13
14
15
16
17
19
19
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 264172300140 | 264172300140 | ASSY. DOOR STRAP FRONT | |
| 265172506316 | 265172506316 | GRAB HANDLE (ON DOOR) | |
| 1 | 274772200105 | ASSY. DOOR SHELL RH | |
| 1 | 264172200142 | ASSY. DOOR SHELL LH | |
| 2 | 264172300112 | ASSY. HINGE TOP RH (DOOR) | |
| 2 | 264172300111 | ASSY. HINGE TOP LH (DOOR) | |
| 3 | 264172300118 | ASSY. HINGE BOTTOM LH (DOOR) | |
| 3 | 264172300119 | ASSY. HINGE BOTTOM RH (DOOR) | |
| 4 | 264172200114 | ASSY. GUIDE CHANNEL RH | |
| 4 | 264172200113 | ASSY. GUIDE CHANNEL LH | |
| 5 | 264172300124 | ASSY. DOVETAIL BOTTOM (DOOR) | |
| 6 | 264172306303 | DOVETAIL BOTTOM (BODY SIDE) | |
| 8 | 264172502501 | VELVET CHANNEL | |
| 9 | 264172700103 | ASSY. PADDING DOOR LH | |
| 9 | 264172700104 | ASSY. PADDING DOOR RH | |
| 10 | 264172500104 | ASSY.WEATHER STRIP LH | |
| 10 | 264172500103 | ASSY.WEATHER STRIP RH | |
| 12 | 264172300122 | ASSY. SEALING MOULD LH (OUTER) | |
| 12 | 264172300123 | ASSY. SEALING MOULD RH (OUTER) | |
| 13 | 264172300137 | ASSY. SEALING INNER LH | |
| 13 | 264172300138 | ASSY. SEALING INNER RH | |
| 14 | 265172506321 | HOUSING(ASH TRAY) | |
| 15 | 265468900189 | ASSY ASH TRAY | |
| 16 | 265472700103 | ASSY. DOOR PAD CLIP | |
| 17 | 267881106305 | REFLEX REFLECTYOR | |
| 19 | 265472706317 | MAGAZINE POCKET (GREY) LH | |
| 19 | 265472706318 | MAGAZINE POCKET (GREY) RH |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
