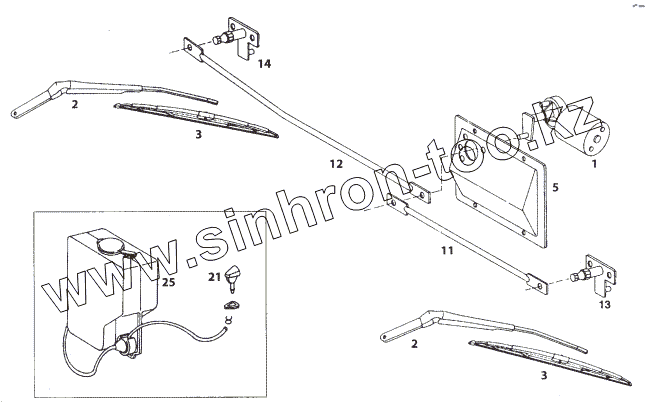

Каталог запасных частей к технике: Tata LP/LPT 613 LHD. WIPER MOTOR AND LINKAGES
1
1
2
2
3
3
3
5
11
12
13
14
21
25
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2641 8240 99 06 | 2641 8240 99 06 | Hex. Screw | |
| 2641 8240 01 38 | 2641 8240 01 38 | Kit for Accessories Wiper (LUCAS) | |
| Consisting of : | Consisting of : | Consisting of : | |
| Tube-1300 Mmlong. | Tube-1300 Mmlong. | Tube-1300 Mmlong. | |
| 2641 8240 01 70 | 2641 8240 01 70 | Kit W/S Washer Unit (LHD), | |
| 2641 8240 01 43 | 2641 8240 01 43 | Kit W/S Washer Unit (LHD), Consisting of | |
| Omega Clip. | Omega Clip. | Omega Clip. | |
| 1 | 2643 8240 01 09 | Wiper Motor With Bkt LHD, 24 V, 17W - Hi - Power | |
| 1 | 2641 8240 99 50 | 17W - Hi - Power Wiper Motor | |
| 2 | 2641 8240 01 10 | Assy. Wiper Arm | |
| 3 | 2780 8240 01 01 | Assy. Wiper Blade | |
| 3 | 2576 8240 01 29 | Assy. Wiper Blade | |
| 5 | 2641 8240 82 01 | Assy. Bracket (Wiper Motor Mtg.) | |
| 11 | Assy.Link (183) | Assy.Link (183) | |
| 12 | Assy Link [792] | Assy Link [792] | |
| 13 | Assy Wheel Box [58.13 Mm] | Assy Wheel Box [58.13 Mm] | |
| 14 | Assy.Wheel Box ( C0-Driver - 45) | Assy.Wheel Box ( C0-Driver - 45) | |
| 21 | Assy.Twin Jet Nozzle | Assy.Twin Jet Nozzle | |
| 25 | Tank | Tank |
