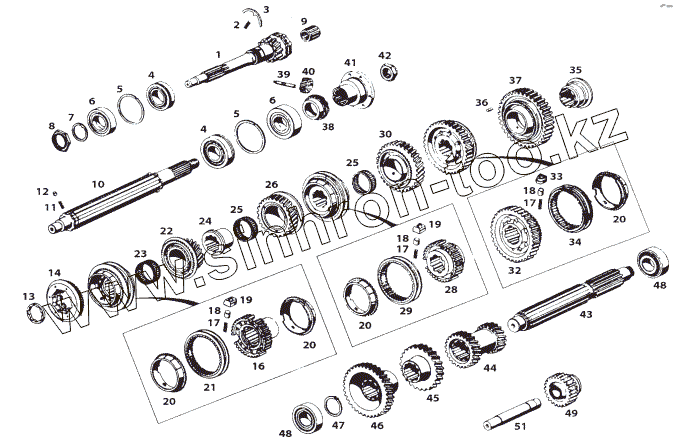

Каталог запасных частей к технике: Tata LP/LPT 613 LHD. GEAR SHAFT AND GEAR

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
4
5
5
5
5
5
5
5
6
6
7
8
9
10
11
12
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
13
14
16
17
17
17
18
18
18
18
19
19
20
20
20
20
20
20
21
22
23
24
24
25
25
25
26
28
29
30
32
33
34
35
35
35
35
35
35
35
35
36
37
38
39
40
41
42
43
43
44
45
46
47
48
48
49
51
Позиция на иллюстрации Заводской номер детали Название детали
2505 2635 34 01 2505 2635 34 01 Bush (Reverse Idler Gear)
8854 2604 16 12 8854 2604 16 12 Synchro Kit GBS 40 Consisting of :
1 2505 2625 79 04 Drive Shaft (6.34)
2 321 993 12 01 Compression Spring
3 321 262 00 73 Clamping Plate
4 000 981 12 01 Cylindrical Roller Bearing
5 2505 2620 43 03 Snap Ring 2.73 mm Thick
5 2505 2620 43 02 Snap Ring 2.68 mm Thick
5 2505 2620 43 07 Snap Ring 2.93 mm Thick
5 2505 2620 43 05 Snap Ring 2.83 mm Thick
5 2505 2620 43 04 Snap Ring 2.78 mm Thick
5 2505 2620 43 06 Snap Ring 2.88 mm Thick
6 2505 2620 31 06 Four Point Ball Bearing
7 2507 2625 86 01 Spacer on Drive Shaft
8 312 262 11 72 Lock Nut LH Thread
9 2505 2620 31 18 Roller Cage (31mm Long)
10 2505 2620 79 03 Main Shaft (w/o groove)
11 312 993 17 01 Pressure Spring
12 321 262 03 74 Pin on Main Shaft
13 321 262 29 62 Butting Ring 7.55 mm Thick
13 321 262 06 62 Butting Ring 7.60 mm Thick
13 321 262 30 62 Butting Ring 7.65 mm Thick
13 321 262 07 62 Butting Ring 7.70 mm Thick
13 2505 2620 86 13 Butting Ring 7.75 mm Thick
13 2505 2620 86 11 Butting Ring 7.25 mm Thick
13 321 262 25 62 Butting Ring 7.80 mm Thick
13 2505 2620 86 14 Butting Ring 7.85 mm Thick
13 321 262 26 62 Butting Ring 7.90 mm Thick
13 2505 2620 86 15 Butting Ring 7.95 mm Thick
13 321 262 27 62 Butting Ring 8.00 mm Thick
13 321 262 05 62 Butting Ring 7.50 mm Thick
13 321 262 28 62 Butting Ring 7.45 mm Thick
13 321 262 04 62 Butting Ring 7.40 mm Thick
13 2505 2620 86 12 Butting Ring 7.35 mm Thick
13 321 262 17 62 Butting Ring 7.30 mm Thick
13 321 262 18 62 Butting Ring 7.20 mm Thick
13 2505 2620 86 10 Butting Ring 7.15 mm Thick
13 321 262 19 62 Butting Ring 7.10 mm Thick
13 2505 2620 86 09 Butting Ring 7.05 mm Thick
13 321 262 20 62 Butting Ring 7.00 mm Thick
13 2505 2620 86 08 Butting Ring 6.95 mm Thick
13 321 262 21 62 Butting Ring 6.90 mm Thick
14 322 262 01 34 Synchronising Ring
16 2505 3015 54 03 Synchronising Sleeve 4th & 5th
17 Comp. Spring Comp. Spring
18 Retention Pin 1st Retention Pin 1st
18 Retention Pin 4/5, 2/3 Retention Pin 4/5, 2/3
19 Carrier 4/5 & 2/3 Carrier 4/5 & 2/3
20 2505 2620 38 02 Synchronising Cone
20 2505 2620 38 02 Synchronising Cone
20 2505 2620 38 02 Synchronising Cone
21 321 262 08 23 Shifting Sleeve
22 2505 2620 01 35 Assy. Helical Gear 4th Speed
23 2505 2620 31 23 Double Row Needle Cage
24 322 262 40 50 Collar Bushing 44.5 mm Long (For Third Speed Gear)
24 322 262 41 50 Collar Bushing 44.6 mm Long (For Third Speed Gear)
25 2505 2620 31 24 Double Row Roller Cage
25 2505 2620 31 24 Double Row Roller Cage
26 2505 2620 01 18 Assy. Helical Gear 3rd Speed
28 322 262 04 35 Synchronising Sleeve 2/3
29 321 262 08 23 Shifting Sleeve
30 322 262 01 12 Helical Gear 2nd Speed
32 322 263 03 33 Reverse Gear on Main Shaft
33 Carrier 1st Carrier 1st
34 321 262 07 23 Shifter Sleeve 1st Speed
35 2505 3015 34 06 Collar Bushing 47.7 mm Long
35 2505 3015 34 01 Collar Bushing 47.2 mm Long
35 2505 3015 34 02 Collar Bushing 47.3 mm Long
35 2505 3015 34 03 Collar Bushing 47.4 mm Long
35 2505 3015 34 04 Collar Bushing 47.5 mm Long
35 2505 3015 34 05 Collar Bushing 47.6 mm Long
35 2505 3015 34 07 Collar Bushing 47.8 mm Long
35 2505 3015 34 08 Collar Bushing 47.9 mm Long
36 2505 2620 30 01 Cylindrical Roller 4x8
37 2505 3015 54 01 Gear Wheel 1st Speed
38 352 264 01 30 Gear Speedometer Drive
39 2505 2620 79 02 Shaft (Speedo Drive)
40 352 264 01 30 Gear Speedometer Drive
41 322 262 00 45 Coupling Flange (8 Holes)
42 322 262 00 72 Hex. Nut
43 2505 2630 79 01 Counter Shaft (W/o PTO Provision)
43 2505 3014 79 01 Counter Shaft (With PTO Provision)
44 2505 2630 54 02 Twin Gear (Counter Shaft) (2/3)
45 2505 2630 54 01 4th Gear (On Counter Shaft)
46 2505 2630 54 07 Constant Mesh Gear (On Counter Shaft) (6.34)
47 1455 069905 3 Circlip A 52x2.5
48 2505 2630 31 04 Taper Roller Bearing
49 2505 2635 01 02 Reverse Idler Gear with Bush
51 2505 3017 79 01 Reverse Idler Gear Shaft
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
