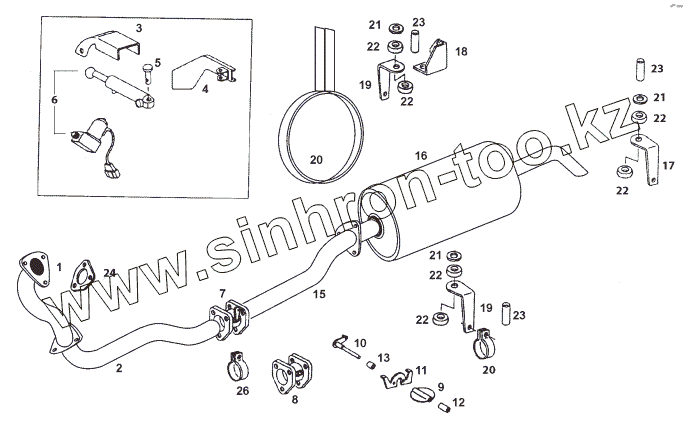

Каталог запасных частей к технике: Tata LP/LPT 613 LHD. EXHAUST SYSTEM
1
2
3
4
5
6
6
7
8
9
10
11
12
13
15
16
18
19
19
19
20
20
21
21
21
21
22
22
22
22
22
22
22
23
23
23
23
24
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2643 4920 01 17 | Intermidiate Pipe (After Turbo Charger) | |
| 2 | 2643 4920 01 42 | Assy. Exhaust Pipe Front | |
| 3 | 2643 4920 01 22 | Assy. Heat Shield | |
| 4 | 2089 4920 01 02 | Assy. Bracket | |
| 5 | 2754 4920 67 01 | Pin | |
| 6 | 2641 5420 99 38 | Air Cylinder With Magnetic Valve, 12 V | |
| 6 | 2770 5424 99 04 | Assy. Magnetic Valve 24 V (Exhaust Brake) | |
| 7 | 2754 4920 01 37 | Assy. Exhaust Brake Unit | |
| 8 | 2754 4920 01 38 | Assy. Intermediate Flange | |
| 9 | 2754 4920 37 04 | Throttle Valve | |
| 10 | 2754 4920 01 39 | Assy. Shaft (Throttle Valve) | |
| 11 | 2754 4920 82 09 | Stopper Plate | |
| 12 | 352 144 12 50 | Bush | |
| 13 | 352 144 13 50 | Bush | |
| 15 | 2643 4920 01 43 | Exhaust Pipe (Intermediate) | |
| 16 | 2643 4910 01 02 | Assy. Silencer With Tail Pipe | |
| 18 | 2641 4920 82 13 | Bracket (RH) | |
| 19 | 2643 4920 33 05 | Bracket | |
| 19 | 2643 4920 33 04 | Bracket | |
| 20 | 2643 4920 42 01 | Clamp | |
| 21 | 2576 4900 92 02 | Washer | |
| 21 | 2576 4900 92 02 | Washer | |
| 22 | 2576 4900 75 02 | Rubber Buffer | |
| 22 | 2576 4900 75 02 | Rubber Buffer | |
| 23 | 2576 4900 69 02 | Tube | |
| 23 | 2576 4900 69 02 | Tube | |
| 24 | 2576 4920 53 02 | Gasket |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
