Каталог запасных частей к технике: Tata LP/LPT 613 LHD. AIR CYLINDER WITH MAGNETIC VALVE

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW DAF DongFeng FAW Foton HOWO Hyundai IVECO JAC Motors LGMG MAN Shaanxi SITRAK Studebaker Tata Volvo Автокомпонент Плюс БелАЗ Брянский Арсенал ГАЗ ЗИЛ КАЗ Камский автозавод КрАЗ Мадара МАЗ МЗКТ МоАЗ Нефтекамский автозавод Ставропольский Завод АвтоПрицепов ТАТРА Тонар УралАЗ ЧМЗАП

Модель Не выбрано LP/LPT 613 LHD (2006) LPT 1618 TC/52 (2009) LPT 613 Euro-III (2009) LPT 613 LHD EURO II (2009) LPT 613/34 WB Euro III (2009) SFC 407 LHD Euro II (2009)

Схема > Не выбрано ENGINE HALF BLOCK AND LONG BLOCK ENGINE OVERHAULING GASKET KIT CYLINDER BLOCK CYLINDER HEAD AND COVER MOVING PARTS ENGINE TIMING (CAMSHAFT & COMPONENTS) INJECTION TIMER FUEL INJECTION EQUIPMENT (EURO II) INJECTOR FUEL FEED AND LEAKAGE LINE (EURO II) FUEL FILTER AIR FILTER (EURO II) AIR COMPRESSOR 94 DIA AIR COMPRESSOR HEAD (REED VALVE TYPE) 94 DIA EXHAUST MANIFOLD AND TURBOCHARGER INTERCOOLER AND CONNECTIONS ALTERNATOR AND STARTER OIL PUMP ASSY. OIL FILTER OIL COOLER (PLATE T YPE) PISTON COOLING WATER PUMP ENGINE SUSPENSION CLUTCH 310 MM DIA GEAR BOX HOUSING GEAR SHAFT AND GEAR GEAR SHIFT LINKAGE CLUTCH AND BRAKE CONTROLS CLUTCH PIPE LINES ACCELERATOR CONTROL FRAME FRONT SPRING FRONT SHOCK ABSORBER FRONT ANTI-ROLL BAR (LP 613) REAR SPRING (For LPT 613) REAR SHOCK ABSORBER REAR ANTI - ROLL BAR FRONT AXLE REAR AXLE SPARE WHEEL CARRIER PROPELLER SHAFT FRONT WHEEL BRAKE (S-CAM) ABS REAR WHEEL BRAKE (S-CAM) AIR LINES AIR DRIER WITH TYRE INFLATOR DUAL BRAKE VALVE FRONT BRAKE CHAMBER FRONT AND REAR SLACK ADJUSTER REAR BRAKE ACTUATOR GRADUATED HAND BRAKE VALVE QUADRUPLE SYSTEM PROTECTION VALVE AIR CYLINDER WITH MAGNETIC VALVE STEERING LINKAGE POWER STEERING PIPELINES POWER STEERING COMPONENTS POWER STEERING PUMP POWER STEERING GEAR BOX (ZF) POWER STEERING HYDRAULIC TANK (ZF) FUEL SYSTEM EXHAUST SYSTEM RADIATOR & FITMENTS LIGHT AND SIGNAL INSTRUMENTS CAB/COWL WINDSHIELD GLASS DASHBOARD DOOR (LPT 613) DOOR LOCK WINDING REGULATOR AND GLASS INTERNAL AND EXTERNAL FITMENTS WIPER MOTOR AND LINKAGES CAB HEATING BUMPER CAB MOUNTING (FRONT) CAB MOUNTING (REAR) COWL MOUNTING MUDGUARD AND MUDFLAP SEAT AND SEAT BELTS

3

5

9

13

14

14

15

15

50

50

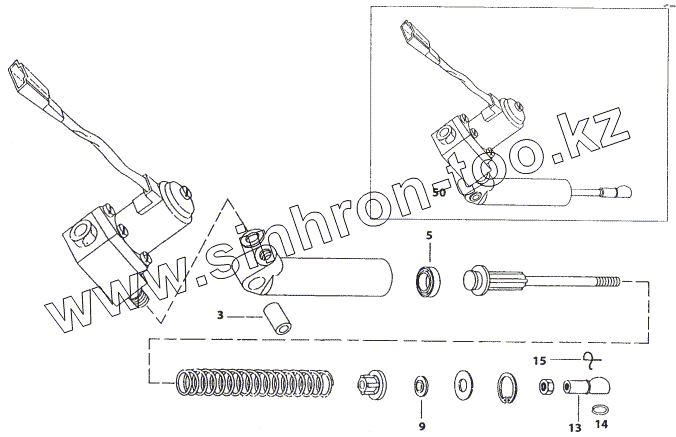

Позиция на иллюстрации	Заводской номер детали		Название детали
2523 4015 01 24	2523 4015 01 24		Ball Socket Joint Assy. Consisting of:
2523 4015 01 23	2523 4015 01 23		Repair Kit for Air Cylinder Consisting of:
Grease Sachet	Grease Sachet		Grease Sachet
3	Bush		Bush
5	Piston Seal		Piston Seal
9	Wiper Seal		Wiper Seal
13	Ball Socket		Ball Socket
14	Spring Ring		Spring Ring
14	Spring Ring		Spring Ring
15	Locking Ring		Locking Ring
15	Locking Ring		Locking Ring
50	2641 5420 99 38		Air Cylinder With Magnetic Valve, 12 V
50	2770 5424 99 04		Assy. Magnetic Valve 24 V (Exhaust Brake)

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
