Каталог запасных частей к технике: Shaanxi Shacman SX5318GJBDT386TL. WIRING

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW DAF DongFeng FAW Foton HOWO Hyundai IVECO JAC Motors LGMG MAN Shaanxi SITRAK Studebaker Tata Volvo Автокомпонент Плюс БелАЗ Брянский Арсенал ГАЗ ЗИЛ КАЗ Камский автозавод КрАЗ Мадара МАЗ МЗКТ МоАЗ Нефтекамский автозавод Ставропольский Завод АвтоПрицепов ТАТРА Тонар УралАЗ ЧМЗАП

Модель Не выбрано DeLONG Е-3 (самосвал) (2008) DeLONG Е-3 (тягач) (2008) MAN-F2000 (SX3254JS384) (2008) Shacman F2000 (2013) Shacman F3000 (2013) Shacman SX3255DR385 (2011) Shacman SX3256DR384 (F3000) (2015) Shacman SX3256DT384 (2011) Shacman SX3258DR384—F2000 Shacman SX3316DR366 (F2000) (2011) Shacman SX3316DT366 (2011) Shacman SX3316DT426C Shacman SX3316HT406C Shacman SX4255DV385 (2011) Shacman SX4256NT324 Shacman SX42584V324 Shacman SX42584V384TL Shacman SX5256GJBMR364 (2018) Shacman SX5318GJBDT386TL SX-3255-DR 3804B 6х4

Схема > Не выбрано SUN VISOR DASHBOARD (10 INTERIOR NATURAL GAS VEHICLE) HAND GRIPER (NATURAL GAS VEHICLE) SAFETY BELT LEFT FENDER RIGHT FENDER WINDSHIELD ASSEMBLY DOOR WINDOW LIFTER LEFT OPERATED DOOR WINDOW LIFTER RIGHT OPERATED DOOR AND DOOR GLASS DOOR AND DOOR GLASS DOOR COVERING LEFT DOOR COVERING RIGHT DOOR HINGE LEFT AND RIGHT DOOR ARRESTOR AND DOOR ACTUATING SYSTEM LEFT DOOR ARRESTOR AND DOOR ACUATING SYSTEM RIGHT HEADLINING WITH MOUNTING AND GRAB HANDLE SIDE-WALL PANELING CLOSED WITH NOUNTING LUGGAGE RACK FLOOR MATS FRONT AND ANTI-SKID STRIP WIPER SYSTEM WINDSCREEN WASHER PUMP AND ACCESSORIES DASHBOARD PANELLING ENGINE COWLING INSULATION NOISE INSULATION CAB TOOL BOX VIEW MIRROR CAB WELDING ASSY F3000D FRONT COVER LOWER BERTH UPPER BERTH SUN VISOR ROLLER DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY SOUND PROOFING SOUND PROOFING SEAT ENGINE SUSPENSION AIR CLEANING DEVICE EXPANSION BOX SYSTEM UNDER POLE COOLING SYSTEM / WP12NG / IMPROVED STRUCTURE / 505 POSITIONING / F3000 / 850 FRAME / BLUE HOSE EXHAUST SYSTEM / F3000 / 8x4 / PTO GEARBOX OPERATION (SHIFTING DEVECE) GEARBOX SUSPENSION (GEAR BOX SUPPORT) PULL DIAPHRAGM CLUTCH 430 PULL CLUTCH CONTROL DEVICE DESEN LNG CYLINDER GAS SUPPLY SYSTEM ON THE RIGHT 450L DC95319560582 LNG GAS CYLINDER ON THE RIGHT 450L THROTTLE CONTROL 7.5 TON DISC FRONT AXLE AXLE HOUSING FOR MAN TWO-STAGE REDUCTION DRIVE AXLE (STR SUSPENSION) REAR AXLE HOUSING FOR MAN TWO-STAGE REDUCTION AXLE (STR SUSPENSION) MID SECTION OF MAN TWO-STAGE REDUCTION DRIVE MID SECTION OF MAN TWO-STAGE DECELERATION DRIVE REAR AXLE MAN TWO-STAGE REDUCTION DRIVE AXLE WHEEL FRONT SUSPENSION DC95319690725 FRONT SHOCK ABSORBER DC95319680144 FRONT STABILIZER ASSY DC95319680144 REAR STABLIZER ASSY DC95319680144 REAR SUSPENSION DC95319520816 REAR SUSPENSION DC95319520816 PROPELLER SHAFT SYSTEM TRANSMISSION SHAFT PROTECTION FRAME ABS PIPE CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT AIR COMPRESSOR PIPELINE CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT EXHAUST BREAK PIPELINE LNG GAS PIPELINE AIR DRYER, FOUR-LOOP GUARD VALVE, AIR TANK FIXING DISTRIBUTION FITTING ASSEMBLE RELAY VALVE FIXING AIR TANK FIXING (I) AIR TANK FIXING (II) AIR TANK FIXING (III) RELAY VALVE FIXING (I) CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT SERVE BRAKE CONTROL DEVICE PARKING BRAKE CONTROL DEVICE AIR DRYER,FOUR-LOOP GUARD VALVE,AIR TANK FIXING DISTRIBUTION FITTING ASSEMBLE RELAY VALVE FIXING AIR TANK FIXING (I) AIR TANK FIXING (II) AIR TANK FIXING (III) RELAY VALVE FIXING (I) CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT STEERING COLUMN ADJUSTABLE STEERING TRANSMISSION DEVICE DOUBLE SHAFTS STEERING HYDRAULIC DEVICE HEADLAMPS FLASHERS IN BUMPER SUNSHADE LIGHTING SIDE-MARKER LIGHTS CHASSIS ELECTRICAL / ADDITION / MIXER TRUCK / B38 / 8x4 / CAN INSTRUMENT CHASSIS ELECTRIC EQUIPMENT (ADDITIONAL) CHASSIS APPLIANCES / TRACTOR TAILLIGHT BRACKET / NON-TRACTION / F3000 / WITH PROTECTIVE COVER / MIDLINE DOOR LAMP SWITCH PUMP FLOODLIGHT FLOODLIGHT ON REAR PANNEL WIRING DOOR AND WINDOW CONTROL UNIT ELECTRIC GLASS LIFTER ROCKER SWITCH FUSE SWITCH WIRING FUSE SWITCH WIRING RELAY, FUSE SWITCH WIRING FUSE SWITCH, RADIO AND CIGARETTE LIGHTER SWITCH COMMBINATION SWITCH BRAKE SWITCH RELAY, FUSE DIAGNOSTIC INTERFACE DEVICE BOARD RADIO LOUDHAILER TRANSFORMER WIRE BAROMETRIC PRESSURE SENSOR REAR LIGHT LOOMS ON CAB OUTER WIRING CAB ELECTRICAL / ADDITIONAL / NATURAL GAS / NON-TRACTOR / DOMESTIC 4ABS / CAN INSTRUMENTATION / NEW CAB ELECTRICAL / ADDITIONAL / NATURAL GAS / NON-TRACTOR / DOMESTIC 4ABS / CAN INSTRUMENTATION / NEW CAB ELECTRICAL / ADDITIONAL / NATURAL GAS / NON-TRACTOR / DOMESTIC 4ABS / CAN INSTRUMENTATION / NEW TELEMATIC FUSE WIRING TEMPERATURE SENSOR AIR CONDITION CONTROLLER ELECTRONIC CONTROL UNITS FOR AIR CONDITIONING AIR SYSTEM AIR SYSTEM AIR INTAKE BOX ON CAB AIR DUCT AIR CONDITION PIPES HEATER DEVICE (WITH AIR CONDITION) (FOR WP10, WD12, ISM ENGINES) HEATER DEVICE (WITH AIR CONDITION) (APPLICABLE TO WP12 ENGINE, ZOOMLION, XCMG) BATTERY BOX MOUNTING BATTERY BOX MAIN BATTERY SWITCH CHASSIS ELECTRICAL / NON-TRACTOR / F3000 / NATURAL GAS /8X4/3775/1600 / MAN REAR LIGHT / NEW CHASSIS ELECTRICAL / NON-TRACTOR / F3000 / NATURAL GAS / 8X4/3775/1600 / MAN REAR LIGHT / NEW CHASSIS ELECTRICAL / NON-TRACTOR / F3000 / NATURAL GAS / 8X4/3775/1600 / MAN REAR LIGHT / NEW CHASSIS ELECTRICAL / NON-TRACTOR / F3000 / NATURAL GAS / 8X4/3775/1600 / MAN REAR LIGHT / NEW CHASSIS ELECTRICAL / ADDITIONAL / REMOTE THROTTLE / NATURAL GAS / (3775/1700/8x4) / NEW CHASSIS APPLIANCES / F3000 / LNG CHASSIS APPLIANCES / NEW M3000 / WP7LNGE40 CHASSIS APPLIANCES / CAN TRANSMITTER CHASSIS APPLIANCES / ADDITIONAL / K38 / 8x4 / DOMESTIC 4ABS / HARNESS OPTIMIZATION CARFRAME ASSEMBLY AUXILIARY BEAM OF FRAME FRAM FOREPART ACCESSORY DRAW GEAR SPECIAL AND VEHICLE TOOLS CAB TILTING MECHANISM L.H. DRIVE VEHICLE SPRING CAB LOCKING DEVICE LEFT/RIGHT FENDER BRACKET FENDER LEFT BEHIND CAB FENDER RIGHT BEHIND CAB CAB HYDRAULIC TILTING EQUIPMENT BUMPER AND FRONT BRACKET LEFT FOOT PANEL BRACKET RIGHT FOOT PANEL BRACKET LEFT DOOR STEP RIGHT DOOR STEP REAR UNDERRUN PROTECTIVE DEVICES CAB TYPE LETTERS CAB DECORATE SCUTCHEON GLISTEN MARK CAB TYPE LETTERS WHEELING SYSTEM SPARE WHEEL HOLDER

DZ93189777113

81.96001.0482

1

2

3

4

5

6

7

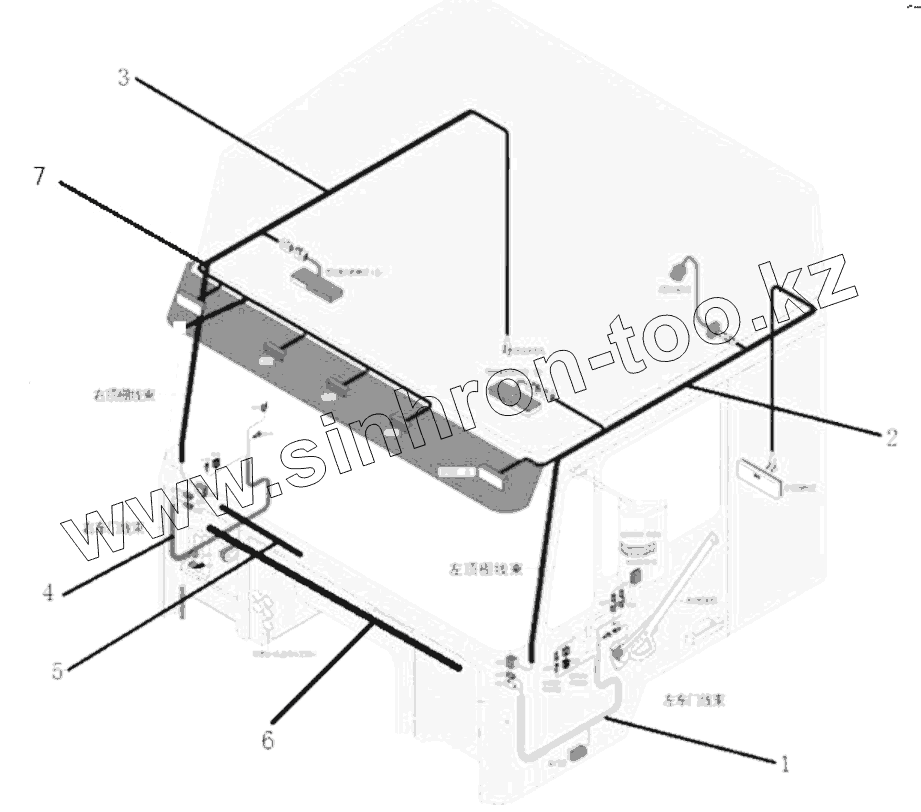

Позиция на иллюстрации	Заводской номер детали		Название детали
DZ93189777113	DZ93189777113		Threading rubber ring
81.96001.0482	81.96001.0482		Кольцо уплотнительное
1	DZ95189772113		Wiring harness for left door
2	DZ93189772127		Left roof wiring
3	DZ93189772128		Right roof wiring
4	DZ95189772112		Wiring harness for right door
5	81.25417.6442		Жгут электродвигателя
6	DZ93189776013		Electric glass lifter wiring harness assembly
7	81.96001.0076		Threading rubber ring

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
