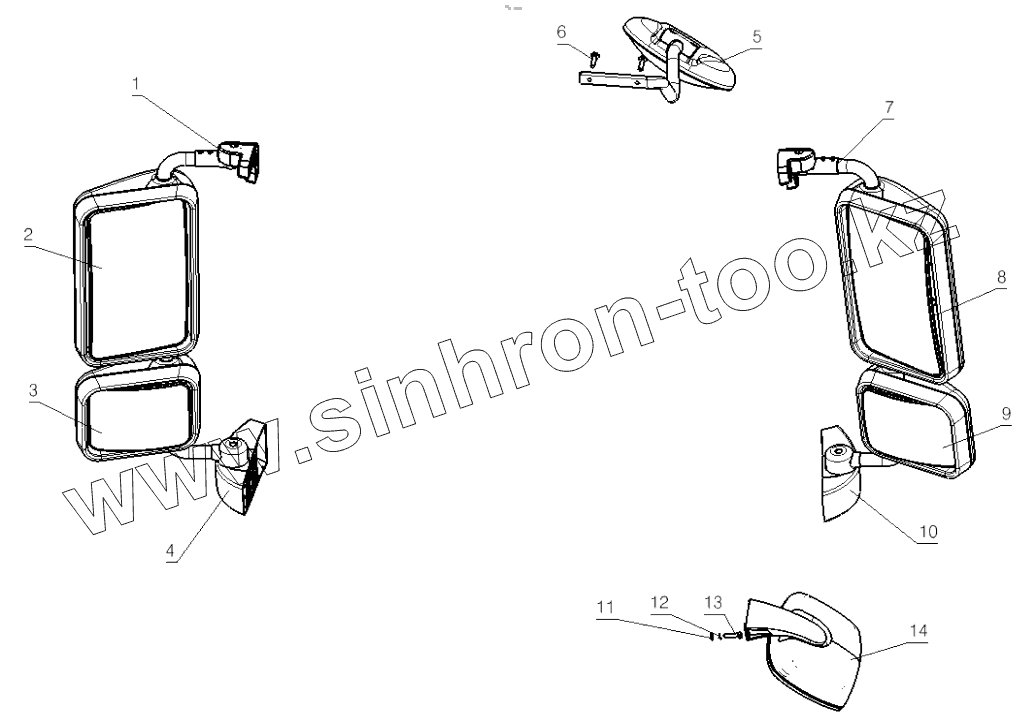

Каталог запасных частей к технике: Shaanxi Shacman SX5256GJBMR364. VIEW MIRROR
1
1
1
1
1
1
2
2
2
3
3
3
4
5
5
6
7
7
7
7
7
7
8
8
8
9
9
9
10
11
12
13
14
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | DZ15221770951 | Left view mirror bracket assy/rod /E-heat | |
| 1 | DZ15221770971 | Left view mirror bracket assy/rod /E-heat | |
| 1 | DZ15221771911 | Left view mirror bracket assy/rod | |
| 1 | DZ15221771951 | Left view mirror bracket assy/rod/E-heat | |
| 1 | DZ15221771971 | Left view mirror bracket assy/rod/E-heat | |
| 1 | DZ15221770911 | Left view mirror bracket assy/rod | |
| 2 | DZ13241770912 | Main out view mirror assy | |
| 2 | DZ13241770952 | Main out view mirror assy/e-heat | |
| 2 | DZ13241770972 | Main out view mirror assy/e-heat | |
| 3 | DZ13241770913 | Wide angle view mirror assy | |
| 3 | DZ13241770973 | Wide angle view mirror assy/e-heat | |
| 3 | DZ13241770953 | Wide angle view mirror assy/e-heat | |
| 4 | DZ15221770914 | LH dust cap | |
| 5 | DZ15221770060 | Front view mirror assy | |
| 5 | DZ15221771060 | Front view mirror assy | |
| 6 | Q2140830 | Pan head screw | |
| 7 | DZ15221770921 | Right view mirror bracket assy | |
| 7 | DZ15221771981 | Right view mirror bracket assy/rod/E-heat/RH | |
| 7 | DZ15221771961 | Right view mirror bracket assy/rod/E-heat/RH | |
| 7 | DZ15221771921 | Right view mirror bracket assy | |
| 7 | DZ15221770981 | Right view mirror bracket assy/rod/E-heat | |
| 7 | DZ15221770961 | Right view mirror bracket assy/rod/E-heat | |
| 8 | DZ13241770912 | Main out view mirror assy | |
| 8 | DZ13241770952 | Main out view mirror assy/e-heat | |
| 8 | DZ13241770972 | Main out view mirror assy/e-heat | |
| 9 | DZ13241770913 | Wide angle view mirror assy | |
| 9 | DZ13241770953 | Wide angle view mirror assy/e-heat | |
| 9 | DZ13241770973 | Wide angle view mirror assy/e-heat | |
| 10 | DZ15221770924 | RH dust cap | |
| 11 | Q40108 | Шайба А8,4х16х1,6-200НV-МАN183-В4 | |
| 12 | Q40308 | Шайба пружинная | |
| 13 | Q150B0830T1F3 | Hex bolt | |
| 14 | DZ15221770930 | Blind view mirror assy |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
