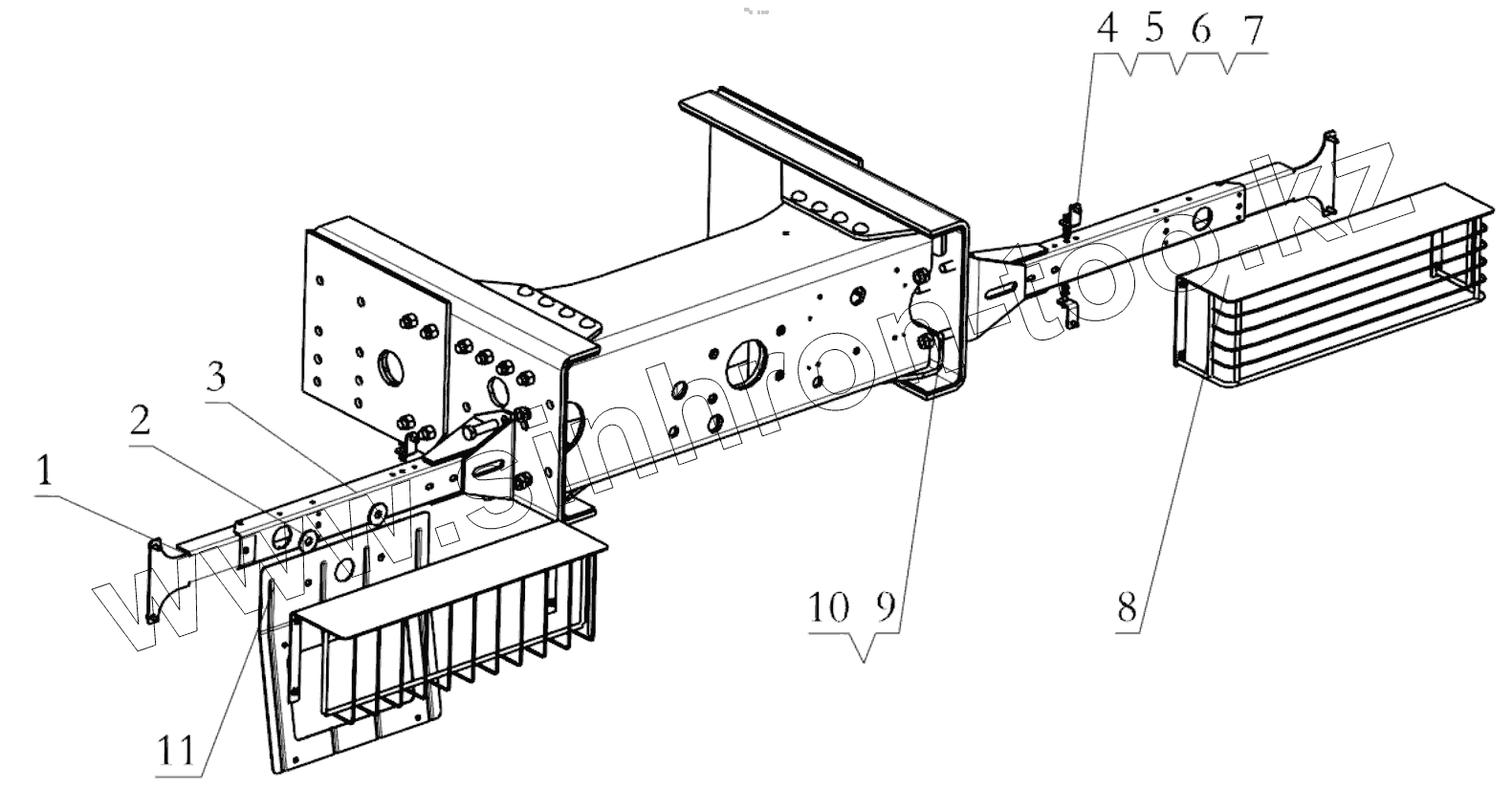

Каталог запасных частей к технике: Shaanxi Shacman SX5256GJBMR364. TAILLIGHT BRACKET

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW DAF DongFeng FAW Foton HOWO Hyundai IVECO JAC Motors LGMG MAN Shaanxi SITRAK Studebaker Tata Volvo Автокомпонент Плюс БелАЗ Брянский Арсенал ГАЗ ЗИЛ КАЗ Камский автозавод КрАЗ Мадара МАЗ МЗКТ МоАЗ Нефтекамский автозавод Ставропольский Завод АвтоПрицепов ТАТРА Тонар УралАЗ ЧМЗАП

Модель Не выбрано DeLONG Е-3 (самосвал) (2008) DeLONG Е-3 (тягач) (2008) MAN-F2000 (SX3254JS384) (2008) Shacman F2000 (2013) Shacman F3000 (2013) Shacman SX3255DR385 (2011) Shacman SX3256DR384 (F3000) (2015) Shacman SX3256DT384 (2011) Shacman SX3258DR384—F2000 Shacman SX3316DR366 (F2000) (2011) Shacman SX3316DT366 (2011) Shacman SX3316DT426C Shacman SX3316HT406C Shacman SX4255DV385 (2011) Shacman SX4256NT324 Shacman SX42584V324 Shacman SX42584V384TL Shacman SX5256GJBMR364 (2018) Shacman SX5318GJBDT386TL SX-3255-DR 3804B 6х4

Схема > Не выбрано ENGINE SUSPENSION FUEL LINE AND JOINT REMOTE ACCELEROGRAPH CONTROLLER ACCELEROGRAPH CONTROL DEVICE FUEL TANK ASSEMBLY AIR CLEANING DEVICE RADIATOR PROTECTOR SYSTEM COOLING SYSTEM/WP10/NEW M3000/850 FRAME COOLING SYSTEM/WP10/NEW M3000/850 FRAME EXPANSION BOX SYSTEM EXHAUSTING SYSTEM PULL CLUTCH CONTROL DEVICE PULL DIAPHRAGM CLUTCH Р¤430 GEAR BOX SUPPORT SHIFTING DEVECE MAN 7.5 TON DRUM STEERING SHAFT STR DOUBLE-STAGE DOUBLE-AXLE AXLE HOUSING (MIDDLE AXLE) STR DOUBLE-STAGE DOUBLE-BRIDGE MIDDLE BRIDGE MAIN REDUCTION в…  STR DOUBLE-STAGE DOUBLE-BRIDGE MIDDLE BRIDGE MAIN REDUCTION в…Ў STR DOUBLE-STAGE DOUBLE-BRIDGE MIDDLE BRIDGE MAIN REDUCTION в…ў STR DOUBLE-STAGE DOUBLE-AXLE AXLE HOUSING (REAR AXLE) STR DUAL-STAGE DUAL-AXLE DRIVE UNIT (REAR AXLE) STR DOUBLE-STAGE DOUBLE-AXLE WHEEL SIDE PLANETARY REDUCER I (MIDDLE AND REAR AXLE) STR DOUBLE-STAGE DOUBLE-AXLE WHEEL SIDE PLANETARY REDUCER в…Ў (MIDDLE AND REAR AXLE) STR DOUBLE-STAGE DOUBLE-AXLE BRAKE I (MIDDLE AND REAR AXLE) STR DOUBLE-STAGE DOUBLE-AXLE BRAKE в…Ў (MIDDLE AND REAR AXLE) NEW M3000 HALF HIGH ROOF CAB ASSY SEAT HEAT INSULATION LEFT DOOR LIMIT RIGHT DOOR LIMIT LEFT DOOR WINDOW LIFTER ASSEMBLY RIGHT DOOR WINDOW LIFTER ASSEMBLY LEFT DOOR INNER PANEL ASSEMBLY LEFT DOOR INNER PANEL ASSEMBLY RIGHT DOOR INNER PANEL ASSEMBLY RIGHT DOOR INNER PANEL ASSEMBLY LEFT DOOR SEAL RIGHT DOOR SEAL LEFT DOOR HINGE RIGHT DOOR HINGE FLOOR MATS WINDSCREEN SIDE-WINDOW AND REAR-WINDOW SAFETY BELT LEFT DOOR LOCK SYSTEM LEFT LOCK SET IN CAB LFET DOOR LOCKSCREW RIGHT DOOR LOCK SYSTEM RIGHT LOCK SET IN CAB RIGHT DOOR LOCKSCREW NEW M3000 HALF-HEIGHT SUNSHADE LOW ROOF LENGTHENING SUNDRY LH GUSSET BACKPLATE RH GUSSET BACKPLATE BH GUSSET BACKPLATE LOW ROOF LENGTHENING DASHBOARD LH, RH AND LOW RIGHT BRACKET DASHBOARD MID BRACKET DASHBOARD ASSY DASHBOARD PANEL ASSY DRIVER KNEE BOLSTER ASSY PASSENGER KNEE BOLSTER ASSY SECOND DASHBOARD ASSY CAB DECORATIVE SIGNS AND REFLECTIVE SIGNS FRONT COVER FRONT COVER VIEW MIRROR WINDSCREEN WIPER ASSEMBLY WATER CONTAINER PART OF THE CAB FENDER FENDER DC15221232234 LEFT FOOT PANEL RIGHT FOOT PANEL LEFT FOOT PANEL FOR CAB RIGHT FOOT PANEL FOR CAB NEW-M3000 DUMP TRUCK BUMPER STEERING TRANSMISSION DEVICE STEERING HYDRAULIC DEVICE STEERING COLUMN ADJUSTABLE DOUBAL CIRCUIT BRAKE SYSTEM II DOUBAL CIRCUIT BRAKE SYSTEM II CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT AIR COMPRESSOR PIPELINE AIR BLACKCURRANT UNIT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT SERVE BRAKE CONTROL DEVICE PARKING BRAKE CONTROL DEVICE 7.5 ABS AIR RESERVOIR BRACKET ASSEMBLY EXHAUST BRAKE CONTROL CAB ELECTRICAL/NEW M3000/ADDITIONAL/WP/ELECTROMAGNETIC CLUTCH FAN ABS CONTROLLER SWITCH SWITCH DOOR LAMP SWITCH INNER LIGHT CLEARANCE LAMP SIDE TURN SIGNAL LAMP TOP CEILING WIRE HARNESS FLOOR WIRE HARNESS DOOR WIRE HARNESS SWITCH SWITCH SWITCH SWITCH ANTENNA, SPEAKER RIGHT HEAD LIGHT WIRE HARNESS CHASSIS ELECTRICAL/NEW M3000/NON-TRACTOR/K38/6Г—4/REAR SUSPENSION 1500/NO JUNCTION BOX CHASSIS ELECTRICAL/NEW M3000/NON-TRACTOR/K38/6Г—4/REAR SUSPENSION 1500/NO JUNCTION BOX CHASSIS ELECTRICAL/NEW M3000/NON-TRACTOR/K32/8Г—4/REAR SUSPENSION 1000/STR AXLE CHASSIS ELECTRICAL/NEW M3000/NON-TRACTOR/K32/8Г—4/REAR SUSPENSION 1000/STR AXLE CHASSIS ELECTRICAL/NEW M3000/NON-TRACTOR/K32/8Г—4/REAR SUSPENSION 1000/STR AXLE CHASSIS APPLIANCE/ADDITONAL/ EXTENDED LINE CHASSIS ELECTRICAL/ABS SOLENOID VALVE AND WIRING HARNESS CHASSIS ELECTRICAL/NON-TRACTOR CHASSIS ELECTRICAL/ADDITIONAL/REMOTE THROTTLE 980 BATTERY BOX MOUNTING BATTERY BOX MAIN POWER SWITCH (SWITCH IN THE MIDDLE) TAILLIGHT BRACKET HEADLAMPS SIDE MARKER LIGHT (FENDER) COMBINATION TAILLIGHT AIR CONDITIONING SYSTEM AIR CONDITIONER BODY AIR DUCT AIR CONDITION PIPES FRONT SHOCK ABSORBER (DC95259680100) FRONT STABILIZER ASSY (DC95259680100) CAB HYDRAULIC TILTING EQUIPMENT CAB TILTING MECHANISM L.H. DRIVE VEHICLE SPRING CAB LOCKING DEVICE FRONT SUSPENSION (DC95259690902) REAR SUSPENSION I (DC95319520801) REAR SUSPENSION II (DC95319520801) FRAME ASSY FRONT CARFRAME AFFIX (DC96259800113) CROSS MEMBER WHEELING SYSTEM CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT SPARE WHEEL HOLDER DRAW GEAR UREA SUPPLY TANK DECORATIVE ASSEMBLY VEHICLE SCUTCHEON CAB VEHICLE TYPE LETTERS

1

2

3

4

5

6

7

8

9

10

11

Позиция на иллюстрации	Заводской номер детали		Название детали
1	SZ981000773		Bracket
2	Q402B12		Washer
3	SZ981000777		Hex screw
4	SZ981000774		Bracket
5	Q401B06		Flat washer
6	Q33206		Шайба стопорная
7	Q150B0616		Болт
8	DZ95189941036		Taillight shield assembly
9	Q151B1450T1F3		Hex head bolt - fine teeth
10	190003888458		Гайка
11	DZ97189940003		Number stay

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
