Shacman SX5256GJBMR364
RIGHT DOOR WINDOW LIFTER ASSEMBLY

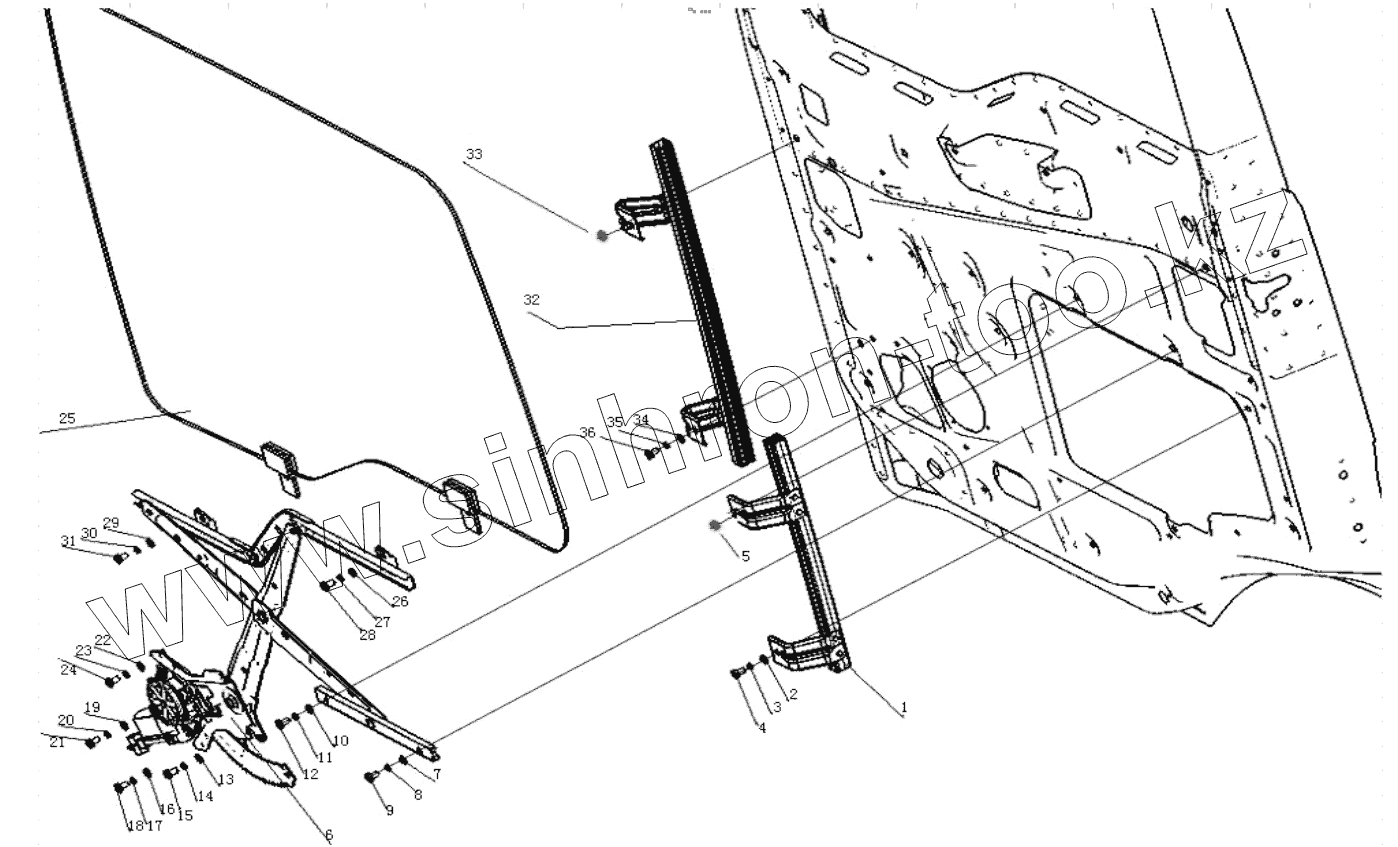

Каталог запасных частей к технике: Shaanxi Shacman SX5256GJBMR364. RIGHT DOOR WINDOW LIFTER ASSEMBLY
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
DAF
DongFeng
FAW
Foton
HOWO
Hyundai
IVECO
JAC Motors
LGMG
MAN
Shaanxi
SITRAK
Studebaker
Tata
Volvo
Автокомпонент Плюс
БелАЗ
Брянский Арсенал
ГАЗ
ЗИЛ
КАЗ
Камский автозавод
КрАЗ
Мадара
МАЗ
МЗКТ
МоАЗ
Нефтекамский автозавод
Ставропольский Завод АвтоПрицепов
ТАТРА
Тонар
УралАЗ
ЧМЗАП
Модель
Не выбрано
DeLONG Е-3 (самосвал) (2008)
DeLONG Е-3 (тягач) (2008)
MAN-F2000 (SX3254JS384) (2008)
Shacman F2000 (2013)
Shacman F3000 (2013)
Shacman SX3255DR385 (2011)
Shacman SX3256DR384 (F3000) (2015)
Shacman SX3256DT384 (2011)
Shacman SX3258DR384—F2000
Shacman SX3316DR366 (F2000) (2011)
Shacman SX3316DT366 (2011)
Shacman SX3316DT426C
Shacman SX3316HT406C
Shacman SX4255DV385 (2011)
Shacman SX4256NT324
Shacman SX42584V324
Shacman SX42584V384TL
Shacman SX5256GJBMR364 (2018)
Shacman SX5318GJBDT386TL
SX-3255-DR 3804B 6х4
Схема
>
Не выбрано
ENGINE SUSPENSION
FUEL LINE AND JOINT
REMOTE ACCELEROGRAPH CONTROLLER
ACCELEROGRAPH CONTROL DEVICE
FUEL TANK ASSEMBLY
AIR CLEANING DEVICE
RADIATOR PROTECTOR SYSTEM
COOLING SYSTEM/WP10/NEW M3000/850 FRAME
COOLING SYSTEM/WP10/NEW M3000/850 FRAME
EXPANSION BOX SYSTEM
EXHAUSTING SYSTEM
PULL CLUTCH CONTROL DEVICE
PULL DIAPHRAGM CLUTCH Р¤430
GEAR BOX SUPPORT
SHIFTING DEVECE
MAN 7.5 TON DRUM STEERING SHAFT
STR DOUBLE-STAGE DOUBLE-AXLE AXLE HOUSING (MIDDLE AXLE)
STR DOUBLE-STAGE DOUBLE-BRIDGE MIDDLE BRIDGE MAIN REDUCTION в…
STR DOUBLE-STAGE DOUBLE-BRIDGE MIDDLE BRIDGE MAIN REDUCTION в…Ў
STR DOUBLE-STAGE DOUBLE-BRIDGE MIDDLE BRIDGE MAIN REDUCTION в…ў
STR DOUBLE-STAGE DOUBLE-AXLE AXLE HOUSING (REAR AXLE)
STR DUAL-STAGE DUAL-AXLE DRIVE UNIT (REAR AXLE)
STR DOUBLE-STAGE DOUBLE-AXLE WHEEL SIDE PLANETARY REDUCER I (MIDDLE AND REAR AXLE)
STR DOUBLE-STAGE DOUBLE-AXLE WHEEL SIDE PLANETARY REDUCER в…Ў (MIDDLE AND REAR AXLE)
STR DOUBLE-STAGE DOUBLE-AXLE BRAKE I (MIDDLE AND REAR AXLE)
STR DOUBLE-STAGE DOUBLE-AXLE BRAKE в…Ў (MIDDLE AND REAR AXLE)
NEW M3000 HALF HIGH ROOF CAB ASSY
SEAT
HEAT INSULATION
LEFT DOOR LIMIT
RIGHT DOOR LIMIT
LEFT DOOR WINDOW LIFTER ASSEMBLY
RIGHT DOOR WINDOW LIFTER ASSEMBLY
LEFT DOOR INNER PANEL ASSEMBLY
LEFT DOOR INNER PANEL ASSEMBLY
RIGHT DOOR INNER PANEL ASSEMBLY
RIGHT DOOR INNER PANEL ASSEMBLY
LEFT DOOR SEAL
RIGHT DOOR SEAL
LEFT DOOR HINGE
RIGHT DOOR HINGE
FLOOR MATS
WINDSCREEN
SIDE-WINDOW AND REAR-WINDOW
SAFETY BELT
LEFT DOOR LOCK SYSTEM
LEFT LOCK SET IN CAB
LFET DOOR LOCKSCREW
RIGHT DOOR LOCK SYSTEM
RIGHT LOCK SET IN CAB
RIGHT DOOR LOCKSCREW
NEW M3000 HALF-HEIGHT SUNSHADE
LOW ROOF LENGTHENING SUNDRY
LH GUSSET BACKPLATE
RH GUSSET BACKPLATE
BH GUSSET BACKPLATE
LOW ROOF LENGTHENING
DASHBOARD LH, RH AND LOW RIGHT BRACKET
DASHBOARD MID BRACKET
DASHBOARD ASSY
DASHBOARD PANEL ASSY
DRIVER KNEE BOLSTER ASSY
PASSENGER KNEE BOLSTER ASSY
SECOND DASHBOARD ASSY
CAB DECORATIVE SIGNS AND REFLECTIVE SIGNS
FRONT COVER
FRONT COVER
VIEW MIRROR
WINDSCREEN WIPER ASSEMBLY
WATER CONTAINER
PART OF THE CAB FENDER
FENDER DC15221232234
LEFT FOOT PANEL
RIGHT FOOT PANEL
LEFT FOOT PANEL FOR CAB
RIGHT FOOT PANEL FOR CAB
NEW-M3000 DUMP TRUCK BUMPER
STEERING TRANSMISSION DEVICE
STEERING HYDRAULIC DEVICE
STEERING COLUMN ADJUSTABLE
DOUBAL CIRCUIT BRAKE SYSTEM II
DOUBAL CIRCUIT BRAKE SYSTEM II
CONNECTING PARTS, LINE & NIPPLE JOINT
CONNECTING PARTS, LINE & NIPPLE JOINT
CONNECTING PARTS, LINE & NIPPLE JOINT
AIR COMPRESSOR PIPELINE
AIR BLACKCURRANT UNIT
CONNECTING PARTS, LINE & NIPPLE JOINT
CONNECTING PARTS, LINE & NIPPLE JOINT
SERVE BRAKE CONTROL DEVICE
PARKING BRAKE CONTROL DEVICE
7.5 ABS
AIR RESERVOIR BRACKET ASSEMBLY
EXHAUST BRAKE CONTROL
CAB ELECTRICAL/NEW M3000/ADDITIONAL/WP/ELECTROMAGNETIC CLUTCH FAN
ABS CONTROLLER
SWITCH
SWITCH
DOOR LAMP SWITCH
INNER LIGHT
CLEARANCE LAMP
SIDE TURN SIGNAL LAMP
TOP CEILING WIRE HARNESS
FLOOR WIRE HARNESS
DOOR WIRE HARNESS
SWITCH
SWITCH
SWITCH
SWITCH
ANTENNA, SPEAKER
RIGHT HEAD LIGHT WIRE HARNESS
CHASSIS ELECTRICAL/NEW M3000/NON-TRACTOR/K38/6Г—4/REAR SUSPENSION 1500/NO JUNCTION BOX
CHASSIS ELECTRICAL/NEW M3000/NON-TRACTOR/K38/6Г—4/REAR SUSPENSION 1500/NO JUNCTION BOX
CHASSIS ELECTRICAL/NEW M3000/NON-TRACTOR/K32/8Г—4/REAR SUSPENSION 1000/STR AXLE
CHASSIS ELECTRICAL/NEW M3000/NON-TRACTOR/K32/8Г—4/REAR SUSPENSION 1000/STR AXLE
CHASSIS ELECTRICAL/NEW M3000/NON-TRACTOR/K32/8Г—4/REAR SUSPENSION 1000/STR AXLE
CHASSIS APPLIANCE/ADDITONAL/ EXTENDED LINE
CHASSIS ELECTRICAL/ABS SOLENOID VALVE AND WIRING HARNESS
CHASSIS ELECTRICAL/NON-TRACTOR
CHASSIS ELECTRICAL/ADDITIONAL/REMOTE THROTTLE 980
BATTERY BOX MOUNTING
BATTERY BOX
MAIN POWER SWITCH (SWITCH IN THE MIDDLE)
TAILLIGHT BRACKET
HEADLAMPS
SIDE MARKER LIGHT (FENDER)
COMBINATION TAILLIGHT
AIR CONDITIONING SYSTEM
AIR CONDITIONER BODY
AIR DUCT
AIR CONDITION PIPES
FRONT SHOCK ABSORBER (DC95259680100)
FRONT STABILIZER ASSY (DC95259680100)
CAB HYDRAULIC TILTING EQUIPMENT
CAB TILTING MECHANISM L.H. DRIVE VEHICLE
SPRING
CAB LOCKING DEVICE
FRONT SUSPENSION (DC95259690902)
REAR SUSPENSION I (DC95319520801)
REAR SUSPENSION II (DC95319520801)
FRAME ASSY
FRONT CARFRAME AFFIX (DC96259800113)
CROSS MEMBER
WHEELING SYSTEM
CONNECTING PARTS, LINE & NIPPLE JOINT
CONNECTING PARTS, LINE & NIPPLE JOINT
CONNECTING PARTS, LINE & NIPPLE JOINT
SPARE WHEEL HOLDER
DRAW GEAR
UREA SUPPLY TANK
DECORATIVE ASSEMBLY
VEHICLE SCUTCHEON
CAB VEHICLE TYPE LETTERS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
Позиция на иллюстрации
Заводской номер детали
Название детали
1
DZ15221330066
Right Door Inferoanterior Lead Rail
2
Q40106
Шайба 8х16х2-SТ-А3С
3
Q40306
Шайба
4
Q2140612
Гайка
5
Q340B06
Nut
6
DZ15221330068
Right Door Window Lifter
7
Q40106
Шайба 8х16х2-SТ-А3С
8
Q40306
Шайба
9
Q2140612
Гайка
10
Q40106
Шайба 8х16х2-SТ-А3С
11
Q40306
Шайба
12
Q2140612
Гайка
13
Q40106
Шайба 8х16х2-SТ-А3С
14
Q40306
Шайба
15
Q2140612
Гайка
16
Q40106
Шайба 8х16х2-SТ-А3С
17
Q40306
Шайба
18
Q2140612
Гайка
19
Q40106
Шайба 8х16х2-SТ-А3С
20
Q40306
Шайба
21
Q2140612
Гайка
22
Q40106
Шайба 8х16х2-SТ-А3С
23
Q40306
Шайба
24
Q2140612
Гайка
25
DZ15221330069
Right Door Window
26
Q40106
Шайба 8х16х2-SТ-А3С
27
Q40306
Шайба
28
Q2140612
Гайка
29
Q40106
Шайба 8х16х2-SТ-А3С
30
Q40306
Шайба
31
Q2140612
Гайка
32
DZ15221330067
Right Door Behind-down Lead Rail
33
Q340B06
Nut
34
Q40106
Шайба 8х16х2-SТ-А3С
35
Q40306
Шайба
36
Q2140612
Гайка
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
