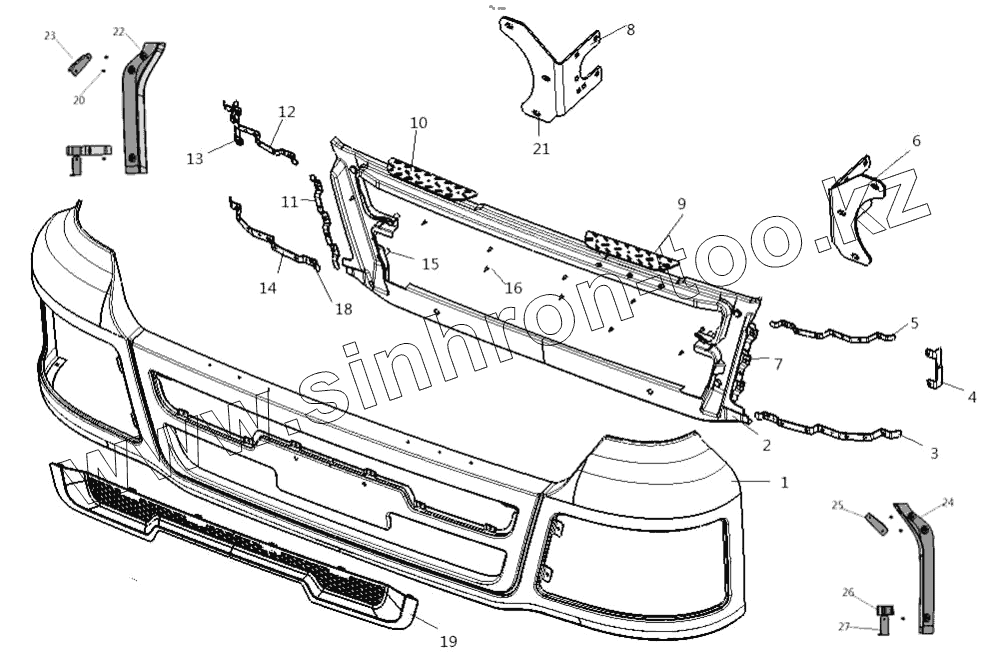

Каталог запасных частей к технике: Shaanxi Shacman SX5256GJBMR364. NEW-M3000 DUMP TRUCK BUMPER
1
1
2
3
3
4
5
5
6
7
8
9
10
11
12
12
13
14
14
15
16
18
19
20
21
22
23
24
25
26
26
27
27
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | DZ96259622528 | Bumper noumenon | |
| 1 | DZ96259622110 | Bumper noumenon | |
| 2 | DZ96259622330 | Bumper bracket | |
| 3 | DZ96259622240 | Left headlight fixation bracket assy (low) | |
| 3 | DZ96259622522 | Left headlight fixation bracket assy (low) | |
| 4 | DZ96259622270 | Left headlight fixation bracket assy (out) | |
| 5 | DZ96259622230 | Left headlight fixation bracket assy (up) | |
| 5 | DZ96259622520 | Left headlight fixation bracket assy (up) | |
| 6 | DZ96259622250 | Bumper fixation up of left assy | |
| 7 | DZ96259622260 | Left headlight fixation bracket assy (inner) | |
| 8 | DZ96259622260 | Left headlight fixation bracket assy (inner) | |
| 9 | DZ93259932161 | Skidproof board upper | |
| 10 | Q4400513T19 | Rivet | |
| 11 | DZ96259622310 | Right headlight fixation bracket assy (inner) | |
| 12 | DZ96259622280 | Right headlight fixation bracket assy (up) | |
| 12 | DZ96259622521 | Right headlight fixation bracket assy (up) | |
| 13 | DZ96259622320 | Right headlight fixation bracket assy (out) | |
| 14 | DZ96259622523 | Right headlight fixation bracket assy (low) | |
| 14 | DZ96259622290 | Right headlight fixation bracket assy (low) | |
| 15 | Q151B1230 | Hex bolt | |
| 16 | Q2714213 | Pan head self-tapping screw | |
| 17 | Q402B05 | Washe | |
| 18 | Q37105 | Sealing nut | |
| 19 | DZ96259622210 | Bumper grid | |
| 20 | Q2300516 | Pan head screw and washer | |
| 21 | Q33212 | Гайка | |
| 22 | DZ96259622460 | Left side decorate plate | |
| 23 | DZ96259622420 | Left side decorate plate bracket | |
| 24 | DZ96259622470 | Right side decorate plate | |
| 25 | DZ96259622430 | Right side decorate plate | |
| 26 | DZ96259622480 | Bumper left joint bracket | |
| 26 | DZ96259622481 | Bumper left joint bracket | |
| 27 | DZ96259622490 | Bumper right joint bracket | |
| 27 | DZ96259622482 | Bumper right joint bracket | |
| 28 | DZ96259622440 | Decorate fixation bracket | |
| 29 | DZ93259622381 | Bumper decorate block |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
