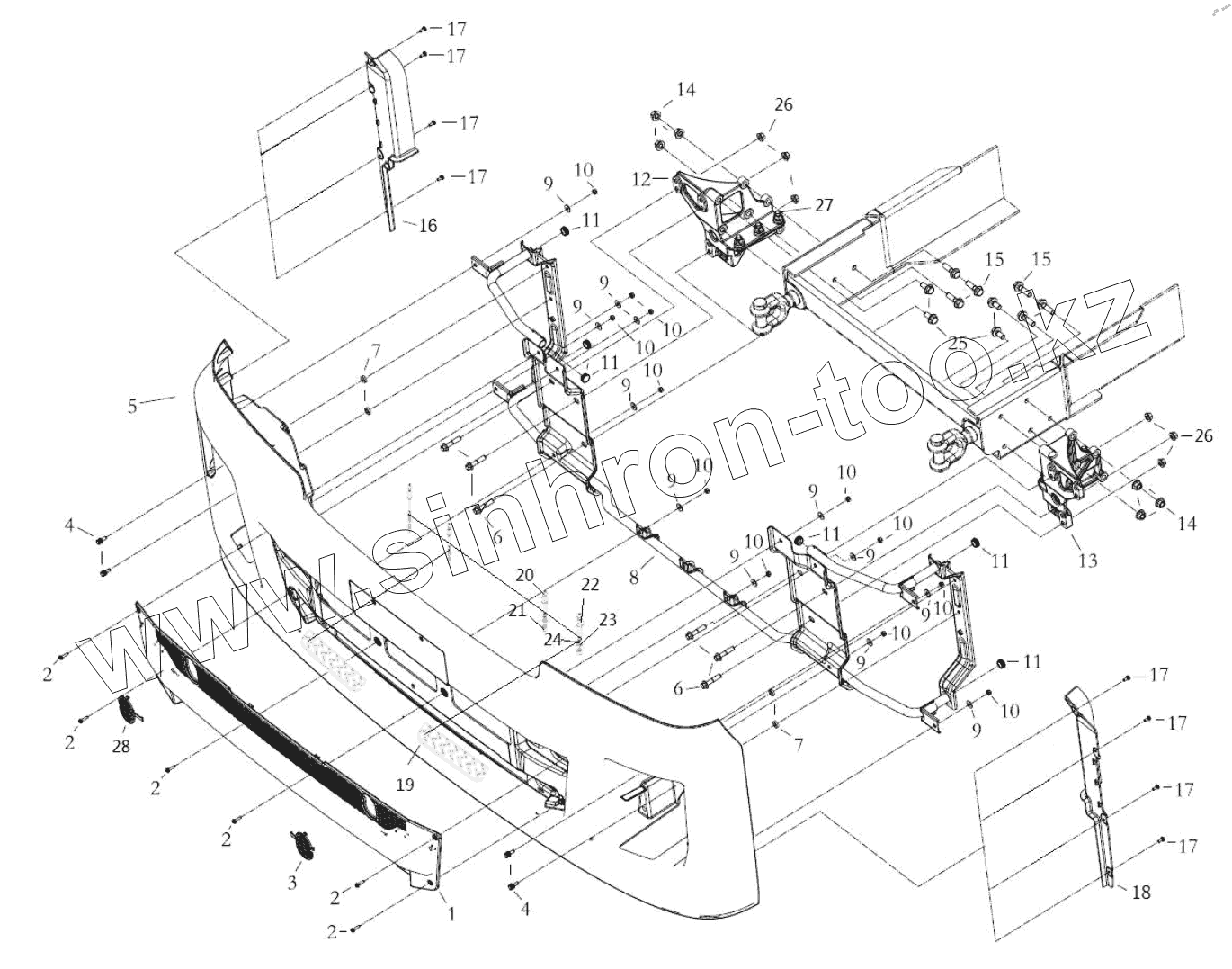

Каталог запасных частей к технике: Shaanxi Shacman SX42584V384TL. BUMPER
1
2
2
2
2
2
2
3
4
4
5
6
6
7
7
8
9
9
9
9
9
9
9
9
9
9
9
10
10
10
10
10
10
10
10
10
10
10
11
11
11
11
11
12
12
13
13
14
14
15
15
16
17
17
17
17
17
17
17
17
18
19
20
21
22
23
24
25
26
26
27
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | DZ97189621016 | Bumper front grille | |
| 2 | Q2300625 | Cross groove pan head screw and flat washer assembly | |
| 3 | DZ97189621044 | Bumper left drag hook cover | |
| 4 | Q1460825 | Hexagonal bolt, spring washer and flat washer molectron | |
| 5 | DZ97189621021 | Bumper body | |
| 6 | Q1841255 | Hexagonal flange bolts | |
| 7 | DZ97189621015 | Rubber ring | |
| 8 | DZ97189621030 | Bumper fixing bracket assembly | |
| 9 | Q40208 | Шайба | |
| 10 | Q340B08T2F3 | Type 1 hex nut | |
| 11 | DZ97189621043 | Block the cover | |
| 12 | DZ97189621012 | Bumper right mounting seat | |
| 12 | DZ97189621068 | Bumper right mounting seat | |
| 13 | DZ97189621011 | Bumper left mounting seat | |
| 13 | DZ97189621067 | Bumper left mounting seat | |
| 14 | Q32014 | Hexagonal flange face nut | |
| 15 | Q1861450 | Hexagonal flange bolts-enlarged series | |
| 16 | DZ97189621025 | Decorative plate at the right end of the bumper | |
| 17 | Q2300616 | Cross groove pan head screw and flat washer assembly | |
| 18 | DZ97189621024 | Decorative plate at the left end of the bumper | |
| 19 | DZ97189621056 | Stepping non-slip mat | |
| 20 | Q2140625 | Болт М8х22-8,8-МАN183-В1 | |
| 21 | Q40206 | Шайба | |
| 22 | Q40306 | Шайба | |
| 23 | Q40106 | Шайба 8х16х2-SТ-А3С | |
| 24 | Q340B06 | Nut | |
| 25 | Q32012 | Hexagonal flange face nut | |
| 26 | Q1861440 | Hexagonal flange bolts-enlarged series | |
| 27 | Q1861430 | Hexagonal flange bolts-enlarged series | |
| 28 | DZ97189621045 | Bumper right drag hook cover |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
