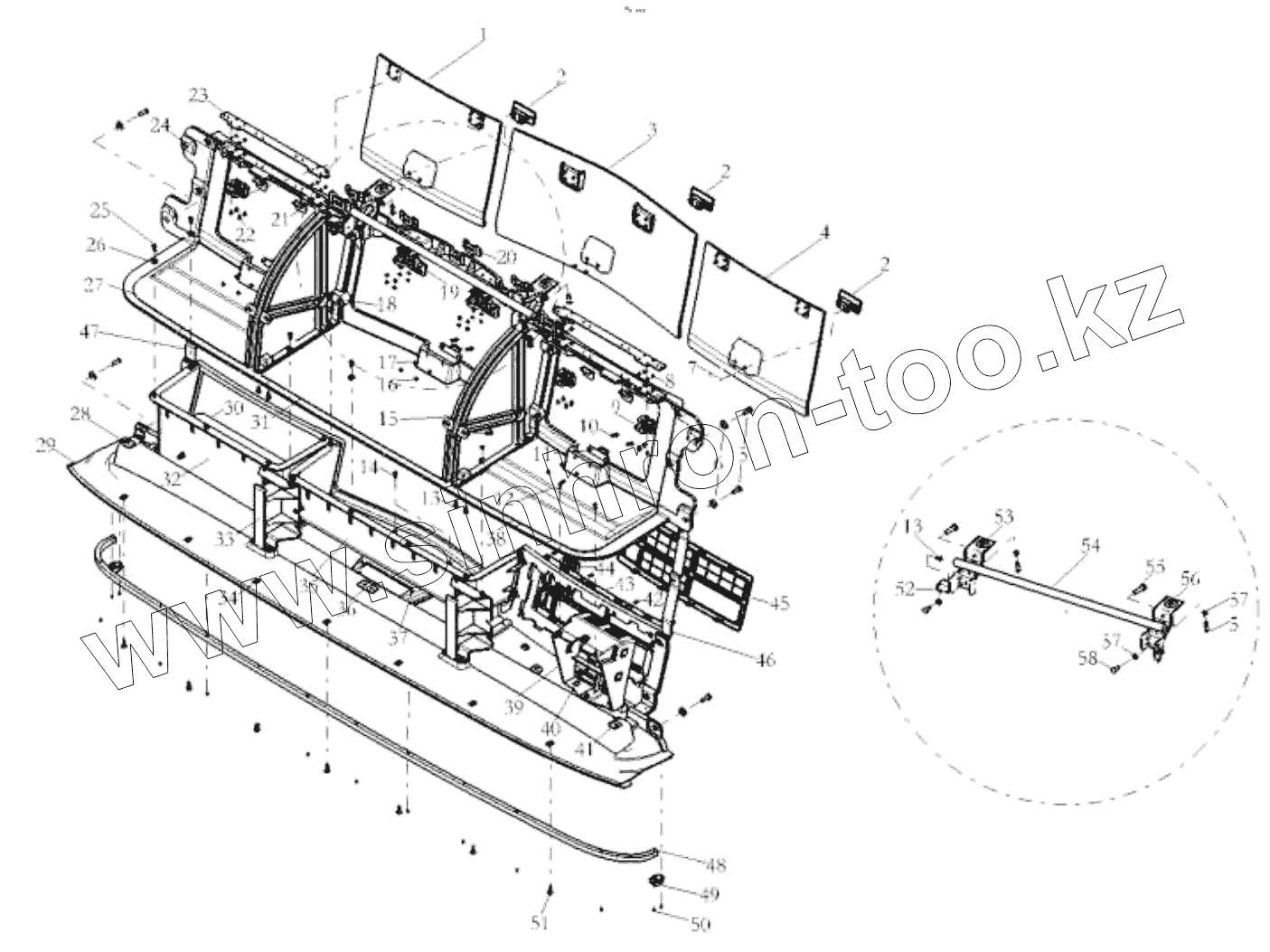

Каталог запасных частей к технике: Shaanxi Shacman SX42584V324. THE INTERIOR TRIM ASSEMBLY
1
2
2
2
3
4
5
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
57
58
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| DZ14251610368 | DZ14251610368 | Driving recorder cover | |
| 1 | DZ14251610334 | Right door panel | |
| 2 | DZ13241770840 | latch mechanism | |
| 3 | DZ14251610335 | Middle door panel | |
| 4 | DZ14251610333 | Left door panel | |
| 5 | Q2140825 | Screw | |
| 6 | Q40208 | Шайба | |
| 7 | Q2140408 | Pan-head screw | |
| 8 | Q37104 | Jointing nut | |
| 9 | DZ14251610360 | Door panel hinge assy | |
| 10 | Q2300520 | Pan-head screw | |
| 11 | DZ13241770867 | Lock | |
| 12 | Q2204216 | Self tapping screw | |
| 13 | Q2300616 | Cross groove pan head screw and flat washer assembly | |
| 14 | Q2540616 | Countersunk screw | |
| 15 | DZ14251610337 | Left clapboard | |
| 16 | Q340B05 | Гайка | |
| 17 | Q40005 | Small washer | |
| 18 | DZ14251610338 | Right clapboard | |
| 19 | DZ14251610386 | Door panel hinge assy | |
| 20 | DZ14251610332 | Installation bracket | |
| 21 | DZ14251610385 | Fixed plate | |
| 22 | Q2300410 | Pan-head screw | |
| 23 | DZ14251610371 | Hinge mounting plate | |
| 24 | DZ14251610331 | Upper miscellaneous box body | |
| 25 | Q2140616 | Болт | |
| 26 | Q40206 | Шайба | |
| 27 | DZ14251610389 | Miscellaneous box mat on the right | |
| 28 | DZ14251610349 | Side sunshade mounting plate | |
| 29 | DZ14251610341 | Lower miscellaneous box body | |
| 30 | DZ14251610378 | Lower right miscellaneous box mat | |
| 31 | DZ14251610388 | Miscellaneous box mat on the middle door | |
| 32 | DZ14251610343 | Lower sundries box, right sundries box | |
| 33 | DZ14251610313 | Lower miscellaneous box support frame | |
| 34 | Q39748201 | Oval-head self-tapping | |
| 35 | DZ14251610342 | In the miscellaneous box, in the sundries box | |
| 36 | DZ14251610348 | Intermediate sunshade mounting plate | |
| 37 | DZ14251610347 | Retractor body and bottom plate lamp reed nut | |
| 38 | DZ14251610387 | Miscellaneous box mat on the left | |
| 39 | DZ14251610345 | Fixed support frame after retractor | |
| 40 | DZ14251610346 | Retractor fixed support frame reed nut | |
| 41 | DZ14251610349 | Side sunshade mounting plate | |
| 42 | Q2204216 | Self tapping screw | |
| 43 | DZ14251610344 | Fixed support backplane of the lower left retractor | |
| 44 | DZ14251610368 | Rocker switch plugging cover | |
| 45 | DZ14251610369 | Lower left retractor panel | |
| 46 | DZ14251610311 | Fixed strap on the left side of the miscellaneous box | |
| 47 | DZ14251610312 | Fixed strap on the right side of the miscellaneous box | |
| 48 | DZ14251610379 | Front window rail | |
| 49 | DZ13241571428 | Side rail end cap | |
| 50 | Q2712995 | Cross groove pan head self-tapping screw | |
| 51 | Q2214825 | Cross groove pan head self-tapping screw and large washer assembly | |
| 52 | DZ14251610354 | Upper beam welding angle bracket | |
| 53 | DZ14251610353 | Upper beam right bracket | |
| 54 | DZ14251610351 | Upper beam pipe beam | |
| 55 | DZ14251610355 | Bolt | |
| 56 | DZ14251610352 | Upper beam left bracket | |
| 57 | Q40108 | Шайба А8,4х16х1,6-200НV-МАN183-В4 | |
| 58 | Q2140820 | Винт |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
