Каталог запасных частей к технике: Shaanxi Shacman SX42584V324. ELECTRIC PANEL

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW DAF DongFeng FAW Foton HOWO Hyundai IVECO JAC Motors LGMG MAN Shaanxi SITRAK Studebaker Tata Volvo Автокомпонент Плюс БелАЗ Брянский Арсенал ГАЗ ЗИЛ КАЗ Камский автозавод КрАЗ Мадара МАЗ МЗКТ МоАЗ Нефтекамский автозавод Ставропольский Завод АвтоПрицепов ТАТРА Тонар УралАЗ ЧМЗАП

Модель Не выбрано DeLONG Е-3 (самосвал) (2008) DeLONG Е-3 (тягач) (2008) MAN-F2000 (SX3254JS384) (2008) Shacman F2000 (2013) Shacman F3000 (2013) Shacman SX3255DR385 (2011) Shacman SX3256DR384 (F3000) (2015) Shacman SX3256DT384 (2011) Shacman SX3258DR384—F2000 Shacman SX3316DR366 (F2000) (2011) Shacman SX3316DT366 (2011) Shacman SX3316DT426C Shacman SX3316HT406C Shacman SX4255DV385 (2011) Shacman SX4256NT324 Shacman SX42584V324 Shacman SX42584V384TL Shacman SX5256GJBMR364 (2018) Shacman SX5318GJBDT386TL SX-3255-DR 3804B 6х4

Схема > Не выбрано X3000 HIGH ROOF CAB ASSY FRONT COVER CAR WINDOW WINDSCREEN RINSE SYSTEM/LEFT WINDSCREEN RINSE SYSTEM/LEFT SUN VISOR DASHBOARD MUDGUARDS LEFT DOOR LIMIT RIGHT DOOR LIMIT LEFT DOOR WINDOW LIFTER (ELECTROMOTION) RIGHT DOOR WINDOW LIFTER (ELECTROMOTION) DOOR COVERING LEFT (ELECTROMOTION) DOOR COVERING RIGHT (ELECTROMOTION) LEFT DOOR INNER PANEL ASSENBLY (ELECTROMOTION) RIGHT DOOR INNER PANEL ASSENBLY (ELECTROMOTION) LEFT DOOR SEAL AND DOOR CLASS SEAL RIGHT DOOR SEAL AND DOOR CLASS SEAL DOOR HINGE LEFT DOOR HINGE LEFT DOOR HINGE RIGHT DOOR HINGE RIGHT AIL-ROUND CURTAIN TRANSVERSE CURTAIN FLOOR MAT WIDE SOUND INSULATION BOARD DEVICE UNDER THE ENGINE NOISE INSULATION CAB DASHBOARD PANELLING VIEW MIRROR LEFT VIEW MIRROR RIGHT VIEW MIRROR THE INTERIOR TRIM ASSEMBLY THE INTERIOR TRIM ASSEMBLY THE INTERIOR TRIM ASSEMBLY THE INTERIOR TRIM ASSEMBLY THE INTERIOR TRIM ASSEMBLY THE INTERIOR TRIM ASSEMBLY LEFT FOOT PANEL FOR CAB RIGHT FOOT PANEL FOR CAB ROOF VENT/MANUAL LOWER BERTH UPPER BERTH LEFT WING DAUGHTER BOARD RIGHT WING DAUGHTER BOARD SUNSHADE DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DAMPER SEAT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT TON DRUM STEERING SHAFT MAN 7.5 HOUSING MIDDLE AXLE (STR SUSPENSION) MAN TWO-STAGE DECELERATION DRIVE AXLE REAR AXLE AXLE SHELL (STR SUSPENSION) MAN TWO-STAGE DECELERATION DRIVE MIDDLE AXLE MIDDLE SECTION MAN TWO-STAGE DECELERATION DRIVE IN THE MIDDLE OF THE REAR AXLE MAN TWO-STAGE DECELERATION DRIVE AXLE WHEEL SIDE AIR CLEANING DEVICE (X3000/WP12) COOLER SYSTEM (F3000/WP12) DUSTPROOF NET EXHAUST SYSTEM ENGINE SUSPENSION SHIFTING DEVECE GEAR BOX SUPPOR PULL CLUTCH CONTROL DEVICE PULL-TYPE DIAPHRAGM SPRING CLUTCH DRIVE SHAFT PROTECTION FRAME PROPELLER SHAFT FRONT SUSPENSION (DC95259690622) CAB TILTING MECHANISM L.H. DRIVE VEHICLE SPRING FRONT AIR SPRING AIR CONTROL DEVICE AIR SPRING CONTROL PIPELINE DEVICE REAR SUSPENSION (DC95259520432) FRONT SHOCK ABSORBER (DC95259680451) FRONT STABILIZER ASSY (DC95259680451) WHEELS STEERING COLUMN ADJUSTABLE SINGLE SHAFTS STEERING TRANSMISSION DEVIC FRAM FOREPART ACCESSORY FRAM ASSISTANT CROSS MEMBER FRAM THROTTLE CONTROL DEVICE LNG SYSTEM GAS PIPELINE LNG SYSTEM INSTALLATION (GAS CYLINDER INSTALLATION DIAGRAM) LNG SYSTEM SHIELD (DOUBLE BOTTLE) LNG SYSTEM SHIELD (SINGLE BOTTLE) LNG SYSTEM_2450/500 (STRUCTURE) LNG SYSTEM_450/500 (STRUCTURE) DOUBLE BOTTLE LNG SYSTEM_2450/500_DESEN (PIPELINE) SINGLE BOTTLE LNG SYSTEM_450/500_DESEN (PIPELINE) DOUBLE BOTTLE LNG SYSTEM_2450/500_DESEN (UPPER BOTTLE) DOUBLE BOTTLE LNG SYSTEM_2450/500_DESEN (LOWER BOTTLE) SINGLE BOTTLE LNG SYSTEM 450/500_DESEN DOUBLE BOTTLE LNG SYSTEM_2450/500_ SINOMA (PIPELINE) SINGLE BOTTLE LNG SYSTEM_450/500_ SINOMA (PIPELINE) DOUBLE BOTTLE LNG SYSTEM_2450/500_SENGDAIN (PIPELINE) SINGLE BOTTLE LNG SYSTEM_450/500_ SAINT DYNE (PIPELINE) DOUBLE BOTTLE LNG SYSTEM_2450/500_SENGDAIN (UPPER BOTTLE) DOUBLE-BOTTLE LNG SYSTEM_2450/500_SENGDAINE (LOWER BOTTLE) AND SINGLE-BOTTLE LNG SYSTEM 450/500_SENGDAINE DOUBLE BOTTLE LNG SYSTEM_2450/500_TIANHAI (PIPELINE) DOUBLE BOTTLE LNG SYSTEM_2450/500_TIANHAI (UPPER BOTTLE) DOUBLE BOTTLE LNG SYSTEM_2450/500_TIANHAI (LOWER BOTTLE) SERVE BRAKE CONTROL DEVICE PARKING BRAKE CONTROL DEVICE CONNECTING PARTS,LINE & NIPPLE JOINT CONNECTING PARTS,LINE & NIPPLE JOINT SERVE BRAKE CONTROL DEVICE PARKING BRAKE CONTROL DEVICE PNEUMATIC HORN DISTRIBUTION FITTING ASSEMBLE TRAILER LINE AIR TANK FIXING (I) AIR TANK FIXING (II) RELAY VALVE FIXING CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT SINGLE FRONT AXLE BRAKE LINE SINGLE FRONT AXLE BRAKE LINE SWITCH LOUDHAILER WINDOW LIFTER REMOTE CONTROL FRONT WINDSHIELD GLASS SPRAY PUMP (24V) FLOODLIGHT (HIGH ROOF) CAB WIRING HARNESS (INSIDE THE INSTRUMENT PANEL) DOOR WIRING ROOF WIRING LOOMS ON CAB OUTER CBCU/ABS INSTRUMENT CLUSTER ELECTRIC PANEL ELECTRIC PANEL ELECTRIC PANEL SCUTCHEON COMBINATION SWITCH CABIN WIRING ASSEMBLY BRAKE LIGHT SWITCH DIAGNOSIS BRACKET BODY CONTROLLER ECU BRACKET ABS CONTROLLER WIRING HARNESS SWITCH ROCKER SWITCH FUSE CAB ELECTRICAL APPLIANCES/ACCESSORIES/TIANXINGJIAN/REGULATORY EDITION/BEIDOU/MULTIMEDIA SCREEN CAB ELECTRICAL APPLIANCES/ACCESSORIES/TIANXINGJIAN/REGULATORY EDITION/BEIDOU/MULTIMEDIA SCREEN CAB ELECTRICAL APPLIANCES/ACCESSORIES/TIANXINGJIAN/REGULATORY EDITION/BEIDOU/MULTIMEDIA SCREEN CAB ELECTRICAL APPLIANCES/ACCESSORIES/INVERTER POWER SUPPLY/BCM LOOMS ON CAB OUTER FRONT TERMINAL BOX SWITCH SWITCH CIGRATE COMBINATION SWITCH BRAKE LIGHT SWITCH REAR LIGHT LOUDHAILER HEADLAMPS WITH FLASHER TAILLIGHT FLASHERS IN FOOTPLANE SIDE MARKER LIGHT SUNSHADE LAMPS ROOF WIRING LOOMS ON CAB OUTER WORKING LAMP CHASSIS ELECTRICAL APPLIANCES/TRACTORS CHASSIS ELECTRICAL APPLIANCES/ABS SOLENOID VALVES AND WIRING HARNESSES CHASSIS ELECTRICAL APPLIANCES/ABS TRAILER SOCKETS CHASSIS ELECTRICAL APPLIANCES/ACCESSORIES/ELECTRIC FLIP CHASSIS ELECTRICAL APPLIANCES/TRACTORS CHASSIS ELECTRICAL APPLIANCES/TRACTORS CHASSIS ELECTRICAL APPLIANCES/TRACTORS S32 SIDE MARKER LAMP AND CHASSIS ELECTIRC EQUIPMENT BATTERY BOX MOUNTING BATTERY BOX MAIN BATTERY SWITCH HEADLAMPS WITH FLASHER TAILLIGHT FLASHERS IN FOOTPLANE SIDE SIGN LIGHT (FENDER) SUNSHADE LAMPS ROOF WIRING LOOMS ON CAB OUTER AIR CONDITION CONTROLLER SENSOR AIR SYSTEM AIR INTAKE BOX ON CAB AIR SYSTEM AIR DUCT AIR CONDITION PIPES HEATER DIVICE (WITH AIR CONDITION) AIR SYSTEM AIR SYSTEM AIR SYSTEM AIR DUCT AIR CONDITION PIPES HEATER DIVICE (WITH AIR CONDITION) CAB LOCKING DEVICE CAB HYDRAULIC TILTING EQUIPMENT LEFT WING SUB-BOARD ON THE REAR SIDE OF THE CAB RIGHT WING SUB-BOARD ON THE REAR SIDE OF THE CAB LEFT WING DAUGHTER BOARD FENDER RIGHT FOOT PANEL LEFT FOOT PANEL BUMPER RADIATOR PROTECTOR SYSTEM OPERATING FLAT ROOF AND LADDER AIR TANK FIXING (I) DRAW GEAR SEMI TRAILING BASE SPARE WHEEL FRAME FENDER DC95189951007 PUBLIC PARAMETERS CAB DECORATE SCUTCHEON GLISTEN MARK

1

2

3

4

5

6

7

8

9

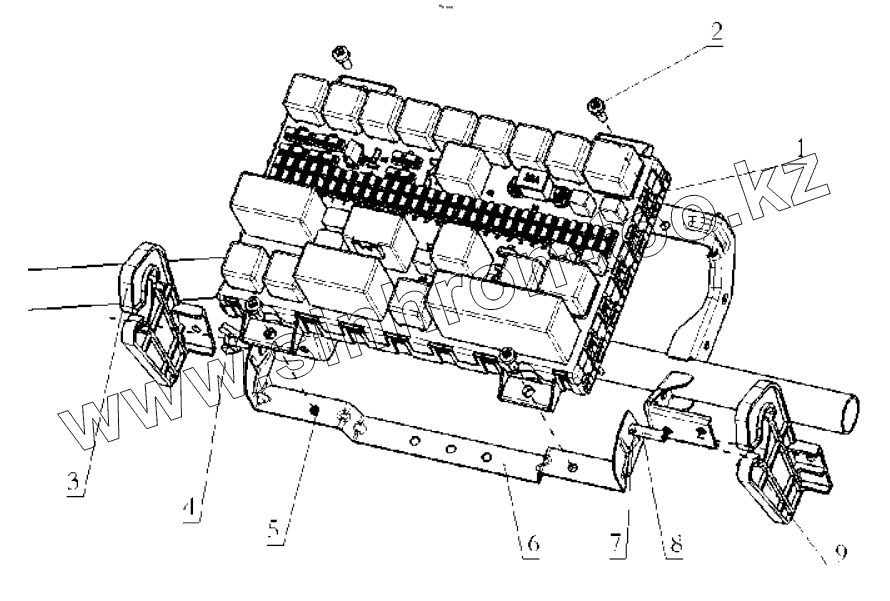

Позиция на иллюстрации	Заводской номер детали		Название детали
1	DZ97189584361		Center eletric panel
2	Q2300620		Pan-head screw
3	DZ97189584320		Center eletric panel upturn bracket
4	Q39008		Wing nut
5	Q37106		Weld nut
6	DZ97189584311		Wire fix bracket
7	DZ97189584313		Position pin
8	DZ97189584312		Wire fix bracket shift
9	DZ97189584330		Center eletric panel upturn bracket

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
