CAB HYDRAULIC FLIP SYSTEM

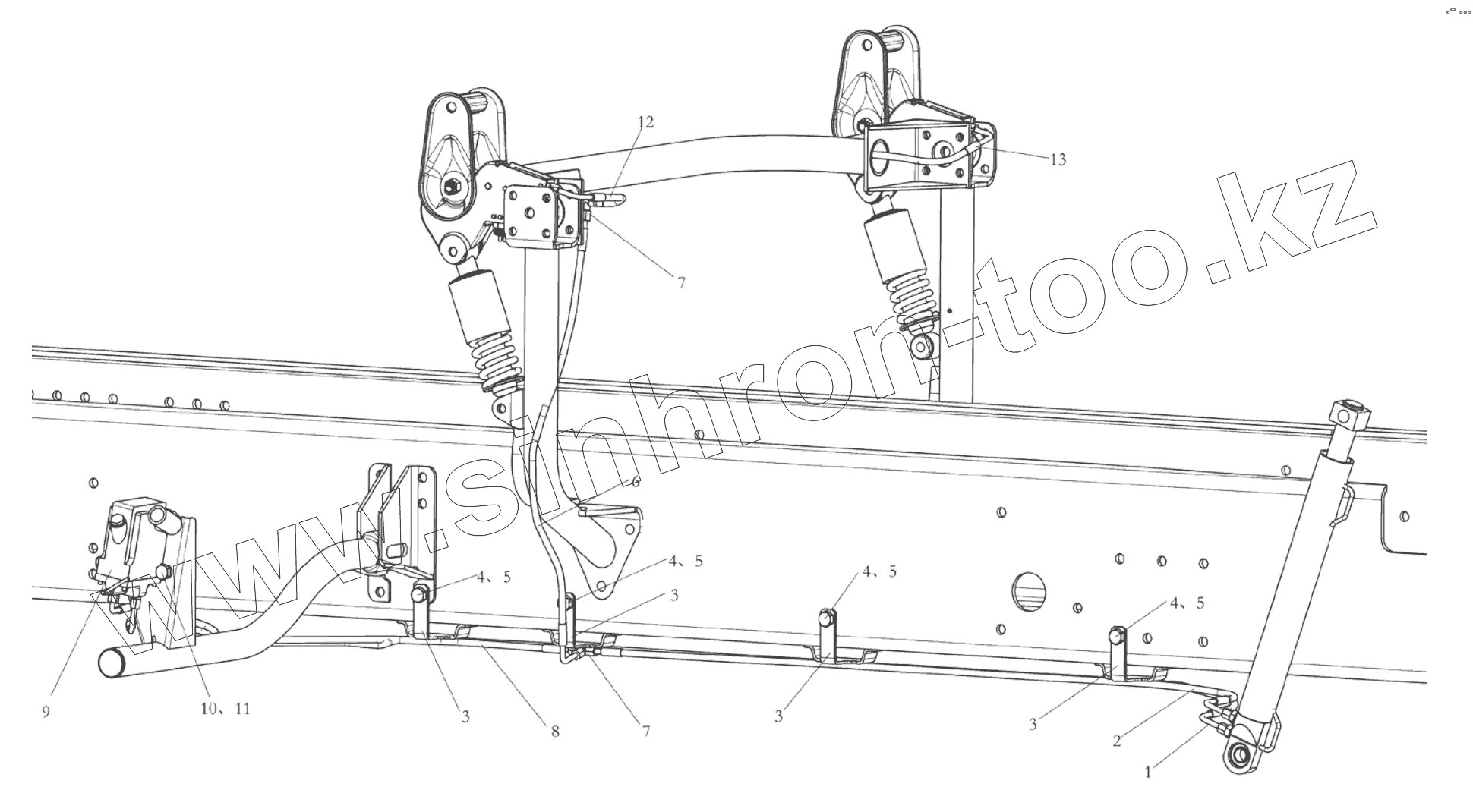

Каталог запасных частей к технике: Shaanxi Shacman SX4256NT324. CAB HYDRAULIC FLIP SYSTEM
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
DAF
DongFeng
FAW
Foton
HOWO
Hyundai
IVECO
JAC Motors
LGMG
MAN
Shaanxi
SITRAK
Studebaker
Tata
Volvo
Автокомпонент Плюс
БелАЗ
Брянский Арсенал
ГАЗ
ЗИЛ
КАЗ
Камский автозавод
КрАЗ
Мадара
МАЗ
МЗКТ
МоАЗ
Нефтекамский автозавод
Ставропольский Завод АвтоПрицепов
ТАТРА
Тонар
УралАЗ
ЧМЗАП
Модель
Не выбрано
DeLONG Е-3 (самосвал) (2008)
DeLONG Е-3 (тягач) (2008)
MAN-F2000 (SX3254JS384) (2008)
Shacman F2000 (2013)
Shacman F3000 (2013)
Shacman SX3255DR385 (2011)
Shacman SX3256DR384 (F3000) (2015)
Shacman SX3256DT384 (2011)
Shacman SX3258DR384—F2000
Shacman SX3316DR366 (F2000) (2011)
Shacman SX3316DT366 (2011)
Shacman SX3316DT426C
Shacman SX3316HT406C
Shacman SX4255DV385 (2011)
Shacman SX4256NT324
Shacman SX42584V324
Shacman SX42584V384TL
Shacman SX5256GJBMR364 (2018)
Shacman SX5318GJBDT386TL
SX-3255-DR 3804B 6х4
Схема
>
Не выбрано
F3000N CAB WELDING ASSEMBLY
LEFT FENDER
RIGHT FENDER
FRONT COVER
SUN VISOR
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
DASHBOARD (10 INTERIOR)
HAND GRIPER
TOOL BOX
LOWER BERTH
UPPER BERTH
AIL-ROUND CURTAIN
TRANSVERSE CURTAIN
LUGGAGE RACK
HEADLINING WITH MOUNTING AND GRAB HANDLE
SIDE-WALL PANELING CLOSED WITH NOUNTING I
FLOOR MATS FRONT AND ANTI-SKID STRIP
SUN VISOR ROLLER
DASHBOARD PANELLING
ENGINE COWLING INSULATION
SOUND PROOFING
NOISE INSULATION CAB
MELT-ON FOIL
MELT-ON FOIL
LEFT/RIGHT FENDER BRACKET
FENDER LEFT BEHIND CAB
FENDER RIGHT BEHIND CAB
FOOT PANEL BRACKET
LEFT DOOR STEP
RIGHT DOOR STEP
BUMPER AND FRONT BRACKET
SEMI TRAILING BASE
CAB VEHICLE TYPE LETTERS
CAB DECORATIVE SIGNS AND REFLECTIVE SIGNS
FRAM FOREPART ACCESSORY
DRAW GEAR
SEMI TRAILING BASE
OPERATING FLAT ROOF AND LADDER
CAB TILTING MECHANISM L.H. DRIVE VEHICLE
FRONT BEARING SPRING
CAB LOCKING DEVICE
CAB HYDRAULIC FLIP SYSTEM
DOOR WINDOW LIFTER LEFT OPERATED
DOOR WINDOW LIFTER RIGHT OPERATED
DOOR AND DOOR GLASS
DOOR AND DOOR GLASS
DOOR COVERING LEFT
DOOR COVERING RIGHT
DOOR ARRESTOR AND DOOR ACUATING SYSTEM RIGHT
DOOR HINGE LEFT AND RIGHT
VIEW MIRROR
LEFT VIEW MIRROR
RIGHT VIEW MIRROR
SEAT
SAFETY BELT
ROOF VENT
WINDSHIELD ASSEMBLY
WIPER SYSTEM
WINDSCREEN WASHER PUMP AND ACCESSORIES
PUMP
MAN7.5 TON DRUM STEERING SHAFT
SINGLE SHAFTS STEERING TRANSMISSION DEVIC
STEERING COLUMN ADJUSTABLE
HYDRAULIC DEVICE
AXLE HOUSING OF MAN TWO-STAGE REDUCTION DRIVE AXLE (STR SUSPENSION)
REAR AXLE HOUSING OF MAN TWO-STAGE REDUCTION DRIVE AXLE (STR SUSPENSION)
MID SECTION OF MAN TWO-STAGE DECELERATION DRIVE
MID SECTION OF MAN TWO-STAGE DECELERATION DRIVE
MID SECTION OF MAN TWO-STAGE DECELERATION DRIVE REAR AXLE
MAN TWO-STAGE REDUCTION DRIVE AXLE
PROPELLER SHAFT SYSTEM
FRONT SUSPENSION (DC95259690702)
FRONT SHOCK ABSORBER (DC95259680214)
FRONT STABILIZER ASSY (DC95259680214)
REAR SUSPENSION (DC95259520500)
REAR STABILIZER ASSY (DC95259680214)
CAR WHEEL
FRAM ASSY
FRAM ASSISTANT CROSS MEMBER
AIR CLEANING DEVICE (X3000/WP12)
DUSTPROOF NET
COOLER SYSTEM (F3000/WP12)
F3000 EXHAUST PIPE AND MUFFLER (WP12 NATIONAL IV ENGINE 6X4)
UREA SUPPLY TANK
ENGINE SUSPENSION
GEAR BOX SUPPORT
FUEL TANK ASSEMBLY
ACCELEROGRAPH CONTROL DEVICE
EXHAUST BRAKE CONTROL
PULL DIAPHRAGM CLUTCH 430
PULL CLUTCH CONTROL DEVICE
SHIFTING DEVECE
AIR COMPESSOR OUTER LINE
SERVE BRAKE CONTROL DEVICE
PARKING BRAKE CONTROL DEVICE
AIR TANK FIXING (I)
AIR TANK FIXING (II)
AIR TANK FIXING (III)
RELAY VALVE FIXING (I)
DOUBAL CIRCUIT BRAKE SYSTEM II FOR TRACTOR 6X4
CONNECTING PARTS, LINE & NIPPLE JOINT
CONNECTING PARTS, LINE & NIPPLE JOINT
CONNECTING PARTS, LINE & NIPPLE JOINT
BAROMETRIC PRESSURE SENSOR
VALVE
SWITCH, RADIO AND CIGARETTE LIGHTER
SWITCH
COMMBINATION SWITCH
RADIO LOUDHAILER TRANSFORMER WIRE
BRAKE SWITCH
COMBINATION GAUGE ASSY WITH FRAME
SWITCH, RADIO AND CIGARETTE LIGHTER
EXHAUST BRAKE SWITCH
NEAR SWITCH
DOOR LAMP SWITCH
PLUG KEY FOR ELECTRIC WINDOW LIFTER SWITCH
RELAY, FUSE
DIAGNOSTIC INTERFACE DEVICE BOARD
REAR LIGHT
FLOODLIGHT
FLOODLIGHT ON REAR PANNEL
HEADLAMPS
TURN SIGNAL (BUMPER)
SUNSHADE LIGHTING
SIDE-MARKER LIGHTS
COMBINATION TAILLIGHT, BRACKET (THREE-STAGE FENDER)
LOOMS ON CAB OUTER
ELECTRIC PANEL
CENTER ELECTRIC PANEL II
ELECTRIC PANEL SCUTCHEON
CENTRAL ELECTRICAL SYSTEM (IN THE DASHBOARD)
SWITCH
WIRING
FUSE
OTHER CABIN WIRING
RELAY, FUSE
SWITCH
OTHER CABIN WIRING
RELAY, FUSE
OTHER CABIN WIRING
RELAY, FUSE
WIRING
PLUG
PLUG KEY
CHASSIS APPLIANCES / WPE40 / COLD AREA
CHASSIS APPLIANCES / WPE40 / COLD AREA
CHASSIS APPLIANCES / WPE40
CHASSIS APPLIANCES / WPE40
CHASSIS APPLIANCES / WPE40
CHASSIS APPLIANCES / WPE40
CHASSIS APPLIANCES / COLD AREA
CHASSIS APPLIANCES
CHASSIS APPLIANCES / COLD AREA
CHASSIS APPLIANCES / COLD AREA
CHASSIS APPLIANCES
CHASSIS APPLIANCES / COLD AREA
CHASSIS ELECTRICAL / ADDITIONAL / S32 / WABCO 6ABS / VARIABLE SECTION / COLD ZONE / NEW
CHASSIS ELECTRICAL / ADDITIONAL / S32 / WABCO 6ABS / VARIABLE SECTION / COLD ZONE / NEW
CHASSIS APPLIANCES / ADDITIONAL / SIDE MARKER LIGHTS / 6 4 / FENDER BRACKET / COLD AREA
CHASSIS APPLIANCES / ADDITIONAL / SIDE MARKER LIGHTS / 6 4 / FENDER BRACKET / COLD AREA
BUZZER
BATTERY BOX
MAIN POWER SWITCH (CENTER SWITCH)
AIR SYSTEM
AIR SYSTEM
AIR INTAKE BOX ON CAB
AIR DUCT
AIR CONDITION PIPES
HEATER DEVICE (WITH AIR CONDITION)
HEATER DEVICE (WITH AIR CONDITION) (APPLICABLE TO WP10, WP12, WD12 ENGINES)
TEMPERATURE SENSOR
AIR CONDITION CONTROLLER
ELECTRONIC CONTROL UNITS FOR AIR CONDITIONING
PARKING WEDGE
1
2
3
3
3
3
4
4
4
4
5
5
5
5
6
7
7
8
9
10
11
12
13
Позиция на иллюстрации
Заводской номер детали
Название детали
1
DZ93259820051
High-pressure hose
2
DZ93259820052
High-pressure hose
3
DZ93259820061
Bracket
4
Q150B1440
Hex bolt
5
Q33214
Гайка
6
DZ93259820054
High-pressure hose
7
190003559482
Тройник
8
DZ93259820053
High-pressure hose
9
DZ93259820100
Improved hydraulic manual oil pump
10
Q150B1025
Болт
11
Q33210
Гайка
12
DZ93259820048
High-pressure hose
13
DZ93259820047
High-pressure hose
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
