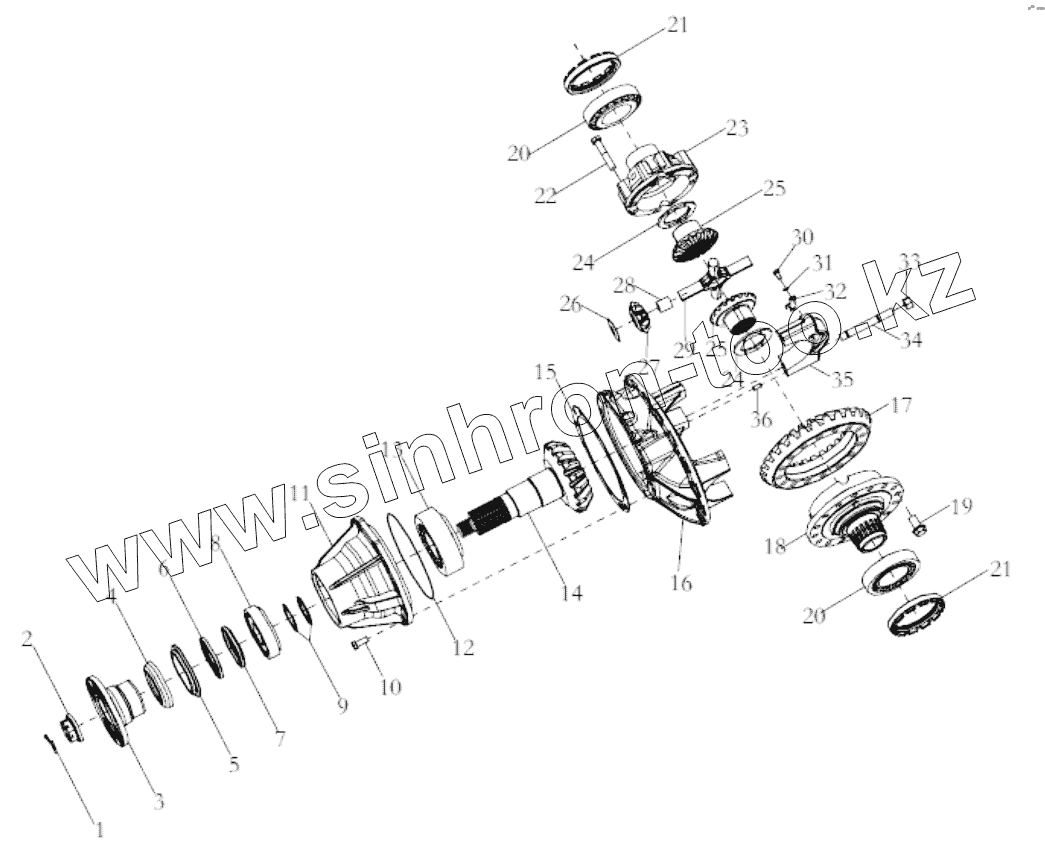

Каталог запасных частей к технике: Shaanxi Shacman SX4255DV385. FRONT AXLE DRIVE
1
2
3
4
5
6
7
8
9
10
10
10
10
11
11
11
11
11
11
11
11
11
12
12
12
12
13
13
13
13
13
13
13
13
13
14
14
14
14
14
14
14
14
14
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
16
16
16
16
17
17
17
17
17
17
17
17
17
18
18
18
18
18
18
18
18
18
19
19
19
19
20
20
20
20
20
20
21
21
21
21
21
21
22
22
22
22
23
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
24
25
25
26
27
28
29
30
31
32
33
34
35
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 190003920450 | Cotter pin | |
| 2 | 179000320013 | Flange nut | |
| 3 | DZ9112320632 | Flange | |
| 4 | 179000320012 | Prevented dust cap | |
| 5 | 199012320121 | Ring | |
| 6 | 99012320184 | Кольцо уплотнительное | |
| 7 | 9912320030 | Уплотнительная шайба валика | |
| 8 | 190003326236 | Row-steep roller bearing | |
| 9 | 188000320002 | Adjusting washer | |
| 10 | 188000320003 | Adjusting washer | |
| 10 | 190003802623 | Hex bolt | |
| 11 | 188000320004 | Adjusting washer | |
| 11 | 199012320103 | Bearing seat | |
| 11 | 199012320131 | Bearing seat | |
| 12 | 199012320133 | Packing ring | |
| 12 | 188000320005 | Adjusting washer | |
| 13 | 190003326547 | Row-steep roller bearing | |
| 13 | 190003326546 | Row-steep roller bearing | |
| 13 | 188000320006 | Adjusting washer | |
| 14 | DZ9114420658 | Bevel drive gear | |
| 14 | DZ9114420659 | Bevel drive gear | |
| 14 | 188000320007 | Adjusting washer | |
| 15 | 199012320175 | Adjusting washer | |
| 15 | 199012320174 | Adjusting washer | |
| 15 | 199012320176 | Adjusting washer | |
| 15 | 199012320173 | Adjusting washer | |
| 15 | 188000320008 | Adjusting washer | |
| 16 | 188000320009 | Adjusting washer | |
| 16 | 199012320097 | Main speed reducer case | |
| 17 | 188000320010 | Adjusting washer | |
| 17 | 199000420063 | Bevel gear | |
| 17 | 199014320126 | Bevel gear | |
| 18 | 188000320011 | Adjusting washer | |
| 18 | 199012320027 | Differential housing | |
| 18 | 199012320197 | Differential housing | |
| 19 | 188000320012 | Adjusting washer | |
| 19 | DZ9114320011 | Болт | |
| 20 | 188000320013 | Adjusting washer | |
| 20 | 190003326148 | Row-steeproller bearing | |
| 21 | 188000320014 | Adjusting washer | |
| 21 | 138090320159 | Differential adjusting nut | |
| 22 | 190003803712 | Hex bolt | |
| 22 | 188000320015 | Adjusting washer | |
| 23 | 199012320008 | Differential case | |
| 24 | 118000320131 | Adjusting washer | |
| 24 | 118000320132 | Adjusting washer | |
| 24 | 199012320129 | Adjusting washer | |
| 24 | 138090320169 | Adjusting washer | |
| 24 | 118000320012 | Adjusting washer | |
| 25 | 199012320009 | Axle shaft gear | |
| 26 | 199012320150 | Planet gear washer | |
| 27 | DZ9112320711 | Planet gear | |
| 28 | DZ9112320712 | Planet gear bush | |
| 29 | 199014320091 | Cross axle | |
| 30 | 190003802411 | Hex bolt | |
| 31 | 190003931102 | Шайба пружинная | |
| 32 | DZ9112320083 | Кольцо стопорное | |
| 33 | 190003888459 | Гайка VМ16х1,5DIN980 | |
| 34 | 190003810852 | Stud | |
| 35 | DZ9112320002 | Differential bearing cover | |
| 36 | 190003901420 | Pin |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
