Q40306
Q40306
Q40306
Q40106
Q40106
Q40106
1
2
2
2
3
4
5
6

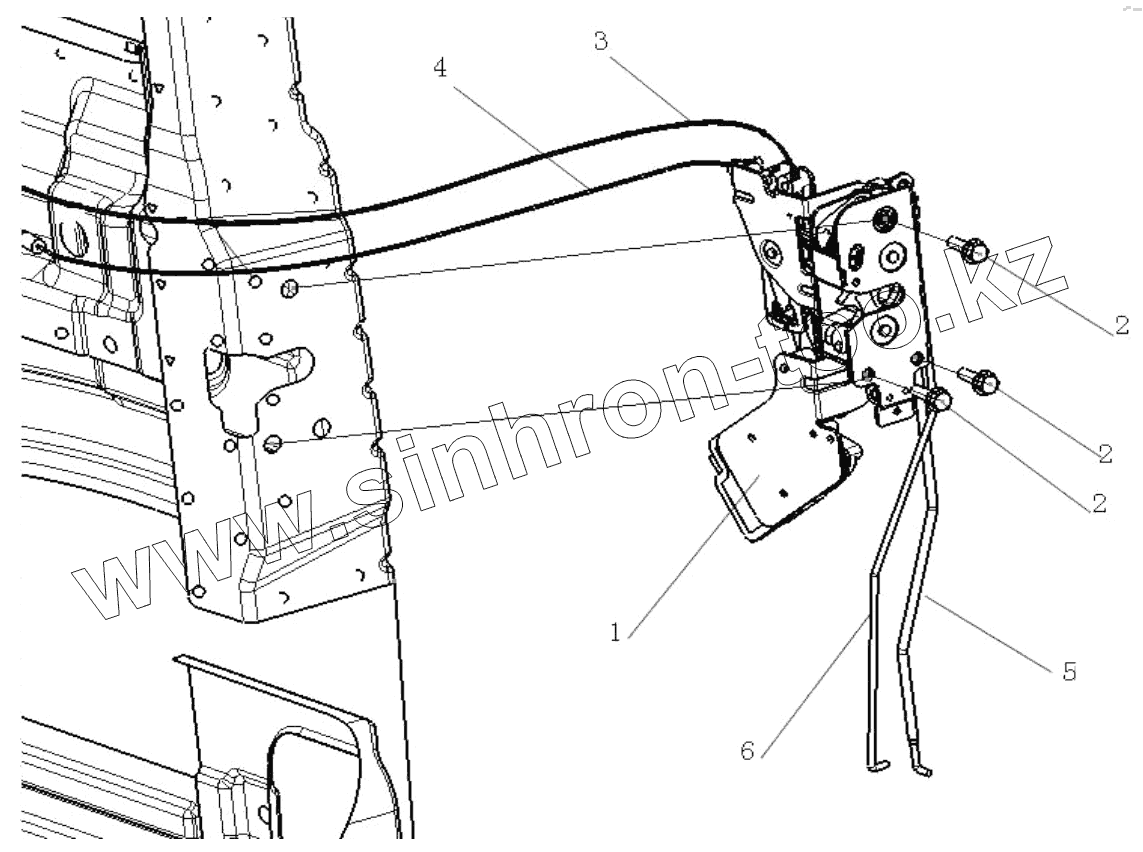

Позиция на иллюстрации
Заводской номер детали
Название детали
Q40306
Q40306
Шайба
Q40106
Q40106
Шайба 8х16х2-SТ-А3С
1
DZ15221340021
Right Door Lock
2
Q2140612
Гайка
3
DZ15221340028
Right Door Lockup Plate
4
DZ15221340014
Inguide Plate
5
DZ15221340022
Right Door Outguide Plate
6
DZ15221340023
Right Door Lock Guide Plate
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
