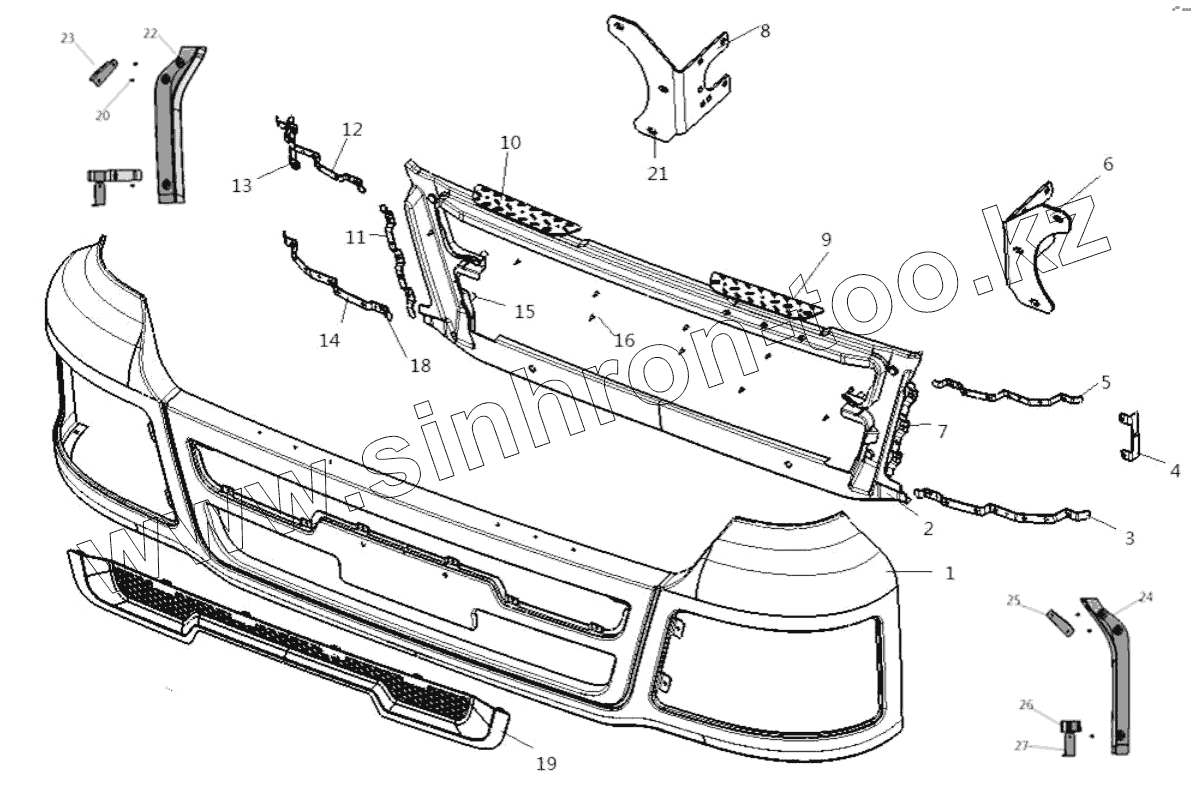

Каталог запасных частей к технике: Shaanxi Shacman SX3316HT406C. NEW M3000 DUMP TRUCK BUMPER

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
3
3
4
5
5
6
7
8
9
10
11
12
12
13
14
14
15
16
18
19
20
21
22
23
24
25
26
27
Позиция на иллюстрации Заводской номер детали Название детали
1 DZ96259622528 Bumper noumenon
1 DZ96259622110 Bumper noumenon
2 DZ96259622330 Bumper bracket
3 DZ96259622240 Left headlight fixation bracket assy (low)
3 DZ96259622522 Left headlight fixation bracket assy (low)
4 DZ96259622270 Left headlight fixation bracket assy (out)
5 DZ96259622230 Left headlight fixation bracket assy (up)
5 DZ96259622520 Left headlight fixation bracket assy (up)
6 DZ96259622250 Bumper fixation up of left assy
7 DZ96259622260 Left headlight fixation bracket assy (inner)
8 DZ96259622260 Bumper fixation up of right assy
9 DZ93259932161 Skidproof board upper
10 Q4400513T19 Rivet
11 DZ96259622310 Right headlight fixation bracket assy (inner)
12 DZ96259622280 Right headlight fixation bracket assy (up)
12 DZ96259622521 Right headlight fixation bracket assy (up)
13 DZ96259622320 Right headlight fixation bracket assy (out)
14 DZ96259622290 Right headlight fixation bracket assy (low)
14 DZ96259622523 Right headlight fixation bracket assy (low)
15 Q151B1230 Hex bolt
16 Q2714213 Pan head self-tapping screw
17 Q40205 Шайба
18 Q37105 Sealing nut
19 DZ96259622210 Bumper grid
20 Q2300516 Pan head screw and washer
21 Q33212 Гайка
22 DZ96259622460 Left side decorate plate
23 DZ96259622420 Left side decorate plate bracket
24 DZ96259622470 Right side decorate plate
25 DZ96259622430 Right side decorate plate
26 DZ96259622480 Bumper left joint bracket
27 DZ96259622490 Bumper right joint bracket
28 DZ96259622440 Decorate fixation bracket
29 DZ93259622381 Bumper decorate block
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
