Каталог запасных частей к технике: Shaanxi Shacman SX3316HT406C. HIGH-ROOF CAB SUNDRIES BOX BODY

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW DAF DongFeng FAW Foton HOWO Hyundai IVECO JAC Motors LGMG MAN Shaanxi SITRAK Studebaker Tata Volvo Автокомпонент Плюс БелАЗ Брянский Арсенал ГАЗ ЗИЛ КАЗ Камский автозавод КрАЗ Мадара МАЗ МЗКТ МоАЗ Нефтекамский автозавод Ставропольский Завод АвтоПрицепов ТАТРА Тонар УралАЗ ЧМЗАП

Модель Не выбрано DeLONG Е-3 (самосвал) (2008) DeLONG Е-3 (тягач) (2008) MAN-F2000 (SX3254JS384) (2008) Shacman F2000 (2013) Shacman F3000 (2013) Shacman SX3255DR385 (2011) Shacman SX3256DR384 (F3000) (2015) Shacman SX3256DT384 (2011) Shacman SX3258DR384—F2000 Shacman SX3316DR366 (F2000) (2011) Shacman SX3316DT366 (2011) Shacman SX3316DT426C Shacman SX3316HT406C Shacman SX4255DV385 (2011) Shacman SX4256NT324 Shacman SX42584V324 Shacman SX42584V384TL Shacman SX5256GJBMR364 (2018) Shacman SX5318GJBDT386TL SX-3255-DR 3804B 6х4

Схема > Не выбрано NEW M3000 CAB BODY PART OF THE CAB FENDER LEFT FOOT PANEL FOR CAB RIGHT FOOT PANEL FOR CAB FRONT COVER FRONT COVER DASHBOARD LH, RH AND LOW RIGHT BRACKET DASHBOARD MID BRACKET DASHBOARD ASSY DASHBOARD PANEL ASSY DRIVER KNEE BOLSTER ASSY PASSENGER KNEE BOLSTER ASSY SECOND DASHBOARD ASSY TOOL BOX LEFT DOOR LIMIT RIGHT DOOR LIMIT LEFT DOOR WINDOW LIFTER ASSEMBLY RIGHT DOOR WINDOW LIFTER ASSEMBLY LEFT DOOR INNER PANEL ASSEMBLY LEFT DOOR INNER PANEL ASSEMBLY RIGHT DOOR INNER PANEL ASSEMBLY RIGHT DOOR INNER PANEL ASSEMBLY LEFT DOOR SEAL RIGHT DOOR SEAL LEFT DOOR HINGE RIGHT DOOR HING LEFT DOOR LOCK SYSTEM LEFT LOCK SET IN CAB LEFT DOOR LOCK SCREW RIGHT DOOR LOCK SYSTEM RIGHT LOCK SET IN CAB RIGHT DOOR LOCKSCREW SEAT SAFETY BELT LOWER BERTH HIGH-ROOF CAB INTERIOR TRIM PANEL HIGH-ROOF CAB SUNDRIES BOX BODY LEFT SIDE WALL INNER GUARD PLATE RIGHT SIDE WALL INNER GUARD PLATE REAR WALL INNER GUARD PLATE ASSEMBLY FLOOR MATS HEAT INSULATION WINDSCREEN SIDE-WINDOW AND REAR-WINDOW WINDSCREEN, WIPER ASSEMBLY WATER CONTAINER VIEW MIRROR SUN VISOR HEAT INSULATION DECORATIVE ASSEMBLY FRONT AXLE (MAN 5.5 TONS) FRONT BRAKE FRONT AXLE (MAN 5.5T) MAN DOUBLE-STAGE REDUCTION DRIVE AXLE MIDDLE AXLE HOUSING (STR SUSPENSION) MAN TWO-STAGE REDUCTION DRIVE AXLE REAR AXLE HOUSING (STR SUSPENSION) MAN DOUBLE-STAGE REDUCTION DRIVE MIDDLE AXLE MIDDLE SECTION MAN TWO-STAGE REDUCTION DRIVE THE MIDDLE SECTION OF THE REAR AXLE MAN TWO-STAGE REDUCTION DRIVE AXLE WHEEL SIDE AIR CLEANING DEVICE COOLER SYSTEM (NEW M3000/ISM) EXPANSION BOX SYSTEM AFTERTREATMENT SYSTEM (ISM ENGINE) UREA SUPPLY TANK ENGINE SUSPENSION GEAR BOX SUPPORT SHIFTING DEVECE PULL DIAPHRAGM CLUTCH О¦430 PULL CLUTCH CONTROL DEVICE PROPELLER SHAFT FRONT SUSPENSION (DC95319690101) REAR SUSPENSION в…  (DC95319520801) REAR SUSPENSION в…Ў (DC95319520801) FRONT SHOCK ABSORBER (DC95319680125) WHEELING SYSTEM DOUBLE SHAFTS STEERING TRANSMISSION DEVICE STEERING COLUMN ADJUSTABLE STEERING HYDRAULIC DEVICE FRAME ASSY FRAME ASSIST CROSS MEMBER ASSY ALUMINUM ALLOY FUEL TANK ASSEMBLY ACCELEROGRAPH CONTROL DEVICE AIR COMPRESSOR PIPELINE CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT RELAY VALVE FIXING (в… ) AIR TANK FIXING (в… ) AIR TANK FIXING (в…Ў) AIR TANK FIXING (в…Ў) AIR TANK FIXING (в… ) AIR TANK FIXING (в… ) AIR TANK FIXING (в… ) AIR TANK FIXING (в…Ў) AIR TANK FIXING (в… ) AIR TANK FIXING (в… ) AIR TANK FIXING AIR TANK FIXING (в…Ў) AIR TANK FIXING RELAY VALVE FIXING (в… ) CONNECTING PARTS, LINE & NIPPLE JOINT LINE AND NIPPLE JOINT DIAPHRAGM BRAKE CHAMBER AUX.BRAKE CHAMBER DOUBLE FRONT AXLE DRUM BRAKE AIR TANK FIXING (C4) AIR TANK FIXING CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT SERVE BRAKE CONTROL DEVICE PARKING BRAKE CONTROL DEVICE AIR OPERATOR FOR POWER TAKE-OFF CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CAB ELECTRICAL/NEW M3000/ADD-ON/TIANXINGJIAN BD VERSION/WITHOUT CAR SCREEN FEED BACK RADIO SWITCH CIGAR LIGHTER ANTENNA, SPEAKER RIGHT HEAD LIGHT WIRE HARNESS VALVE INSTRUMENT CLUSTER COMBINATION SWITCH COMBINATION SWITCH ADAPTER WIRING HARNESS RELAY FUSE BOX, RELAY INSTRUCTION PLATE MULTI-POWER FUEL-SAVING SWITCH CONTROLLER BODY ELECTRICAL BOX MOUNTING PLATE ECU ELECTRIC PLATE MAIN WIRE HARNESS OF CAB SWITCH ABS CONTROLLER DOOR LAMP SWITCH INNER LIGHT CLEARANCE LAMP SIDE TURN SIGNAL LAMP TOP CEILING WIRE HARNESS FLOOR WIRE HARNESS DOOR WIRE HARNESS CHASSIS ELECTRICAL APPLIANCES/NEW M3000/ISME40/BIG INTEGRATION/8Г—4/6Г—2/AUTONOMOUS DCU/DUMP TRUCK CHASSIS ELECTRICAL APPLIANCES/NEW M3000/ISME40/BIG INTEGRATION/8Г—4/6Г—2/AUTONOMOUS DCU/DUMP TRUCK CHASSIS ELECTRICAL APPLIANCES/NEW M3000/ISME40/BIG INTEGRATION/8Г—4/6Г—2/AUTONOMOUS DCU/DUMP TRUCK CHASSIS ELECTRICAL APPLIANCES/NEW M3000/ISME40/BIG INTEGRATION/8Г—4/6Г—2/AUTONOMOUS DCU/DUMP TRUCK CHASSIS ELECTRICAL APPLIANCES/NEW M3000/ISME40/BIG INTEGRATION/8Г—4/6Г—2/AUTONOMOUS DCU/DUMP TRUCK CHASSIS ELECTRICAL APPLIANCES/NEW M3000/ISME40/BIG INTEGRATION/8Г—4/6Г—2/AUTONOMOUS DCU/DUMP TRUCK CHASSIS ELECTRICAL APPLIANCES/NEW M3000/ISME40/BIG INTEGRATION/8Г—4/6Г—2/AUTONOMOUS DCU/DUMP TRUCK CHASSIS ELECTRICAL APPLIANCES/NEW M3000/ISME40/BIG INTEGRATION/8Г—4/6Г—2/AUTONOMOUS DCU/DUMP TRUCK CHASSIS ELECTRICAL/NEW M3000/NON-TRACTOR/K40/8Г—4/REAR SUSPENSION 1000/JACOB CHASSIS ELECTRICAL/NEW M3000/NON-TRACTOR/K40/8Г—4/REAR SUSPENSION 1000/JACOB CHASSIS ELECTRICAL/NEW M3000/NON-TRACTOR/K40/8Г—4/REAR SUSPENSION 1000/JACOB CHASSIS ELECTRICAL/ADDITIONAL/DUMP TRUCK CHASSIS ELECTRICAL/NEW M3000/ADDITIONAL/K40/8Г—4/DOMESTIC 4ABS BATTERY BOX MOUNTING BATTERY BOX MAIN POWER SWITCH (SWITCH IN THE MIDDLE) HEADLAMPS WITH FLASHER SIDE MARKER LIGHT (FENDER) TAILLIGHT BRACKET/M3000/DUMP TRUCK LOWERING HEIGHT/WELDING PROTECTIVE COVER CHASSIS ELECTRICAL/ADDITIONAL/TRANSFER CASE (ELECTRICALLY CONTROLLED AIR CONTROL) AIR CONDITIONING SYSTEM AIR CONDITIONER BODY AIR DUCT AIR CONDITION PIPES AIR CONDITIONING SYSTEM AIR CONDITIONER BODY AIR DUCT CAB TILTING MECHANISM L.H. DRIVE VEHICLE FRONT BEARING SPRING CAB LOCKING DEVICE CAB HYDRAULIC TILTING EQUIPMENT FENDER NEW M3000 ENGINEERING VEHICLE STEPPING ON THE LEFT SIDE NEW M3000 ENGINEERING VEHICLE STEPPING ON THE RIGHT SIDE NEW M3000 DUMP TRUCK BUMPER CAB VEHICLE TYPE LETTERS CAB DECORATE SCUTCHEON GLISTEN MARK FRAM FRONT ACCESSORY DRAW GEAR

1

2

3

4

5

6

7

8

9

10

11

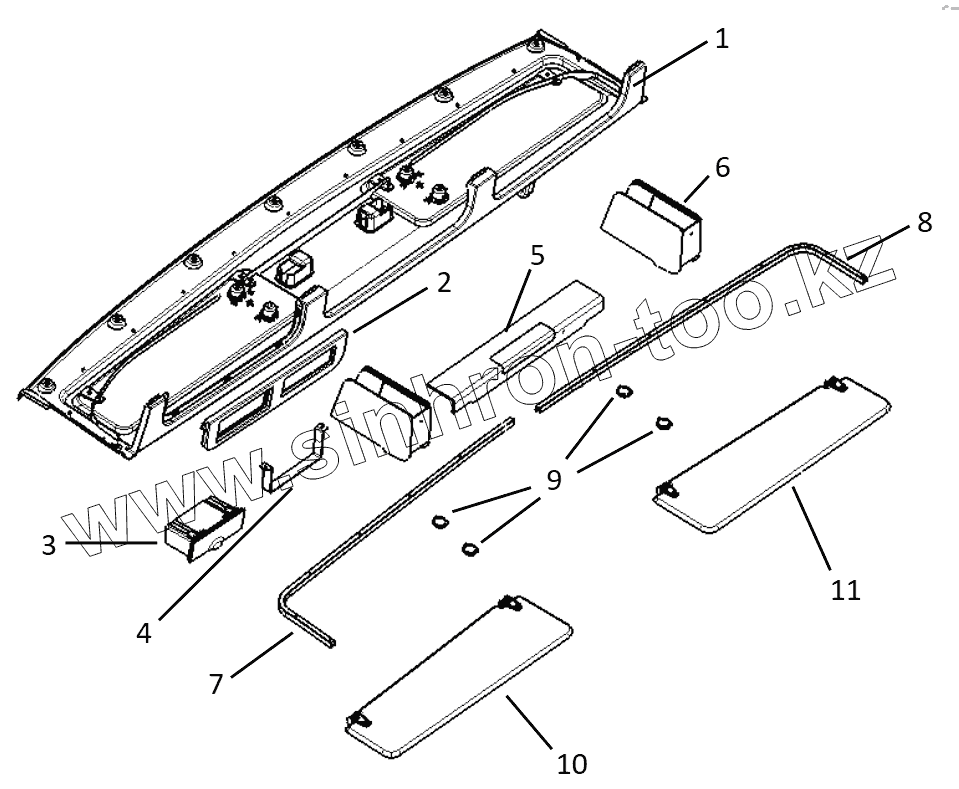

Позиция на иллюстрации	Заводской номер детали		Название детали
1	DZ15221611264		lower clapboard
2	DZ15221611265		Radio-cassette panel
3	DZ15221611266		CD box
4	DZ15221611286		Normal celestial movement bracket
5	DZ15221611263		Wiring harness box cover
6	DZ15221611262		Lower clapboard
7	DZ15221611271		LH front screen rail
8	DZ15221611272		RH front screen rail
9	DZ15221611068		Baseplate cover
10	DZ15221611080		LH sun louver assy
11	DZ15221611085		RH sun louver assy

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
