Shacman SX3316HT406C

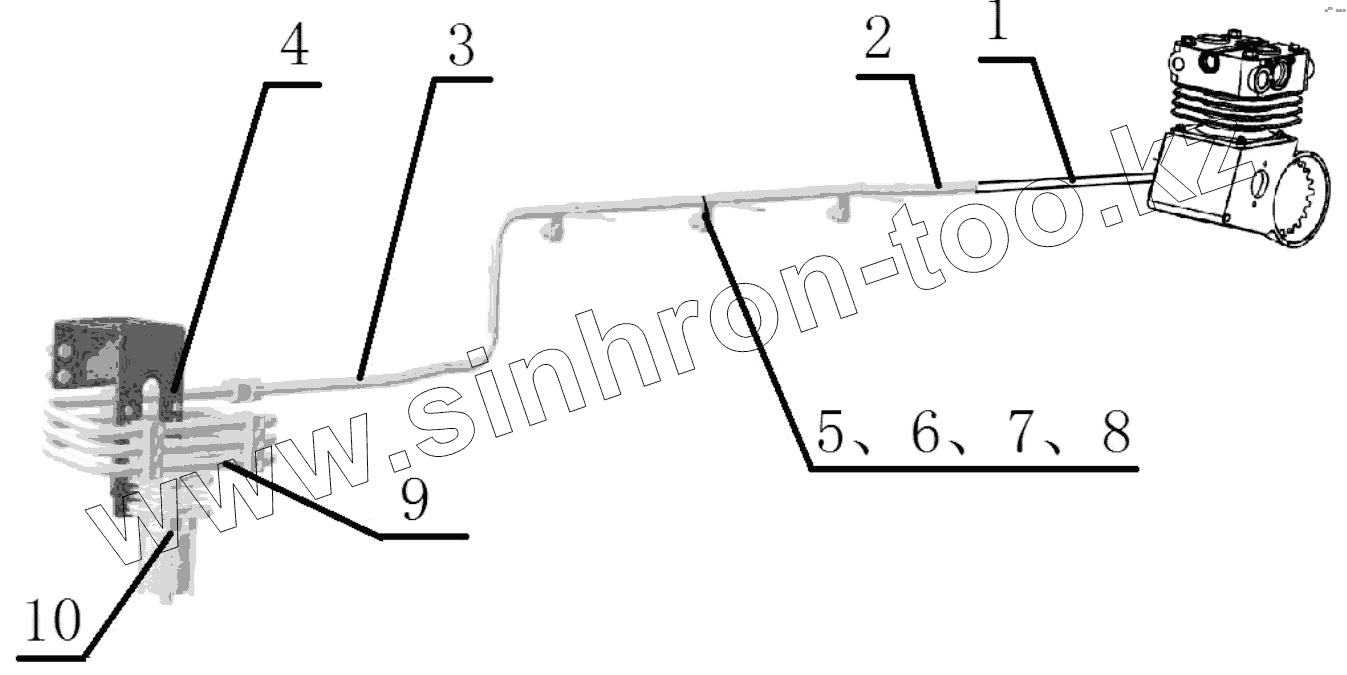

AIR COMPRESSOR PIPELINE
Каталог запасных частей к технике: Shaanxi Shacman SX3316HT406C. AIR COMPRESSOR PIPELINE
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
DAF
DongFeng
FAW
Foton
HOWO
Hyundai
IVECO
JAC Motors
LGMG
MAN
Shaanxi
SITRAK
Studebaker
Tata
Volvo
Автокомпонент Плюс
БелАЗ
Брянский Арсенал
ГАЗ
ЗИЛ
КАЗ
Камский автозавод
КрАЗ
Мадара
МАЗ
МЗКТ
МоАЗ
Нефтекамский автозавод
Ставропольский Завод АвтоПрицепов
ТАТРА
Тонар
УралАЗ
ЧМЗАП
Модель
Не выбрано
DeLONG Е-3 (самосвал) (2008)
DeLONG Е-3 (тягач) (2008)
MAN-F2000 (SX3254JS384) (2008)
Shacman F2000 (2013)
Shacman F3000 (2013)
Shacman SX3255DR385 (2011)
Shacman SX3256DR384 (F3000) (2015)
Shacman SX3256DT384 (2011)
Shacman SX3258DR384—F2000
Shacman SX3316DR366 (F2000) (2011)
Shacman SX3316DT366 (2011)
Shacman SX3316DT426C
Shacman SX3316HT406C
Shacman SX4255DV385 (2011)
Shacman SX4256NT324
Shacman SX42584V324
Shacman SX42584V384TL
Shacman SX5256GJBMR364 (2018)
Shacman SX5318GJBDT386TL
SX-3255-DR 3804B 6х4
Схема
>
Не выбрано
NEW M3000 CAB BODY
PART OF THE CAB FENDER
LEFT FOOT PANEL FOR CAB
RIGHT FOOT PANEL FOR CAB
FRONT COVER
FRONT COVER
DASHBOARD LH, RH AND LOW RIGHT BRACKET
DASHBOARD MID BRACKET
DASHBOARD ASSY
DASHBOARD PANEL ASSY
DRIVER KNEE BOLSTER ASSY
PASSENGER KNEE BOLSTER ASSY
SECOND DASHBOARD ASSY
TOOL BOX
LEFT DOOR LIMIT
RIGHT DOOR LIMIT
LEFT DOOR WINDOW LIFTER ASSEMBLY
RIGHT DOOR WINDOW LIFTER ASSEMBLY
LEFT DOOR INNER PANEL ASSEMBLY
LEFT DOOR INNER PANEL ASSEMBLY
RIGHT DOOR INNER PANEL ASSEMBLY
RIGHT DOOR INNER PANEL ASSEMBLY
LEFT DOOR SEAL
RIGHT DOOR SEAL
LEFT DOOR HINGE
RIGHT DOOR HING
LEFT DOOR LOCK SYSTEM
LEFT LOCK SET IN CAB
LEFT DOOR LOCK SCREW
RIGHT DOOR LOCK SYSTEM
RIGHT LOCK SET IN CAB
RIGHT DOOR LOCKSCREW
SEAT
SAFETY BELT
LOWER BERTH
HIGH-ROOF CAB INTERIOR TRIM PANEL
HIGH-ROOF CAB SUNDRIES BOX BODY
LEFT SIDE WALL INNER GUARD PLATE
RIGHT SIDE WALL INNER GUARD PLATE
REAR WALL INNER GUARD PLATE ASSEMBLY
FLOOR MATS
HEAT INSULATION
WINDSCREEN
SIDE-WINDOW AND REAR-WINDOW
WINDSCREEN, WIPER ASSEMBLY
WATER CONTAINER
VIEW MIRROR
SUN VISOR
HEAT INSULATION
DECORATIVE ASSEMBLY
FRONT AXLE (MAN 5.5 TONS)
FRONT BRAKE
FRONT AXLE (MAN 5.5T)
MAN DOUBLE-STAGE REDUCTION DRIVE AXLE MIDDLE AXLE HOUSING (STR SUSPENSION)
MAN TWO-STAGE REDUCTION DRIVE AXLE REAR AXLE HOUSING (STR SUSPENSION)
MAN DOUBLE-STAGE REDUCTION DRIVE MIDDLE AXLE MIDDLE SECTION
MAN TWO-STAGE REDUCTION DRIVE THE MIDDLE SECTION OF THE REAR AXLE
MAN TWO-STAGE REDUCTION DRIVE AXLE WHEEL SIDE
AIR CLEANING DEVICE
COOLER SYSTEM (NEW M3000/ISM)
EXPANSION BOX SYSTEM
AFTERTREATMENT SYSTEM (ISM ENGINE)
UREA SUPPLY TANK
ENGINE SUSPENSION
GEAR BOX SUPPORT
SHIFTING DEVECE
PULL DIAPHRAGM CLUTCH О¦430
PULL CLUTCH CONTROL DEVICE
PROPELLER SHAFT
FRONT SUSPENSION (DC95319690101)
REAR SUSPENSION в… (DC95319520801)
REAR SUSPENSION в…Ў (DC95319520801)
FRONT SHOCK ABSORBER (DC95319680125)
WHEELING SYSTEM
DOUBLE SHAFTS STEERING TRANSMISSION DEVICE
STEERING COLUMN ADJUSTABLE
STEERING HYDRAULIC DEVICE
FRAME ASSY
FRAME ASSIST CROSS MEMBER ASSY
ALUMINUM ALLOY FUEL TANK ASSEMBLY
ACCELEROGRAPH CONTROL DEVICE
AIR COMPRESSOR PIPELINE
CONNECTING PARTS, LINE & NIPPLE JOINT
CONNECTING PARTS, LINE & NIPPLE JOINT
CONNECTING PARTS, LINE & NIPPLE JOINT
RELAY VALVE FIXING (в… )
AIR TANK FIXING (в… )
AIR TANK FIXING (в…Ў)
AIR TANK FIXING (в…Ў)
AIR TANK FIXING (в… )
AIR TANK FIXING (в… )
AIR TANK FIXING (в… )
AIR TANK FIXING (в…Ў)
AIR TANK FIXING (в… )
AIR TANK FIXING (в… )
AIR TANK FIXING
AIR TANK FIXING (в…Ў)
AIR TANK FIXING
RELAY VALVE FIXING (в… )
CONNECTING PARTS, LINE & NIPPLE JOINT
LINE AND NIPPLE JOINT
DIAPHRAGM BRAKE CHAMBER
AUX.BRAKE CHAMBER
DOUBLE FRONT AXLE DRUM BRAKE
AIR TANK FIXING (C4)
AIR TANK FIXING
CONNECTING PARTS, LINE & NIPPLE JOINT
CONNECTING PARTS, LINE & NIPPLE JOINT
CONNECTING PARTS, LINE & NIPPLE JOINT
SERVE BRAKE CONTROL DEVICE
PARKING BRAKE CONTROL DEVICE
AIR OPERATOR FOR POWER TAKE-OFF
CONNECTING PARTS, LINE & NIPPLE JOINT
CONNECTING PARTS, LINE & NIPPLE JOINT
CAB ELECTRICAL/NEW M3000/ADD-ON/TIANXINGJIAN BD VERSION/WITHOUT CAR SCREEN
FEED BACK RADIO
SWITCH
CIGAR LIGHTER
ANTENNA, SPEAKER
RIGHT HEAD LIGHT WIRE HARNESS
VALVE
INSTRUMENT CLUSTER
COMBINATION SWITCH
COMBINATION SWITCH ADAPTER WIRING HARNESS
RELAY
FUSE BOX, RELAY INSTRUCTION PLATE
MULTI-POWER FUEL-SAVING SWITCH
CONTROLLER
BODY ELECTRICAL BOX MOUNTING PLATE
ECU ELECTRIC PLATE
MAIN WIRE HARNESS OF CAB
SWITCH
ABS CONTROLLER
DOOR LAMP SWITCH
INNER LIGHT
CLEARANCE LAMP
SIDE TURN SIGNAL LAMP
TOP CEILING WIRE HARNESS
FLOOR WIRE HARNESS
DOOR WIRE HARNESS
CHASSIS ELECTRICAL APPLIANCES/NEW M3000/ISME40/BIG INTEGRATION/8Г—4/6Г—2/AUTONOMOUS DCU/DUMP TRUCK
CHASSIS ELECTRICAL APPLIANCES/NEW M3000/ISME40/BIG INTEGRATION/8Г—4/6Г—2/AUTONOMOUS DCU/DUMP TRUCK
CHASSIS ELECTRICAL APPLIANCES/NEW M3000/ISME40/BIG INTEGRATION/8Г—4/6Г—2/AUTONOMOUS DCU/DUMP TRUCK
CHASSIS ELECTRICAL APPLIANCES/NEW M3000/ISME40/BIG INTEGRATION/8Г—4/6Г—2/AUTONOMOUS DCU/DUMP TRUCK
CHASSIS ELECTRICAL APPLIANCES/NEW M3000/ISME40/BIG INTEGRATION/8Г—4/6Г—2/AUTONOMOUS DCU/DUMP TRUCK
CHASSIS ELECTRICAL APPLIANCES/NEW M3000/ISME40/BIG INTEGRATION/8Г—4/6Г—2/AUTONOMOUS DCU/DUMP TRUCK
CHASSIS ELECTRICAL APPLIANCES/NEW M3000/ISME40/BIG INTEGRATION/8Г—4/6Г—2/AUTONOMOUS DCU/DUMP TRUCK
CHASSIS ELECTRICAL APPLIANCES/NEW M3000/ISME40/BIG INTEGRATION/8Г—4/6Г—2/AUTONOMOUS DCU/DUMP TRUCK
CHASSIS ELECTRICAL/NEW M3000/NON-TRACTOR/K40/8Г—4/REAR SUSPENSION 1000/JACOB
CHASSIS ELECTRICAL/NEW M3000/NON-TRACTOR/K40/8Г—4/REAR SUSPENSION 1000/JACOB
CHASSIS ELECTRICAL/NEW M3000/NON-TRACTOR/K40/8Г—4/REAR SUSPENSION 1000/JACOB
CHASSIS ELECTRICAL/ADDITIONAL/DUMP TRUCK
CHASSIS ELECTRICAL/NEW M3000/ADDITIONAL/K40/8Г—4/DOMESTIC 4ABS
BATTERY BOX MOUNTING
BATTERY BOX
MAIN POWER SWITCH (SWITCH IN THE MIDDLE)
HEADLAMPS WITH FLASHER
SIDE MARKER LIGHT (FENDER)
TAILLIGHT BRACKET/M3000/DUMP TRUCK LOWERING HEIGHT/WELDING PROTECTIVE COVER
CHASSIS ELECTRICAL/ADDITIONAL/TRANSFER CASE (ELECTRICALLY CONTROLLED AIR CONTROL)
AIR CONDITIONING SYSTEM
AIR CONDITIONER BODY
AIR DUCT
AIR CONDITION PIPES
AIR CONDITIONING SYSTEM
AIR CONDITIONER BODY
AIR DUCT
CAB TILTING MECHANISM L.H. DRIVE VEHICLE
FRONT BEARING SPRING
CAB LOCKING DEVICE
CAB HYDRAULIC TILTING EQUIPMENT
FENDER
NEW M3000 ENGINEERING VEHICLE STEPPING ON THE LEFT SIDE
NEW M3000 ENGINEERING VEHICLE STEPPING ON THE RIGHT SIDE
NEW M3000 DUMP TRUCK BUMPER
CAB VEHICLE TYPE LETTERS
CAB DECORATE SCUTCHEON GLISTEN MARK
FRAM FRONT ACCESSORY
DRAW GEAR
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
3
3
3
3
3
3
3
3
4
4
5
6
7
8
9
9
9
9
9
10
Позиция на иллюстрации
Заводской номер детали
Название детали
1
DZ97319361019
Steel Pipe 20 Air Compressor/Hose
1
DZ97319361023
Steel Pipe 20 Air Compressor/Hose
1
DZ97319361066
Steel Pipe 20 Air Compressor/Hose
1
DZ97319361051
Steel Pipe 20 Air Compressor/Hose
1
DZ95319360062
Steel Pipe 20 Air Compressor/Hose
1
SZ903000820
Steel Pipe 20 Air Compressor/Hose
1
DZ97319361051
Steel Pipe 20 Air Compressor/Hose
1
DZ96189360149
Steel Pipe 20 Air Compressor/Hose
1
DZ97319361048
Steel Pipe 20 Air Compressor/Hose
1
DZ97319361015
Steel Pipe 20 Air Compressor/Hose
2
DZ93189360007
Шланг
2
DZ9100360442
Шланг
2
DZ93319360021
Stainless steel metal hose
2
DZ93319360020
Stainless steel metal hose
2
DZ93319360019
Stainless steel metal hose
2
DZ93319360018
Stainless steel metal hose
3
DZ97319361075
Tube 20 Straight/Straight
3
DZ97319361021
Tube 20 hose/straight
3
DZ97319361060
Tube 20 Straight/Straight
3
DZ97319361017
Tube 20 hose/straight
3
DZ97319361126
Tube 20 Straight/Straight
3
DZ97319361056
Tube 20 Straight/Straight
3
DZ97319361054
Tube 20 hose/straight
3
DZ97319361025
Tube 20 hose/straight
4
DZ97319360040
Oil-water separator bracket assembly
4
DZ97259360012
Oil-water separator bracket
5
199000360315
Bracket
6
Q68620
Pipe clamp
7
Q151B1430
Q151B1430
8
190003888458
Гайка
9
DZ97319360045
Tube 20 Straight-through/oil-water separator
9
DZ97259360013
Tube 20 hose/water separator
9
DZ97319361017
Tube 20 hose/straight
9
SZ903000759
Pipe
9
SZ903000749
Tube 20 hose/water separator
10
DZ97259360017
Water separator
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
