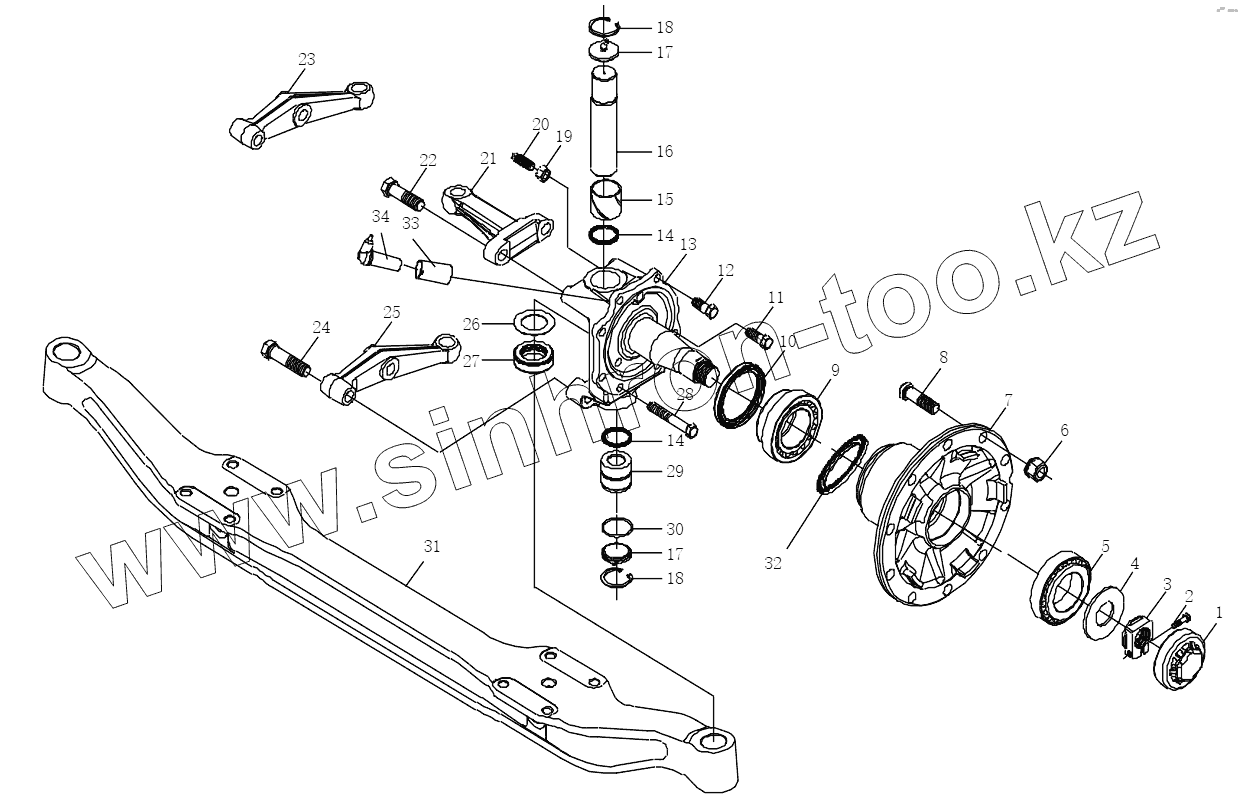

Каталог запасных частей к технике: Shaanxi Shacman SX3316DT426C. MAN9.5T STEERING SHAFT
1
2
3
4
5
5
6
7
8
9
10
11
12
13
13
14
14
15
16
17
17
17
17
18
18
19
20
21
21
22
23
24
25
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
27
28
29
30
31
32
33
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 81.44312.0009 | Колпак защитный | |
| 2 | Q218B1040TF2 | Стопор | |
| 3 | 81.92901.0066 | Гайка | |
| 4 | 81.44215.0016 | Шайба стопорная | |
| 5 | 06.32499.0016 | Подшипник SКF32310J2/А | |
| 5 | 06.32499.0034 | Подшипник FАG32310А | |
| 6 | Q30022 | Конический роликовый подшипник | |
| 7 | DZ9100410121 | Front wheel hub | |
| 8 | DZ9100410129 | Wheel fixture bolt | |
| 9 | 06.32499.0190 | Radial- row-steep roller bearing | |
| 10 | 06.56279.0340 | Packing ring for axle | |
| 11 | Q151B1645TF2 | Болт | |
| 12 | Q151B1640TF2 | Болт | |
| 13 | DZ9100410400 | Steering knuckle | |
| 13 | DZ9100410401 | Steering knuckle | |
| 14 | 06.56279.0343 | Packing ring for axle | |
| 15 | 81.93021.0270 | Top bush | |
| 16 | 81.44205.0055 | Pin | |
| 17 | 81.44208.0009 | Seal plate | |
| 17 | 190003963114 | Taper thread grease nipple | |
| 18 | Q43068 | Circlip for hole | |
| 19 | Q341B16 | Гайка № 1 | |
| 20 | DZ9100410405 | Fixed bolt | |
| 21 | DZ95009410003 | Knuckle arm | |
| 21 | DZ95009410004 | Knuckle arm | |
| 22 | Q151B2480TF2 | Hex bolt | |
| 23 | 81.46701.0290 | Steering trapezium arm | |
| 24 | Q151B2495TF2 | Hex bolt | |
| 25 | 81.46701.0289 | Steering trapezium arm | |
| 26 | 81.90713.0679 | Adjusting washer | |
| 26 | DZ9100410419 | Adjusting washer | |
| 26 | DZ9100410418 | Adjusting washer | |
| 26 | DZ9100410417 | Adjusting washer | |
| 26 | DZ9100410416 | Adjusting washer | |
| 26 | DZ9100410415 | Adjusting washer | |
| 26 | DZ9100410414 | Adjusting washer | |
| 26 | DZ9100410413 | Adjusting washer | |
| 26 | DZ9100410412 | Adjusting washer | |
| 26 | 81.90713.0687 | Adjusting washer | |
| 26 | 81.90713.0686 | Adjusting washer | |
| 26 | 81.90713.0685 | Adjusting washer | |
| 26 | 81.90713.0684 | Adjusting washer | |
| 26 | 81.90713.0683 | Adjusting washer | |
| 26 | 81.90713.0682 | Adjusting washer | |
| 26 | 81.90713.0681 | Adjusting washer | |
| 26 | 81.90713.0680 | Adjusting washer | |
| 27 | DZ9003326025 | Push row-steep roller bearing | |
| 28 | Q151B16125TF2 | Hex bolt | |
| 29 | 06.33719.0097 | Quill roller | |
| 30 | DZ9100410406 | Packing ring | |
| 31 | DZ9100410426 | Front axle | |
| 32 | 81.52403.0021 | ABS ring | |
| 33 | DZ9100580215 | Втулка датчика | |
| 34 | DZ9100580214 | Датчик АВS |
