Каталог запасных частей к технике: Shaanxi Shacman SX3316DT426C. CHASSIS ELECTRICAL/ADDITIONAL/F3000 DUMP TRUCK

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW DAF DongFeng FAW Foton HOWO Hyundai IVECO JAC Motors LGMG MAN Shaanxi SITRAK Studebaker Tata Volvo Автокомпонент Плюс БелАЗ Брянский Арсенал ГАЗ ЗИЛ КАЗ Камский автозавод КрАЗ Мадара МАЗ МЗКТ МоАЗ Нефтекамский автозавод Ставропольский Завод АвтоПрицепов ТАТРА Тонар УралАЗ ЧМЗАП

Модель Не выбрано DeLONG Е-3 (самосвал) (2008) DeLONG Е-3 (тягач) (2008) MAN-F2000 (SX3254JS384) (2008) Shacman F2000 (2013) Shacman F3000 (2013) Shacman SX3255DR385 (2011) Shacman SX3256DR384 (F3000) (2015) Shacman SX3256DT384 (2011) Shacman SX3258DR384—F2000 Shacman SX3316DR366 (F2000) (2011) Shacman SX3316DT366 (2011) Shacman SX3316DT426C Shacman SX3316HT406C Shacman SX4255DV385 (2011) Shacman SX4256NT324 Shacman SX42584V324 Shacman SX42584V384TL Shacman SX5256GJBMR364 (2018) Shacman SX5318GJBDT386TL SX-3255-DR 3804B 6х4

Схема > Не выбрано F3000 SEMI-HIGH ROOF CAB BODY LEFT FENDER RIGHT FENDER FRONT COVER DASHBOARD (ECONOMICAL) HAND GRIPER TOOL BOX DOOR WINDOW LIFTER LEFT ELECTRICALLY OPERATED DOOR WINDOW LIFTER RIGHT ELECTRICALLY OPERATED DOOR AND DOOR GLASS DOOR AND DOOR GLASS DOOR COVERING LEFT DOOR COVERING RIGHT DOOR ARRESTOR AND DOOR ACUATING SYSTEM RIGHT DOOR HINGE LEFT AND RIGHT DOOR ARRESTOR AND DOOR ACTUATING SYSTEM LEFT DOOR ARRESTOR AND DOOR ACUATING SYSTEM RIGHT SEAT SAFETY BELT LOWER BERTH UPPER BERTH HEADLINING WITH MOUNTING AND GRAB HANDLE SIDE-WALL PANELING CLOSED WITH NOUNTING в…  LUGGAGE RACK FLOOR MATS FRONT AND ANTI-SKID STRIP SUN VISOR ROLLER DASHBOARD PANELLING ENGINE COWLING INSULATION NOISE INSULATION CAB FRONT WINDSHIELD GLASS ASSEMBLY WIPER SYSTEM WINDSCREEN WASHER PUMP AND ACCESSORIES REARVIEW MIRROR LEFT BRACKET REARVIEW MIRROR RIGHT BRACKET DOOR MIRROR SUN VISOR SOUND PROOFING SOUND PROOFING DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY MAN9.5T STEERING SHAFT MAN9.5T STEERING SHAFT BRAKE ASSEMBLY MAN9.5T STEERING SHAFT STEERING MECHANISM MAN DOUBLE-STAGE REDUCTION DRIVE AXLE MIDDLE AXLE HOUSING (STR SUSPENSION) MAN TWO-STAGE REDUCTION DRIVE AXLE REAR AXLE HOUSING (STR SUSPENSION) MAN DOUBLE-STAGE REDUCTION DRIVE MIDDLE AXLE MIDDLE SECTION MAN TWO-STAGE REDUCTION DRIVE THE MIDDLE SECTION OF THE REAR AXLE MAN TWO-STAGE REDUCTION DRIVE AXLE WHEEL SIDE AIR CLEANING DEVICE COOLER SYSTEM (F3000/ FOR ENGINE CUMMINS) WIND RETAINING RING SYSTEM DUSTPROOF NET EXPANSION BOX SYSTEM RADIATOR PROTECTOR SYSTEM EXHAUSTING SYSTEM UREA SUPPLY TANK UREA SUPPLY TANK ENGINE SUSPENSION GEAR BOX SUPPORT SHIFTING DEVECE PULL DIAPHRAGM SPRING CLUTCH О¦430 PULL CLUTCH CONTROL DEVICE PROPELLER SHAFT FRONT SUSPENSION (DC95319690905) REAR SUSPENSION в…  (DC95319520900) REAR SUSPENSION в…Ў (DC95319520900) FRONT SHOCK ABSORBER (DC95319680902) FRONT STABILIZER ASSY (DC95319680902) REAR STABILIZER BAR (DC95319680902) WHEELING SYSTEM STEERING TRANSMISSION DEVICE STEERING COLUMN ADJUSTABLE STEERING HYDRAULIC DEVICE FRAME ASSY FRAM ASSISTANT CROSS MEMBER ALUMINUM ALLOY FUEL TANK ASSEMBLY (400L) ACCELEROGRAPH CONTROL DEVICE AIR COMPRESSOR PIPELINE CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT DOUBAL CIRCUIT BRAKE SYSTEM в…Ў DOUBAL CIRCUIT BRAKE SYSTEM в…Ў CONNECTING PARTS, LINE & NIPPLE JOINT PIPELINE CONNECTORS, PIPE JOINTS (QUICK PLUG) PIPELINE CONNECTORS, PIPE JOINTS (QUICK PLUG) PIPELINE CONNECTORS, PIPE JOINTS (COMPRESSION SLEEVES) SERVE BRAKE CONTROL DEVICE PARKING BRAKE CONTROL DEVICE CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS,LINE & NIPPLE JOINT AIR OPERATOR FOR POWER TAKE-OFF CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS,LINE & NIPPLE JOINT TELEMATIC FUSE WIRING SWITCH, RADIO AND CIGARETTE LIGHTER SWITCH COMMBINATION SWITCH BRAKE SWITCH RELAY, FUSE DIAGNOSTIC INTERFACE DEVICE BOARD RADIO LOUDHAILER TRANSFORMER WIRE BAROMETRIC PRESSURE SENSOR REAR LIGHT LOOMS ON CAB OUTER COMBINATION GAUGE ASSY WITH FRAME SWITCH, RADIO AND CIGARETTE LIGHTER SWITCH NEAR SWITCH ELECTRIC PANEL I CENTER ELECTRIC PANEL II ELECTRIC PANEL SCUTCHEON RELAY, FUSE PLUG CAB WIRING HARNESS (IN THE DASHBOARD) PLUG EBP SWITCH SWITCH WIRING FUSE, RELAY OTHER CABIN WIRING RELAY, FUSE ABS CONTROLLER RELAY, FUSE WIRING DOOR LAMP SWITCH PUMP FLOOD LIGHT FLOODLIGHT ON REAR PANNEL WIRING DOOR AND WINDOW CONTROL UNIT ELECTRIC GLASS LIFTER ROCKER SWITCH FUSE CHASSIS ELECTRICAL APPLIANCES/ISME40/8Г—4/DUMP TRUCK/F3000HX/SWITCH MID-MOUNTED/AUTONOMOUS DCU/DRY CANNED BATTERY BOX REAR/NEW CABLE CHASSIS ELECTRICAL APPLIANCES/ISME40/8Г—4/DUMP TRUCK/F3000HX/SWITCH MID-MOUNTED/AUTONOMOUS DCU/DRY CANNED BATTERY BOX REAR/NEW CABLE CHASSIS ELECTRICAL APPLIANCES/ISME40/8Г—4/DUMP TRUCK/F3000HX/SWITCH MID-MOUNTED/AUTONOMOUS DCU/DRY CANNED BATTERY BOX REAR/NEW CABLE CHASSIS ELECTRICAL APPLIANCES/ISME40/8Г—4/DUMP TRUCK/F3000HX/SWITCH MID-MOUNTED/AUTONOMOUS DCU/DRY CANNED BATTERY BOX REAR/NEW CABLE CHASSIS ELECTRICAL/NON-TRACTOR/8Г—4/4175/1000/JACOB/NEW CHASSIS ELECTRICAL/NON-TRACTOR/8Г—4/4175/1000/JACOB/NEW CHASSIS ELECTRICAL/NON-TRACTOR/8Г—4/4175/1000/JACOB/NEW CHASSIS ELECTRICAL/NON-TRACTOR/8Г—4/4175/1000/JACOB/NEW CHASSIS ELECTRICAL/ADDITIONAL/NEW AIR PRESSURE SENSOR EXTENSION CABLE (8Г—4) CHASSIS ELECTRICAL/ADDITIONAL/F3000 DUMP TRUCK/WORKING CHASSIS ELECTRICAL/ADDITIONAL/F3000 DUMP TRUCK CHASSIS ELECTRICAL/ADDITIONAL/K42/8Г—4/DOMESTIC 4ABS/NEW BATTERY BOX MOUNTING BATTERY BOX MAIN BATTERY SWITCH HEADLAMPS FLASHERS IN BUMPER SUNSHADE LAMPS SIDE-MARKER LIGHTS TAILLIGHT BRACKET/M3000/DUMP TRUCK LOWERING HEIGHT/WELDING PROTECTIVE COVER AIR CONDITION PIPES HEATER DEVICE (WITH AIR CONDITION) AIR SYSTEM AIR SYSTEM AIR INTAKE BOX ON CAB AIR DUCT AIR CONDITION PIPES HEATER DEVICE (WITH AIR CONDITION) (APPLICABLE TO WP10, WD12, ISM ENGINES) HEATER DEVICE (WITH AIR CONDITION) (APPLICABLE TO WP12 ENGINE, FOR ENGINE ZOOMLION, FOR ENGINE XCMG) TEMPERATURE SENSOR AIR CONDITION CONTROLLER ELECTRONIC CONTROL UNITS FOR AIR CONDITIONING CAB TILTING MECHANISM L.H. DRIVE VEHICLE FRONT BEARING SPRING CAB LOCKING DEVICE CAB HYDRAULIC TILTING EQUIPMENT LEFT/RIGHT FENDER BRACKET FENDER LEFT BEHIND CAB FENDER RIGHT BEHIND CAB LEFT FOOT PANEL BRACKET RIGHT FOOT PANEL BRACKET LEFT DOOR STEP RIGHT DOOR STEP BUMPER AND FRONT BRACKET CAB VEHICLE TYPE LETTERS CAB DECORATE SCUTCHEON GLISTEN MARK FRAM FOREPART ACCESSORY DRAW GEAR

1

2

7

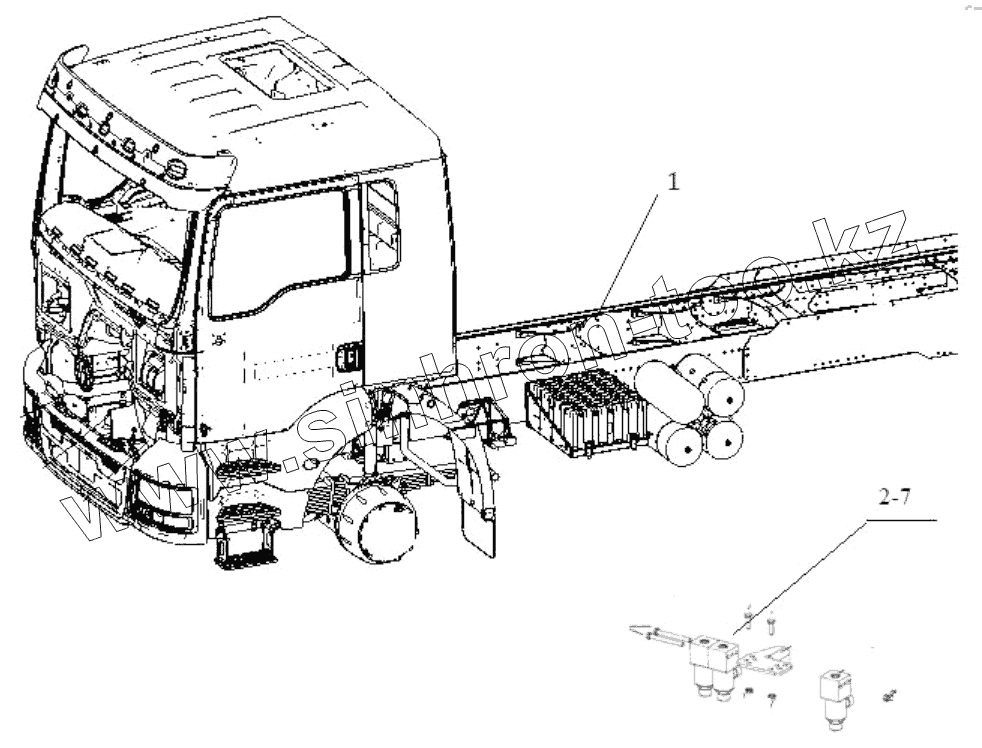

Позиция на иллюстрации	Заводской номер детали		Название детали
1	DZ93189776196		Additional wiring harness for dump truck chassis
2	81.52160.6115		Электромагнитный клапан
3	DZ9100716009		Электромагнитный клапан
4	Z91189719001		Hexagon head bolt
5	Q33208		Гайка
6	Q40008		Шайба
7	81.96502.0358		Seal sleeve

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
