BATTERY BOX
Каталог запасных частей к технике: Shaanxi Shacman SX3316DT426C. BATTERY BOX
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
DAF
DongFeng
FAW
Foton
HOWO
Hyundai
IVECO
JAC Motors
LGMG
MAN
Shaanxi
SITRAK
Studebaker
Tata
Volvo
Автокомпонент Плюс
БелАЗ
Брянский Арсенал
ГАЗ
ЗИЛ
КАЗ
Камский автозавод
КрАЗ
Мадара
МАЗ
МЗКТ
МоАЗ
Нефтекамский автозавод
Ставропольский Завод АвтоПрицепов
ТАТРА
Тонар
УралАЗ
ЧМЗАП
Модель
Не выбрано
DeLONG Е-3 (самосвал) (2008)
DeLONG Е-3 (тягач) (2008)
MAN-F2000 (SX3254JS384) (2008)
Shacman F2000 (2013)
Shacman F3000 (2013)
Shacman SX3255DR385 (2011)
Shacman SX3256DR384 (F3000) (2015)
Shacman SX3256DT384 (2011)
Shacman SX3258DR384—F2000
Shacman SX3316DR366 (F2000) (2011)
Shacman SX3316DT366 (2011)
Shacman SX3316DT426C
Shacman SX3316HT406C
Shacman SX4255DV385 (2011)
Shacman SX4256NT324
Shacman SX42584V324
Shacman SX42584V384TL
Shacman SX5256GJBMR364 (2018)
Shacman SX5318GJBDT386TL
SX-3255-DR 3804B 6х4
Схема
>
Не выбрано
F3000 SEMI-HIGH ROOF CAB BODY
LEFT FENDER
RIGHT FENDER
FRONT COVER
DASHBOARD (ECONOMICAL)
HAND GRIPER
TOOL BOX
DOOR WINDOW LIFTER LEFT ELECTRICALLY OPERATED
DOOR WINDOW LIFTER RIGHT ELECTRICALLY OPERATED
DOOR AND DOOR GLASS
DOOR AND DOOR GLASS
DOOR COVERING LEFT
DOOR COVERING RIGHT
DOOR ARRESTOR AND DOOR ACUATING SYSTEM RIGHT
DOOR HINGE LEFT AND RIGHT
DOOR ARRESTOR AND DOOR ACTUATING SYSTEM LEFT
DOOR ARRESTOR AND DOOR ACUATING SYSTEM RIGHT
SEAT
SAFETY BELT
LOWER BERTH
UPPER BERTH
HEADLINING WITH MOUNTING AND GRAB HANDLE
SIDE-WALL PANELING CLOSED WITH NOUNTING в…
LUGGAGE RACK
FLOOR MATS FRONT AND ANTI-SKID STRIP
SUN VISOR ROLLER
DASHBOARD PANELLING
ENGINE COWLING INSULATION
NOISE INSULATION CAB
FRONT WINDSHIELD GLASS ASSEMBLY
WIPER SYSTEM
WINDSCREEN WASHER PUMP AND ACCESSORIES
REARVIEW MIRROR LEFT BRACKET
REARVIEW MIRROR RIGHT BRACKET
DOOR MIRROR
SUN VISOR
SOUND PROOFING
SOUND PROOFING
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
MAN9.5T STEERING SHAFT
MAN9.5T STEERING SHAFT BRAKE ASSEMBLY
MAN9.5T STEERING SHAFT STEERING MECHANISM
MAN DOUBLE-STAGE REDUCTION DRIVE AXLE MIDDLE AXLE HOUSING (STR SUSPENSION)
MAN TWO-STAGE REDUCTION DRIVE AXLE REAR AXLE HOUSING (STR SUSPENSION)
MAN DOUBLE-STAGE REDUCTION DRIVE MIDDLE AXLE MIDDLE SECTION
MAN TWO-STAGE REDUCTION DRIVE THE MIDDLE SECTION OF THE REAR AXLE
MAN TWO-STAGE REDUCTION DRIVE AXLE WHEEL SIDE
AIR CLEANING DEVICE
COOLER SYSTEM (F3000/ FOR ENGINE CUMMINS)
WIND RETAINING RING SYSTEM
DUSTPROOF NET
EXPANSION BOX SYSTEM
RADIATOR PROTECTOR SYSTEM
EXHAUSTING SYSTEM
UREA SUPPLY TANK
UREA SUPPLY TANK
ENGINE SUSPENSION
GEAR BOX SUPPORT
SHIFTING DEVECE
PULL DIAPHRAGM SPRING CLUTCH О¦430
PULL CLUTCH CONTROL DEVICE
PROPELLER SHAFT
FRONT SUSPENSION (DC95319690905)
REAR SUSPENSION в… (DC95319520900)
REAR SUSPENSION в…Ў (DC95319520900)
FRONT SHOCK ABSORBER (DC95319680902)
FRONT STABILIZER ASSY (DC95319680902)
REAR STABILIZER BAR (DC95319680902)
WHEELING SYSTEM
STEERING TRANSMISSION DEVICE
STEERING COLUMN ADJUSTABLE
STEERING HYDRAULIC DEVICE
FRAME ASSY
FRAM ASSISTANT CROSS MEMBER
ALUMINUM ALLOY FUEL TANK ASSEMBLY (400L)
ACCELEROGRAPH CONTROL DEVICE
AIR COMPRESSOR PIPELINE
CONNECTING PARTS, LINE & NIPPLE JOINT
CONNECTING PARTS, LINE & NIPPLE JOINT
CONNECTING PARTS, LINE & NIPPLE JOINT
DOUBAL CIRCUIT BRAKE SYSTEM в…Ў
DOUBAL CIRCUIT BRAKE SYSTEM в…Ў
CONNECTING PARTS, LINE & NIPPLE JOINT
PIPELINE CONNECTORS, PIPE JOINTS (QUICK PLUG)
PIPELINE CONNECTORS, PIPE JOINTS (QUICK PLUG)
PIPELINE CONNECTORS, PIPE JOINTS (COMPRESSION SLEEVES)
SERVE BRAKE CONTROL DEVICE
PARKING BRAKE CONTROL DEVICE
CONNECTING PARTS, LINE & NIPPLE JOINT
CONNECTING PARTS, LINE & NIPPLE JOINT
CONNECTING PARTS,LINE & NIPPLE JOINT
AIR OPERATOR FOR POWER TAKE-OFF
CONNECTING PARTS, LINE & NIPPLE JOINT
CONNECTING PARTS,LINE & NIPPLE JOINT
TELEMATIC
FUSE
WIRING
SWITCH, RADIO AND CIGARETTE LIGHTER
SWITCH
COMMBINATION SWITCH
BRAKE SWITCH
RELAY, FUSE
DIAGNOSTIC INTERFACE DEVICE BOARD
RADIO LOUDHAILER TRANSFORMER WIRE
BAROMETRIC PRESSURE SENSOR
REAR LIGHT
LOOMS ON CAB OUTER
COMBINATION GAUGE ASSY WITH FRAME
SWITCH, RADIO AND CIGARETTE LIGHTER
SWITCH
NEAR SWITCH
ELECTRIC PANEL I
CENTER ELECTRIC PANEL II
ELECTRIC PANEL SCUTCHEON
RELAY, FUSE
PLUG
CAB WIRING HARNESS (IN THE DASHBOARD)
PLUG
EBP SWITCH
SWITCH
WIRING
FUSE, RELAY
OTHER CABIN WIRING
RELAY, FUSE
ABS CONTROLLER
RELAY, FUSE
WIRING
DOOR LAMP SWITCH
PUMP
FLOOD LIGHT
FLOODLIGHT ON REAR PANNEL
WIRING
DOOR AND WINDOW CONTROL UNIT
ELECTRIC GLASS LIFTER ROCKER SWITCH
FUSE
CHASSIS ELECTRICAL APPLIANCES/ISME40/8Г—4/DUMP TRUCK/F3000HX/SWITCH MID-MOUNTED/AUTONOMOUS DCU/DRY CANNED BATTERY BOX REAR/NEW CABLE
CHASSIS ELECTRICAL APPLIANCES/ISME40/8Г—4/DUMP TRUCK/F3000HX/SWITCH MID-MOUNTED/AUTONOMOUS DCU/DRY CANNED BATTERY BOX REAR/NEW CABLE
CHASSIS ELECTRICAL APPLIANCES/ISME40/8Г—4/DUMP TRUCK/F3000HX/SWITCH MID-MOUNTED/AUTONOMOUS DCU/DRY CANNED BATTERY BOX REAR/NEW CABLE
CHASSIS ELECTRICAL APPLIANCES/ISME40/8Г—4/DUMP TRUCK/F3000HX/SWITCH MID-MOUNTED/AUTONOMOUS DCU/DRY CANNED BATTERY BOX REAR/NEW CABLE
CHASSIS ELECTRICAL/NON-TRACTOR/8Г—4/4175/1000/JACOB/NEW
CHASSIS ELECTRICAL/NON-TRACTOR/8Г—4/4175/1000/JACOB/NEW
CHASSIS ELECTRICAL/NON-TRACTOR/8Г—4/4175/1000/JACOB/NEW
CHASSIS ELECTRICAL/NON-TRACTOR/8Г—4/4175/1000/JACOB/NEW
CHASSIS ELECTRICAL/ADDITIONAL/NEW AIR PRESSURE SENSOR EXTENSION CABLE (8Г—4)
CHASSIS ELECTRICAL/ADDITIONAL/F3000 DUMP TRUCK/WORKING
CHASSIS ELECTRICAL/ADDITIONAL/F3000 DUMP TRUCK
CHASSIS ELECTRICAL/ADDITIONAL/K42/8Г—4/DOMESTIC 4ABS/NEW
BATTERY BOX MOUNTING
BATTERY BOX
MAIN BATTERY SWITCH
HEADLAMPS
FLASHERS IN BUMPER
SUNSHADE LAMPS
SIDE-MARKER LIGHTS
TAILLIGHT BRACKET/M3000/DUMP TRUCK LOWERING HEIGHT/WELDING PROTECTIVE COVER
AIR CONDITION PIPES
HEATER DEVICE (WITH AIR CONDITION)
AIR SYSTEM
AIR SYSTEM
AIR INTAKE BOX ON CAB
AIR DUCT
AIR CONDITION PIPES
HEATER DEVICE (WITH AIR CONDITION) (APPLICABLE TO WP10, WD12, ISM ENGINES)
HEATER DEVICE (WITH AIR CONDITION) (APPLICABLE TO WP12 ENGINE, FOR ENGINE ZOOMLION, FOR ENGINE XCMG)
TEMPERATURE SENSOR
AIR CONDITION CONTROLLER
ELECTRONIC CONTROL UNITS FOR AIR CONDITIONING
CAB TILTING MECHANISM L.H. DRIVE VEHICLE
FRONT BEARING SPRING
CAB LOCKING DEVICE
CAB HYDRAULIC TILTING EQUIPMENT
LEFT/RIGHT FENDER BRACKET
FENDER LEFT BEHIND CAB
FENDER RIGHT BEHIND CAB
LEFT FOOT PANEL BRACKET
RIGHT FOOT PANEL BRACKET
LEFT DOOR STEP
RIGHT DOOR STEP
BUMPER AND FRONT BRACKET
CAB VEHICLE TYPE LETTERS
CAB DECORATE SCUTCHEON GLISTEN MARK
FRAM FOREPART ACCESSORY
DRAW GEAR
1
2
3
3
3
4
5
6
7
7
8
8
8
9
10
11
14
15

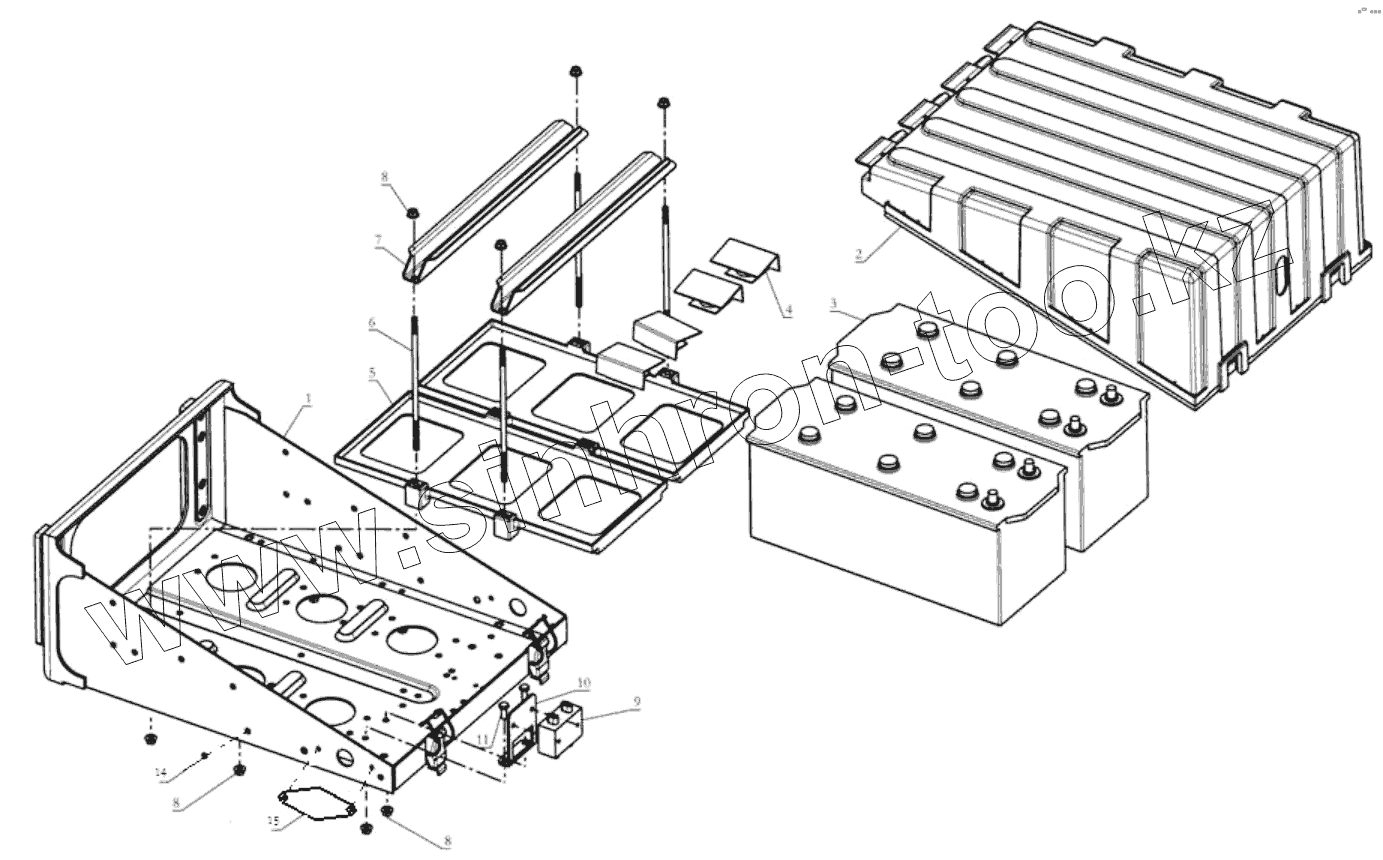

Позиция на иллюстрации
Заводской номер детали
Название детали
1
DZ95189761010
Battery box assembly
2
DZ95189761120
Cover
3
199100760064
Battery
3
DZ9100760080
Battery
3
2190-3703010
Аккумуляторная батарея
4
81.25470.0035
nasal
5
DZ95189761030
Retaining frame assembly
6
81.95120.0164
Threaded rod
7
81.41860.2458
Channel Partition
7
DZ95189761040
Channel Partition
8
Q33208
Гайка
9
SZ971000702
Fuse box
10
199018710022
Fuse
11
199100770079
Fuse
12
DZ95189711740
Fuse bracket assembly
13
Q150B0812
Болт
14
DZ95189761019
Clogging
15
DZ95189761018
Stem
