Shacman SX3316DT366
TRANSMISSION HARNESS

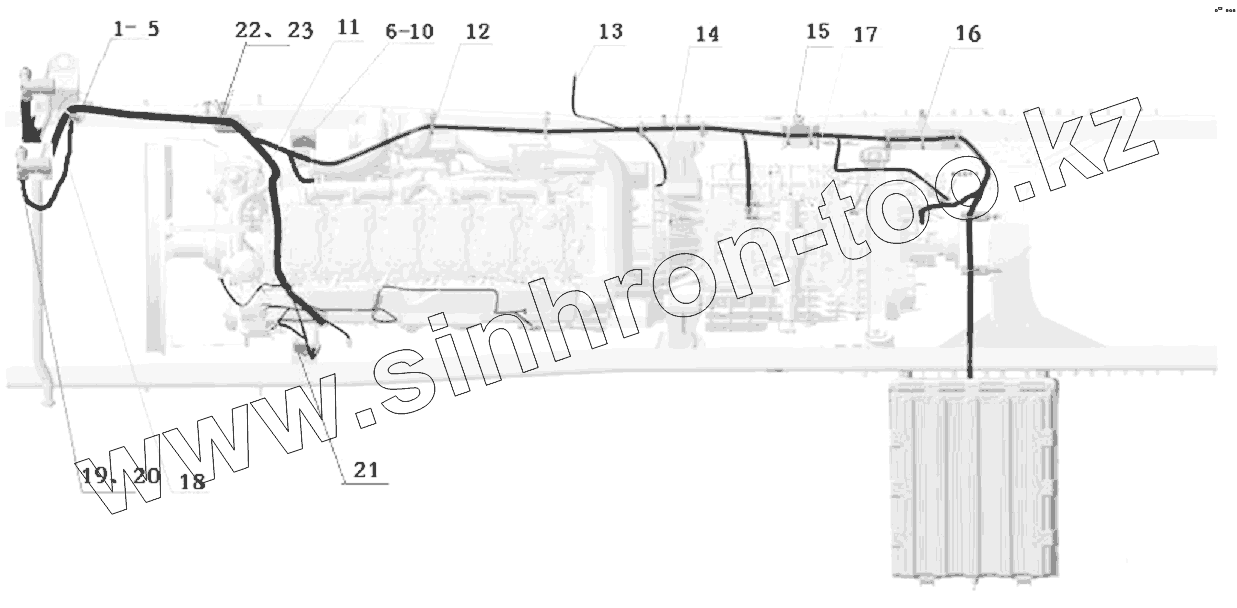

Каталог запасных частей к технике: Shaanxi Shacman SX3316DT366. TRANSMISSION HARNESS
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
DAF
DongFeng
FAW
Foton
HOWO
Hyundai
IVECO
JAC Motors
LGMG
MAN
Shaanxi
SITRAK
Studebaker
Tata
Volvo
Автокомпонент Плюс
БелАЗ
Брянский Арсенал
ГАЗ
ЗИЛ
КАЗ
Камский автозавод
КрАЗ
Мадара
МАЗ
МЗКТ
МоАЗ
Нефтекамский автозавод
Ставропольский Завод АвтоПрицепов
ТАТРА
Тонар
УралАЗ
ЧМЗАП
Модель
Не выбрано
DeLONG Е-3 (самосвал) (2008)
DeLONG Е-3 (тягач) (2008)
MAN-F2000 (SX3254JS384) (2008)
Shacman F2000 (2013)
Shacman F3000 (2013)
Shacman SX3255DR385 (2011)
Shacman SX3256DR384 (F3000) (2015)
Shacman SX3256DT384 (2011)
Shacman SX3258DR384—F2000
Shacman SX3316DR366 (F2000) (2011)
Shacman SX3316DT366 (2011)
Shacman SX3316DT426C
Shacman SX3316HT406C
Shacman SX4255DV385 (2011)
Shacman SX4256NT324
Shacman SX42584V324
Shacman SX42584V384TL
Shacman SX5256GJBMR364 (2018)
Shacman SX5318GJBDT386TL
SX-3255-DR 3804B 6х4
Схема
>
Не выбрано
HALF HIGH ROOF CAB WELDING ASSY
LEFT FENDER
RIGHT FENDER
FRONT COVER
DASHBOARD
TOOL BOX
DOOR WINDOW LIFTER LEFT OPERATED
DOOR WINDOW LIFTER RIGHT OPERATED
DOOR AND DOOR GLASS
DOOR AND DOOR GLASS
DOOR COVERING LEFT
DOOR COVERING RIGHT
DOOR ARRESTOR AND DOOR ACUATING SYSTEM RIGHT
DOOR HINGE LEFT AND RIGHT
SEAT
SAFETY BELT
LOWER BERTH
UPPER BERTH
AIL-ROUND CURTAIN
TRANSVERSE CURTAIN
HEADLINING WITH MOUNTING AND GRAB HANDLE
SIDE-WALL PANELING CLOSED WITH NOUNTING I
LUGGAGE RACK
FLOOR MATS FRONT AND ANTI-SKID STRIP
SUN VISOR ROLLER
DASHBOARD PANELLING
ENGINE COWLING INSULATION
NOISE INSULATION CAB
FRONT WINDSCREEN ASSEMBLY
WIPER SYSTEM
WINDSCREEN WASHER PUMP AND ACCESSORIES
REARVIEW MIRROR
REARVIEW MIRROR LEFT BRACKET
REARVIEW MIRROR RIGHT BRACKET
DOOR MIRROR
SUN VISOR
MELT-ON FOIL
SOUND PROOFING
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
STEYR 6.5 TONS STEERING SHAFT
STEYR 6.5 TONS STEERING SHAFT BRAKE
STR DOUBLE BRIDGE SHELL
STR REAR AXLE DRIVE
STR DRIVE WHEEL PLANETARY REDUCER I
STR DRIVE WHEEL PLANETARY REDUCER II
STR DRIVE AXLE BRAKE I
STR DRIVE AXLE BRAKE II
AIR CLEANING DEVICE (F2000/WP12)
EXPANSION BOX SYSTEM
COOLER SYSTEM (F3000/WP12)
DUSTPROOF NET
PREVENTING CIRCUMFLUENCE SYSTEM
EXHAUSTING AND EGP
UREA SUPPLY TANK
ENGINE SUSPENSION
TRANSMISSION MOUNT (KOKUSAN DELONG 8x4 MODELS)
TRANSMISSION CONTROL (SHIFTING DEVECE)
PULL DIAPHRAGM CLUTCH x430
PULL CLUTCH CONTROL DEVICE
PROPELLER SHAFT SYSTEM
FRONT SUSPENSION (DC93319690507)
REAR SUSPENSION I
REAR SUSPENSION II
FRONT SHOCK ABSORBER (DC93319680109)
FRONT STABILIZER BAR (DC93319680109)
REAR STABILIZER BAR (DC93319680109)
WHEELING SYSTEM
STEERING TRANSMISSION DEVICE
STEERING COLUMN ADJUSTABLE
STEERING HYDRAULIC DEVICE
FRAM ASSY
CROSS MEMBER
FUEL TANK ASSEMBLY
ACCELEROGRAPH CONTROL DEVICE
EXHAUST BRAKE CONTROL
AIR COMPESSOR OUTER LINE
AIR TANK FIXING (I)
AIR TANK FIXING (II)
AIR COMPESSOR OUTER LINE
AIR DRYER, FOUR-LOOP GUARD VALVE, AIR TANK FIXING
CONNECTING PARTS,LINE & NIPPLE JOINT
CONNECTING PARTS,LINE & NIPPLE JOINT
CONNECTING PARTS,LINE & NIPPLE JOINT
SERVE BRAKE CONTROL DEVICE
PARKING BRAKE CONTROL DEVICE
CONNECTING PARTS,LINE & NIPPLE JOINT
CONNECTING PARTS,LINE & NIPPLE JOINT
CONNECTING PARTS,LINE & NIPPLE JOINT
SWITCH, RADIO AND CIGARETTE LIGHTER
SWITCH
COMMBINATION SWITCH
BRAKE LIGHT SWITCH
DIAGNOSIS PANEL
RADIO LOUDHAILER, WIRE
LEFT, RIGHT FRONT WIRING
ELECTRONICAL HORN
AIR PRESSURE SENSOR
COMBINATION GAUGE ASSY WITH FRAME
SWITCH, RADIO AND CIGARETTE LIGHTER
EXHAUST BRAKE SWITCH
NEAR SWITCH
ELECTRIC PANEL I
CENTER ELECTRIC PANEL II
ELECTRIC PANEL SCUTCHEON
PLUG
CENTRAL ELECTRICAL SYSTEM
SWITCH
WIRING
OTHER CABIN WIRING
RELAY, FUSE
ABS CONTROLLER
OTHER CABIN WIRING
RELAY, FUSE
SWITCH
OTHER CABIN WIRING
RELAY, FUSE
OTHER CABIN WIRING
RELAY, FUSE
CAB INNER ELECTRONICAL DEVICE
PUMP
PLUG KEY FOR ELECTRIC WINDOW LIFTER SWITCH
FLOODLIGHT
FLOODLIGHT ON REAR PANNEL
WIRING
TRANSMISSION HARNESS
TRANSMISSION HARNESS
TRANSMISSION HARNESS
TRANSMISSION HARNESS
TRANSMISSION HARNESS
FRAME HARNESS
FRAME HARNESS
FRAME HARNESS
FRAME HARNESS
CHASSIS ELECTRIC/WP10/COLD AREA
VALVE
CHASSIS/COLD AREA
CHASSIS ELECTRICAL/ADDITIONAL/K36/84/WABCO 6ABS/NEW
CHASSIS/COLD AREA
CHASSIS/COLD AREA
BATTERY BOX MOUNTING
BATTERY BOX
MAIN BATTERY SWITCH
HEADLAMPS
FOGLIGHTS
FLASHERS IN BUMPER
HIGH POSITION LIGHTS
SIDE-MARKER LIGHTS
TAIL LIGHT HOLDER / GENERAL PURPOSE / F3000
AIR SYSTEM
AIR SYSTEM
AIR INTAKE BOX ON CAB
AIR DUCT
AIR CONDITION PIPES
HEATER DEVICE (WITH AIR CONDITION)
HEATER DEVICE (WITH AIR CONDITION) (WP10, WP12, WD12)
TEMPERATURE SENSOR
AIR CONDITION CONTROLLER
ELECTRONIC CONTROL UNITS FOR AIR CONDITIONING
CAB TILTING MECHANISM L.H. DRIVE VEHICLE
SPRING
CAB LOCKING DEVICE
CAB HYDRAULIC TURNING SYSTEM
LEFT/RIGHT FENDER BRACKET
FENDER LEFT BEHIND CAB
FENDER RIGHT BEHIND CAB
FOOT PANEL BRACKET
LEFT DOOR STEP
RIGHT DOOR STEP
BUMPER AND FRONT BRACKET
REAR DRILL PROTECTION FRAME
FRAM FOREPART ACCESSORY
DRAW GEAR
CAB VEHICLE TYPE LETTERS
CAB DECORATION SIGN AND REFLECTIVE LOGO
PARKING WEDGE
1
5
6
10
11
12
13
14
15
16
17
18
19
Позиция на иллюстрации
Заводской номер детали
Название детали
1
SZ979000907
Bracket
2
Q150B1250
Болт
3
Q340B12
Гайка
4
Q40112
Шайба
5
Q40312
Шайба пружинная
6
DZ93189777202
Harness guide fixing bracket
7
Q150B1450
Hex head bolt
8
Q340B14
Гайка
9
Q40114
Шайба
10
Q40314
Шайба пружинная
11
DZ93189777201
Wire harness fixing bracket (engine mount)
12
DZ93189777211
Wire harness fixing bracket (gearbox suspension)
13
DZ93189777212
Wire harness fixing bracket (after gearbox mounting)
14
DZ95189777005
Drive recorder cable
15
121300050086
Seal
16
190000810930
Seal line
17
DZ95189711706
Bracket
18
DZ96189777002
Harness turn bracket
19
Q340B14
Гайка
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
