Каталог запасных частей к технике: Shaanxi Shacman SX3316DR366 (F2000). FRAME WIRING HARNESS

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW DAF DongFeng FAW Foton HOWO Hyundai IVECO JAC Motors LGMG MAN Shaanxi SITRAK Studebaker Tata Volvo Автокомпонент Плюс БелАЗ Брянский Арсенал ГАЗ ЗИЛ КАЗ Камский автозавод КрАЗ Мадара МАЗ МЗКТ МоАЗ Нефтекамский автозавод Ставропольский Завод АвтоПрицепов ТАТРА Тонар УралАЗ ЧМЗАП

Модель Не выбрано DeLONG Е-3 (самосвал) (2008) DeLONG Е-3 (тягач) (2008) MAN-F2000 (SX3254JS384) (2008) Shacman F2000 (2013) Shacman F3000 (2013) Shacman SX3255DR385 (2011) Shacman SX3256DR384 (F3000) (2015) Shacman SX3256DT384 (2011) Shacman SX3258DR384—F2000 Shacman SX3316DR366 (F2000) (2011) Shacman SX3316DT366 (2011) Shacman SX3316DT426C Shacman SX3316HT406C Shacman SX4255DV385 (2011) Shacman SX4256NT324 Shacman SX42584V324 Shacman SX42584V384TL Shacman SX5256GJBMR364 (2018) Shacman SX5318GJBDT386TL SX-3255-DR 3804B 6х4

Схема > Не выбрано HIGH ROOF CAB WELDING ASSY LEFT FENDER RIGHT FENDER FRONT COVER DASHBOARD TOOL BOX DOOR WINDOW LIFTER LEFT OPERATED DOOR WINDOW LIFTER RIGHT OPERATED DOOR AND DOOR GLASS DOOR AND DOOR GLASS DOOR COVERING LEFT DOOR COVERING RIGHT DOOR ARRESTOR AND DOOR ACUATING SYSTEM RIGHT DOOR HINGE LEFT AND RIGHT SEAT SAFETY BELT LOWER BERTH UPPER BERTH AIL-ROUND CURTAIN TRANSVERSE CURTAIN HEADLINING WITH MOUNTING AND GRAB HANDLE SIDE-WALL PANELING CLOSED WITH NOUNTING LUGGAGE RACK FLOOR MATS FRONT AND ANTI-SKID STRIP SUN VISOR ROLLER DASHBOARD PANELLING ENGINE COWLING INSULATION FRONT WINDSHIELD ASSEMBLY FRONT WINDSHIELD ASSEMBLY WIPER SYSTEM WINDSCREEN WASHER PUMP AND ACCESSORIES REARVIEW MIRROR REAR VIEW MIRROR LEFT BRACKET REAR VIEW MIRROR RIGHT BRACKET DOOR MIRROR SUN VISOR MELT-ON FOIL SOUND PROOFING DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY STEYR 6.5 TONS STEERING SHAFT STEYR 6.5 TON STEERING SHAFT BRAKE STR TWO-STAGE BRIDGE HOUSING STR REAR AXLE DRIVE STR DRIVE AXLE WHEEL PLANETARY REDUCER I STR DRIVE BRIDGE WHEEL PLANETARY REDUCER II STR DRIVE AXLE BRAKE I STR DRIVE BRIDGE BRAKE II AIR CLEANING DEVICE EXPANSION BOX SYSTEM COOLER SYSTEM (F3000/WP10) DUSTPROOF NET PREVENTING CIRCUMFLUENCE SYSTEM WP10 EXHAUSTING AND MUFFLER UREA SUPPLY TANK ENGINE SUSPENSION GEAR BOX SUPPORT SHIFTING DEVECE PULL DIAPHRAGM CLUTCH PULL CLUTCH CONTROL DEVICE PROPELLER SHAFT SYSTEM FRONT SUSPENSION (DC93319690507) REAR SUSPENSION 1 REAR SUSPENSION 2 FRONT SHOCK ABSORBER (DC93319680109) FRONT STABILIZER BAR (DC93319680109) REAR STABILIZER BAR (DC93319680109) WHEELING SYSTEM STEERING TRANSMISSION DEVICE STEERING COLUMN ADJUSTABLE STEERING HYDRAULIC DEVICE FRAM ASSY CROSS MEMBER FUEL TANK ASSEMBLY ACCELEROGRAPH CONTROL DEVICE EXHAUST BRAKE CONTROL AIR COMPESSOR OUTER LINE AIR TANK FIXING AIR TANK FIXING AIR COMPESSOR OUTER LINE AIR DRYER, FOUR-LOOP GUARD VALVE, AIR TANK FIXING CONNECTING PARTS, LINE AND NIPPLE JOINT CONNECTING PARTS, LINE AND NIPPLE JOINT CONNECTING PARTS, LINE AND NIPPLE JOINT SERVE BRAKE CONTROL DEVICE PARKING BRAKE CONTROL DEVICE SWITCH AND CIGARETTE LIGHTER SWITCH COMMBINATION SWITCH BRAKE LIGHT SWITCH DIAGNOSIS PANEL LOUDHAILER WIRE LEFTN RIGHT FRONT WIRING ELECTRONICAL HORN AIR PRESSURE SENSOR COMBINATION GAUGE ASSY WITH FRAME SWITCH RADIO AND CIGARETTE LIGHTER EXHAUST BRAKE SWITCH NEAR SWITCH ELECTRIC PANEL 1 CENTER ELECTRIC PANEL 2 ELECTRIC PANEL SCUTCHEON PLUG CENTRAL ELECTRICAL SYSTEM SWITCH WIRING OTHER CABIN WIRING RELAY FUSE ABS CONTROLLER OTHER CABIN WIRING RELAY FUSE SWITCH OTHER CABIN WIRING RELAY FUSE OTHER CABIN WIRING RELAY FUSE CAB INNER ELECTRONICAL DEVICE PUMP PLUG KEY FOR ELECTRIC WINDOW LIFTER SWITCH FLOODLIGHT FLOODLIGHT ON REAR PANNEL WIRING HARNESS GEARBOX WIRING HARNESS GEARBOX WIRING HARNESS GEARBOX WIRING HARNESS GEARBOX WIRING HARNESS GEARBOX WIRING HARNESS FRAME WIRING HARNESS FRAME WIRING HARNESS FRAME WIRING HARNESS FRAME WIRING HARNESS CHASSIS APPLIANCE/WP10/COLD ZONE VALVE CHASSIS APPLIANCE/COLD ZONE CHASSIS APPLIANCE/ADDITIONAL/K36/8x4/WABCO 6ABS/NEW CHASSIS APPLIANCE/COLD ZONE CHASSIS APPLIANCE/COLD ZONE BATTERY BOX MOUNTING BATTERY BOX MAIN BATTERY SWITCH HEADLAMPS FOGLIGHTS FLASHERS IN BUMPER HIGH POSITION LIGHTS SIDE-MARKER LIGHTS TAILLIGHT BRACKET/UNIVERSAL/F3000 AIR SYSTEM AIR SYSTEM AIR INTAKE BOX ON CAB AIR DUCT AIR CONDITION PIPES HEATER DEVICE (WITH AIR CONDITION) HEATER DEVICE (WITH AIR CONDITION) (WP104, WP124, WD12) TEMPERATURE SENSOR AIR CONDITION CONTROLLER ELECTRONIC CONTROL UNITS FOR AIR CONDITIONING CAB TILTING MECHANISM L.H. DRIVE VEHICLE FRONT BEARING SPRING CAB LOCKING DEVICE CAB HYDRAULIC TILTING EQUIPMENT LEFT/RIGHT FENDER BRACKET FENDER LEFT BEHIND CAB FENDER RIGHT BEHIND CAB FOOT PANEL BRACKET LEFT DOOR STEP RIGHT DOOR STEP BUMPER AND FRONT BRACKET ПРОТИВОПОДКАТНОЕ УСТРОЙСТВО FRAM FOREPART ACCESSORY DRAW GEAR CAB VEHICLE TYPE LETTERS CAB DECORATIVE SIGNAGE AND REFLECTIVE LOGO PARKING WEDGE

1

4

5

11

12

13

14

15

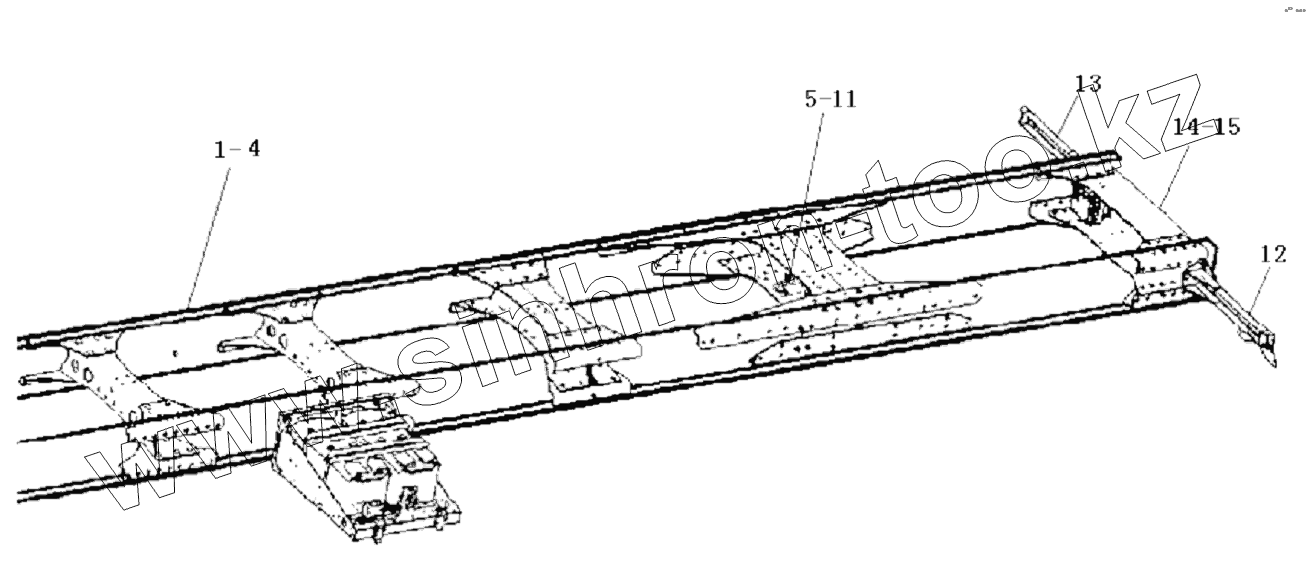

Позиция на иллюстрации	Заводской номер детали		Название детали
1	DZ95319773742		Cold Area / Frame Harness
2	DZ93189777033		Fastening strap with spacer
3	DZ93189777034		Isolated block
4	DZ93189776062		Cold zone / cab lock signal switch wiring harness
5	DZ9100360278		Threading sheath
6	DZ9100360279		Threading sheath
7	190003171392		Plastic fastening tape
8	Q150B0818		Болт
9	Q40208		Шайба
10	Q340B08		Гайка
11	DZ93189776652		Cold area differential cable harness
12	DZ91189774012		Cold area left taillight wire
13	DZ9100774530		Cold area right taillight wire
14	DZ9100360285		Threading sheath
15	DZ93189777031		Fastening strap with fixing seat

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
