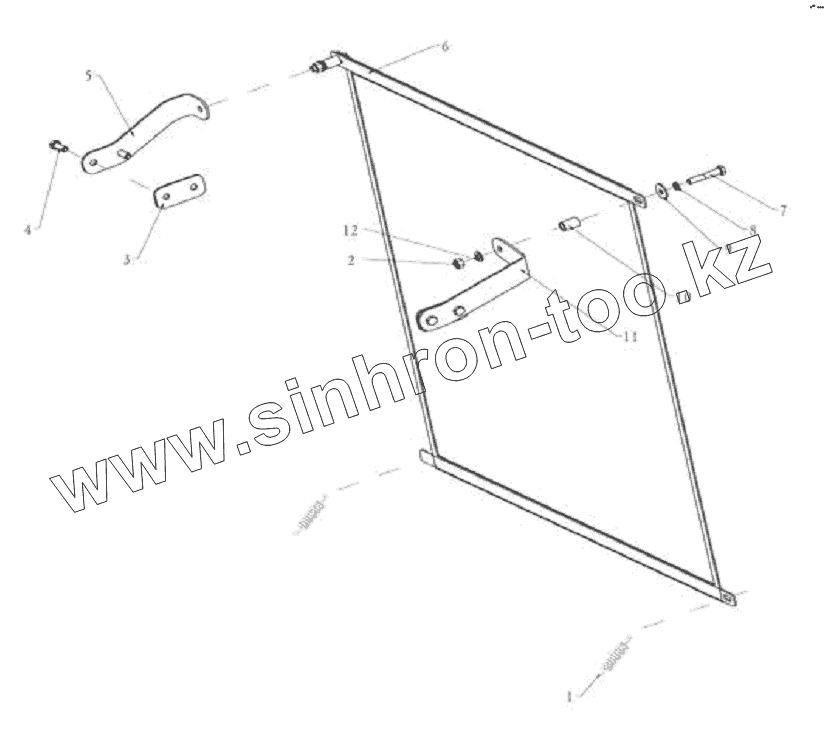

Каталог запасных частей к технике: Shaanxi Shacman SX3256DT384. DUSTPROOF NET
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
DAF
DongFeng
FAW
Foton
HOWO
Hyundai
IVECO
JAC Motors
LGMG
MAN
Shaanxi
SITRAK
Studebaker
Tata
Volvo
Автокомпонент Плюс
БелАЗ
Брянский Арсенал
ГАЗ
ЗИЛ
КАЗ
Камский автозавод
КрАЗ
Мадара
МАЗ
МЗКТ
МоАЗ
Нефтекамский автозавод
Ставропольский Завод АвтоПрицепов
ТАТРА
Тонар
УралАЗ
ЧМЗАП
Модель
Не выбрано
DeLONG Е-3 (самосвал) (2008)
DeLONG Е-3 (тягач) (2008)
MAN-F2000 (SX3254JS384) (2008)
Shacman F2000 (2013)
Shacman F3000 (2013)
Shacman SX3255DR385 (2011)
Shacman SX3256DR384 (F3000) (2015)
Shacman SX3256DT384 (2011)
Shacman SX3258DR384—F2000
Shacman SX3316DR366 (F2000) (2011)
Shacman SX3316DT366 (2011)
Shacman SX3316DT426C
Shacman SX3316HT406C
Shacman SX4255DV385 (2011)
Shacman SX4256NT324
Shacman SX42584V324
Shacman SX42584V384TL
Shacman SX5256GJBMR364 (2018)
Shacman SX5318GJBDT386TL
SX-3255-DR 3804B 6х4
Схема
>
Не выбрано
F2000D HALF HIGH ROOF CAB WELDING ASSY
LEFT FENDER
RIGHT FENDER
ПЕРЕДНЕЕ ОПЕРЕНИЕ
DASHBOARD
HAND GRIPER
TOOL BOX
DOOR WINDOW LIFTER LEFT OPERATED
DOOR WINDOW LIFTER RIGHT OPERATED
DOOR AND DOOR GLASS
DOOR AND DOOR GLASS
DOOR COVERING LEFT
DOOR COVERING RIGHT
DOOR ARRESTOR AND DOOR ACUATING SYSTEM RIGHT
DOOR HINGE LEFT AND RIGHT
SEAT
SAFETY BELT
LOWER BERTH
UPPER BERTH
AIL-ROUND CURTAIN
TRANSVERSE CURTAIN
HEADLINING WITH MOUNTING AND GRAB HANDLE
SIDE-WALL PANELING CLOSED WITH NOUNTING
LUGGAGE RACK
FLOOR MATS FRONT AND ANTI-SKID STRIP
SUN VISOR ROLLER
DASHBOARD PANELLING
ENGINE COWLING INSULATION
NOISE INSULATION CAB
ЛОБОВОЕ СТЕКЛО
WIPER SYSTEM
WINDSCREEN WASHER PUMP AND ACCESSORIES
ЗЕРКАЛА
ЛЕВОЕ ЗЕРКАЛО
ПРАВОЕ ЗЕРКАЛО
ПРАВОЕ ВЕРХНЕЕ ЗЕРКАЛО
SUN VISOR
MELT-ON FOIL
SOUND PROOFING
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
MAN7.5
STR
STR
STR
STR
STR
STR
AIR CLEANING DEVICE (F3000/WP12)
COOLER SYSTEM (F3000/WP12)
DUSTPROOF NET
EXPANSION BOX SYSTEM
PREVENTING CIRCUMFLUENCE SYSTEM
EXHAUSTING AND MUFFLER
UREA SUPPLY TANK
ENGINE SUSPENSION
GEAR BOX SUPPORT
SHIFTING DEVECE
PULL DIAPHRAGM CLUTCH
PULL CLUTCH CONTROL DEVICE
PROPELLER SHAFT
Передняя подвеска
REAR SUSPENSION
REAR SUSPENSION
FRONT SHOCK ABSORBER
FRONT STABILIZER ASSY
REAR STABILIZER ASSY
WHEELING SYSTEM
STEERING TRANSMISSION DEVICE
STEERING COLUMN ADJUSTABLE
HYDRAULIC DEVICE
FRAM ASSY
FUEL TANK ASSEMBLY
ACCELEROGRAPH CONTROL DEVICE
EXHAUST BRAKE CONTROL
AIR COMPESSOR OUTER LINE
AIR TANK FIXING
AIR COMPESSOR OUTER LINE
AIR DRYER,FOUR-LOOP GUARD VALVE,AIR TANK FIXING
Двухконтурная тормозная система (8X4)
CONNECTING PARTS,LINE & NIPPLE JOINT
CONNECTING PARTS,LINE & NIPPLE JOINT
CONNECTING PARTS,LINE & NIPPLE JOINT
SERVE BRAKE CONTROL DEVICE
PARKING BRAKE CONTROL DEVICE
SWITCH AND CIGARETTE LIGHTER
SWITCH
COMMBINATION SWITCH
BRAKE LIGHT SWITCH
DIAGNOSIS PANEL
LOUDHAILER WIRE
LEFT RIGHT FRONT WIRING
ELECTRONICAL HORN
AIR PRESSURE SENSOR
COMBINATION GAUGE ASSY WITH FRAME
SWITCH, RADIO AND CIGARETTE LIGHTER
EXHAUST BRAKE SWITCH
NEAR SWITCH
ELECTRIC PANEL
CENTER ELECTRIC PANEL
ELECTRIC PANEL SCUTCHEON
PLUG
CENTRAL ELECTRICAL SYSTEM
OTHER CABIN WIRING
RELAY,FUSE
OTHER CABIN WIRING
RELAY,FUSE
ABS CONTROLLER
OTHER CABIN WIRING
RELAY,FUSE
SWITCH
OTHER CABIN WIRING
RELAY,FUSE
CAB INNER ELECTRONICAL DEVICE
PUMP
PLUG KEY FOR ELECTRIC WINDOW LIFTER SWITCH
FLOODLIGHT
FLOODLIGHT ON REAR PANNEL
WIRING
WP12E40/F3000HX/6Х4
WP12E40/F3000HX/6Х4
WP12E40/F3000HX/6Х4
WP12E40/F3000HX/6Х4
WP12E40/F3000HX/6Х4
WP12E40/F3000HX/6Х4
Chassis electrical / cold zone
The electromagnetic valve
Electrical chassis
WP10 / Cold Regions
Solenoid valve
Chassis electrical / Cold Regions
Chassis electrical / Cold Regions
Additional K38/B38/WABCO 6 ABS
Chassis electrical / cold zone
BATTERY BOX MOUNTING
BATTERY BOX
MAIN BATTERY SWITCH
HEADLAMPS
FOGLIGHTS
FLASHERS IN BUMPER
HIGH POSITION LIGHTS
SIDE-MARKER LIGHTS
Taillight bracket / universal / F3000
AIR SYSTEM
AIR SYSTEM
AIR INTAKE BOX ON CAB
AIR DUCT
AIR CONDITION PIPES
HEATER DEVICE (WITH AIR CONDITION)
HEATER DEVICE (WITH AIR CONDITION) WP10 WP12 WD12
TEMPERATURE SENSOR
AIR CONDITION CONTROLLER
ELECTRONIC CONTROL UNITS FOR AIR CONDITIONING
CAB TILTING MECHANISM L.H. DRIVE VEHICLE
FRONT BEARING SPRING
CAB LOCKING DEVICE
CAB HYDRAULIC TILTING EQUIPMENT
LEFT/RIGHT FENDER BRACKET
FENDER LEFT BEHIND CAB
FENDER RIGHT BEHIND CAB
FOOT PANEL BRACKET
LEFT DOOR STEP
RIGHT DOOR STEP
BUMPER AND FRONT BRACKET
Rear anti-drill protection frame
CAB VEHICLE TYPE LETTERS
Cab decorative signage and reflective logo
FRAM FOREPART ACCESSORY
DRAW GEAR
Parking wedge
1
1
3
4
5
6
7
8
9
10
11
12
13
Позиция на иллюстрации
Заводской номер детали
Название детали
1
DZ95259537001
Spring
3
DZ95259538931
Plate
4
Q150B0818
Болт
5
DZ95259538926
Bracket
6
DZ95259538940
Web
7
Q150B0845T1F3
Hex screw
8
Q40308
Шайба пружинная
9
Q40208
Шайба
10
135700730116
Pipe
11
DZ95259537013
Bracket
12
Q40108
Шайба А8,4х16х1,6-200НV-МАN183-В4
13
Q33208T2F3
Hex nut
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
