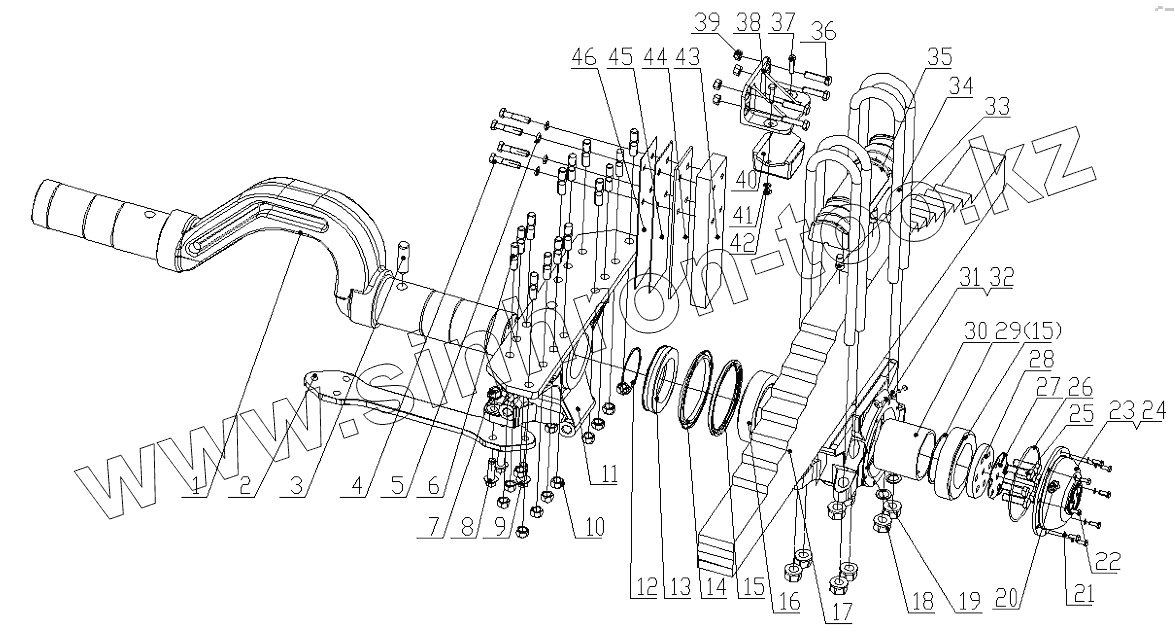

Каталог запасных частей к технике: Shaanxi Shacman SX3256DR384 (F3000). (DC95319520801) REAR SUSPENSION I
/64.gif)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
29
29
29
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | DZ95259520832 | Balance axis | |
| 2 | DZ95259520826 | Bracket lower connecting plate | |
| 3 | 190003900007 | Палец | |
| 4 | Q151B1465T1F3 | Hex head bolt-fine teeth | |
| 5 | Q40314 | Шайба пружинная | |
| 6 | 199014520227 | Stud bolts | |
| 7 | Q33016T13F2 | All metal hex flange face lock nut | |
| 8 | Q1801660TF2 | Hexagon flange face bearing toothed bolt | |
| 9 | Q1801645TF2 | Hexagon flange face bearing toothed bolt | |
| 10 | 190003871353 | Type 1 Hex Nut - Fine Tooth - A-- Nut | |
| 11 | DZ95259520825 | Bracket | |
| 12 | DZ91259520504 | Seal ring | |
| 13 | 199114520136 | Кольцо уплотнительное | |
| 14 | DZ91259520222 | Ring | |
| 15 | AZ9114520223 | Кольцо уплотнительное | |
| 16 | 199114520042 | Подшипник | |
| 17 | DZ9114520240 | Рессора задняя в сборе | |
| 18 | DZ91259527024 | Dtf hex flange nut | |
| 19 | DZ91259520038 | Balance shaft housing | |
| 20 | 190003962021 | Hex plug screw | |
| 21 | Q40308 | Шайба пружинная | |
| 22 | Q150B0822T1F3 | Hex head bolt | |
| 23 | DZ91259520211 | Shell cover | |
| 24 | DZ91259520212 | Shell cover | |
| 25 | Q151B1850TF2 | Hex bolt | |
| 26 | DZ91259520505 | O-ring seal | |
| 27 | DZ95259520845 | Stop washer | |
| 28 | DZ95259520845 | Stop washer | |
| 29 | 199014520192 | Positioning washer | |
| 29 | 199014520193 | Positioning washer | |
| 29 | 199014520194 | Positioning washer | |
| 29 | 199014520303 | Positioning washer | |
| 29 | 199014520306 | Positioning washer | |
| 29 | 199114520059 | Positioning washer | |
| 29 | AZ9100520008 | Positioning washer | |
| 30 | 199014520191 | Втулка | |
| 31 | DZ91259520301 | Hex head bolt | |
| 32 | Q72308T5F | Gasket | |
| 33 | 199000520006 | Направляющий палец | |
| 34 | DZ9118520124 | Rear spring riding bolt | |
| 35 | SZ952000770 | Riding bolt seat | |
| 36 | Q1811455TF3 | Hexagon flange face bearing toothed bolt - fine teeth | |
| 37 | Q150B1040 | Болт | |
| 38 | DZ95259521011 | Buffer block bracket | |
| 39 | 06.11251.2005 | Гайка М14х1,5-10-МАN183-В1 | |
| 40 | SZ952000730 | Buffer block assembly | |
| 41 | Q40310 | Шайба | |
| 42 | Q340B10T2F3 | Type 1 hex nut | |
| 43 | DZ95259520435 | guide plate | |
| 44 | DZ95259520306 | Balance board | |
| 45 | DZ95259520302 | Balance board | |
| 46 | DZ95259520301 | Balance board |
