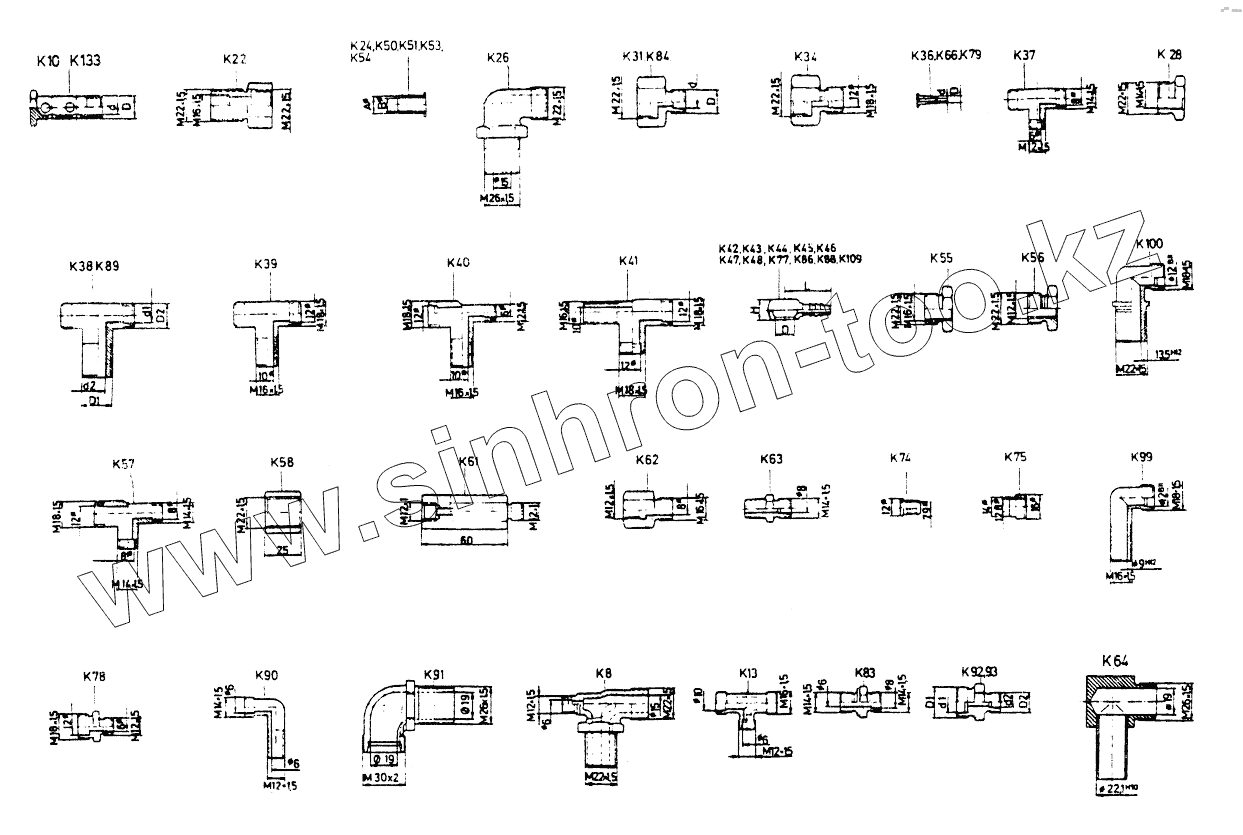

Каталог запасных частей к технике: Shaanxi Shacman SX3255DR385. LINE AND NIPPLE JOINT

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW DAF DongFeng FAW Foton HOWO Hyundai IVECO JAC Motors LGMG MAN Shaanxi SITRAK Studebaker Tata Volvo Автокомпонент Плюс БелАЗ Брянский Арсенал ГАЗ ЗИЛ КАЗ Камский автозавод КрАЗ Мадара МАЗ МЗКТ МоАЗ Нефтекамский автозавод Ставропольский Завод АвтоПрицепов ТАТРА Тонар УралАЗ ЧМЗАП

Модель Не выбрано DeLONG Е-3 (самосвал) (2008) DeLONG Е-3 (тягач) (2008) MAN-F2000 (SX3254JS384) (2008) Shacman F2000 (2013) Shacman F3000 (2013) Shacman SX3255DR385 (2011) Shacman SX3256DR384 (F3000) (2015) Shacman SX3256DT384 (2011) Shacman SX3258DR384—F2000 Shacman SX3316DR366 (F2000) (2011) Shacman SX3316DT366 (2011) Shacman SX3316DT426C Shacman SX3316HT406C Shacman SX4255DV385 (2011) Shacman SX4256NT324 Shacman SX42584V324 Shacman SX42584V384TL Shacman SX5256GJBMR364 (2018) Shacman SX5318GJBDT386TL SX-3255-DR 3804B 6х4

Схема > Не выбрано HALF HIGH ROOF CAB WELDING ASSY LEFT FENDER RIGHT FENDER FRONT COVER DASHBOARD PANELLING ENGINE COWLING INSULATION NOISE INSULATION CAB SUN VISOR FRAM ASSY CROSS MEMBER FUEL TANK ASSEMBLY 380L ACCELEROGRAPH CONTROL DEVICE EXHAUST BRAKE CONTROL BATTERY BOX MOUNTING BATTERY BOX LEFT/RIGHT FENDER BRACKET FENDER LEFT BEHIND CAB FENDER RIGHT BEHIND CAB FOOT PANEL BRACKET LEFT DOOR STEP RIGHT DOOR STEP BUMPER AND FRONT BRACKET REAR ANTI-DRILLING PROTECTION FRAME FRAM FOREPART ACCESSORY DRAW GEAR DASHBOARD (10 INTERIOR) HAND GRIPER SEAT SAFETY BELT LOWER BERTH UPPER BERTH AIL-ROUND CURTAIN TRANSVERSE CURTAIN HEADLINING WITH MOUNTING AND GRAB HANDLE SIDE-WALL PANELING CLOSED WITH NOUNTING I LUGGAGE RACK FLOOR MATS FRONT AND ANTI-SKID STRIP SUN VISOR ROLLER MELT-ON FOIL SOUND PROOFING RADIO LOUDHAILER TRANSFORMER WIRE DOOR WINDOW LIFTER LEFT OPERATED DOOR WINDOW LIFTER RIGHT OPERATED DOOR AND DOOR GLASS DOOR AND DOOR GLASS DOOR COVERING LEFT DOOR COVERING RIGHT DOOR ARRESTOR AND DOOR ACUATING SYSTEM RIGHT DOOR HINGE LEFT AND RIGHT REARVIEW MIRROR REARVIEW MIRROR LEFT BRACKET REARVIEW MIRROR RIGHT BRACKET DOOR MIRROR WINDSHIELD ASSEMBLY WIPER SYSTEM WINDSCREEN WASHER PUMP AND ACCESSORIES PUMP AIR SYSTEM AIR SYSTEM AIR INTAKE BOX ON CAB AIR DUCT AIR CONDITION PIPES HEATER DEVICE (WITH AIR CONDITION) HEATER DEVICE (WITH AIR CONDITION) (APPLICABLE TO WP10, WP12, WD12 ENGINES) CAB TILTING MECHANISM L.H. DRIVE VEHICLE FRONT BEARING SPRING CAB LOCKING DEVICE CAB HYDRAULIC TILTING EQUIPMENT AIR COMPESSOR OUTER LINE DOUBAL CIRCUIT BRAKE SYSTEM (66) EXHAUST BRAKE CONTROL PNEUMATIC HORN CONNECTING PARTS, LINE AND NIPPLE JOINT CONNECTING PARTS, LINE AND NIPPLE JOINT LINE AND NIPPLE JOINT AIR DRYER LINE AIR TANK FIXING CONNECTING PARTS, LINE AND NIPPLE JOINT CONNECTING PARTS, LINE AND NIPPLE JOINT CONNECTING PARTS, LINE AND NIPPLE JOINT SERVE BRAKE CONTROL DEVICE PARKING BRAKE CONTROL DEVICE BAROMETRIC PRESSURE SENSOR VALVE VALVE HEADLAMPS FOGLIGHTS FLASHERS IN BUMPER HIGH POSITION LIGHTS SIDE-MARKER LIGHTS TAILLIGHT BRACKET / GENERAL / F3000 TOOL BOX DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY PARKING WEDGE CAB VEHICLE TYPE LETTERS CAB DECORATIVE SIGNS AND REFLECTIVE SIGNS AIR CLEANING DEVICE (WP10) COOLER SYSTEM (F3000/WP10) DUSTPROOF NET EXPANSION BOX SYSTEM EXHAUST PIPE AND MUFFLER F2000 / (WP10 ENGINE_4 2/6 4) ENGINE SUSPENSION FRONT AXLE DRIVE FRONT AXLE HOUSING PLANETARY GEAR REDUCER DRIVE FRONT AXLE STEERING KNUCKLE FRONT AXLE BRAKING PROPELLER SHAFT STR DOUBLE STAGE BRIDGE HOUSING STR REAR AXLE DRIVE STR TRANSAXLE WHEEL PLANETARY REDUCER I STR DRIVE AXLE WHEEL PLANETARY REDUCER II STR TRANSAXLE BRAKE I STR TRANSAXLE BRAKE II SUSPENSION FRONT SUSPENSION REAR SUSPENSION I REAR SUSPENSION II FRONT SHOCK ABSORBER (DC93259680110) FRONT STABILIZER ASSY (DC93259680110) REAR STABILIZER ASSY (DC93259680110) WHEELING SYSTEM STEERING COLUMN ADJUSTABLE STEERING COLUMN ADJUSTABLE HYDRAULIC DEVICE CHASSIS APPLIANCES / COLD AREA CHASSIS APPLIANCES / COLD AREA CHASSIS APPLIANCES / COLD AREA TRANSMISSION OPERATION (SHIFTING DEVECE) PULL-TYPE DIAPHRAGM SPRING CLUTCH 430 PULL CLUTCH CONTROL DEVICE SWITCH, RADIO AND CIGARETTE LIGHTER SWITCH COMMBINATION SWITCH BRAKE SWITCH DIAGNOSTIC INTERFACE DEVICE BOARD COMBINATION GAUGE ASSY WITH FRAME SWITCH, RADIO AND CIGARETTE LIGHTER EXHAUST BRAKE SWITCH NEAR SWITCH ELECTRIC PANEL I CENTER ELECTRIC PANEL II ELECTRIC PANEL SCUTCHEON PLUG CENTRAL ELECTRICAL SYSTEM SWITCH WIRING OTHER CABIN WIRING RELAY, FUSE ABS CONTROLLER OTHER CABIN WIRING RELAY, FUSE OTHER CABIN WIRING RELAY, FUSE SWITCH OTHER CABIN WIRING RELAY, FUSE CABIN WIRING SWITCH CAB INNER ELECTRONICAL DEVICE REAR LIGHT LOOMS ON CAB OUTER PLUG KEY FOR ELECTRIC WINDOW LIFTER SWITCH FLOODLIGHT FLOODLIGHT ON REAR PANNEL WIRING CHASSIS ELECTRIC / NON-TRACTOR / F2000 / 6 4/3800/725 / COLD CHASSIS ELECTRIC / NON-TRACTOR / F2000 / 6 4/3800/725 / COLD CHASSIS ELECTRIC / NON-TRACTOR / F2000 / 6 4/3800/725 / COLD CHASSIS ELECTRIC / NON-TRACTOR / F2000 / 6 4/3800/725 / COLD CHASSIS ELECTRIC / NON-TRACTOR / F2000 / 6 4/3800/725 / COLD CHASSIS ELECTRIC / NON-TRACTOR / F2000 / 6 4/3800/725 / COLD CHASSIS ELECTRICAL / ADDITIONAL / K38 / WABCO 6ABS / COLD MAIN BATTERY SWITCH

Позиция на иллюстрации	Заводской номер детали		Название детали
1	190003559482		Тройник
1	190003962025		Hex.screw
1	199000360410		Nozzle
1	190003559955		Nozzle
2	190003559386		Nozzle
2	190003559462		Nozzle
2	190003962621		Hollow bolt
2	190003559946		Nozzle
3	190003559490		Nozzle
3	190003559947		Nozzle
3	190003559778		Hex. Nut
3	190003559472		Nozzle
4	190003559463		Nozzle
4	190003559948		Nozzle
4	190003559751		Nozzle
4	190003559766		Nozzle
5	190003559965		Tee joint
5	190003559483		Tee connector
5	190003559385		Nozzle
5	190003559486		Nozzle
6	190003559473		Connector
6	190003559497		Connector
6	190003559967		Tee joint
6	190003559668		Nozzle
7	190003559945		Nozzle
7	190003559496		Connector
7	190003559958		Tee joint
7	190003559547		Гайка
8	199014230016		Connector
8	T0088100		Кронштейн
8	190003559474		Nozzle
9	199100360111		Tee connector
9	190003559479		Connector
10	199100360113		Connector
11	199100360114		Tee joint
12	199100360115		Tee joint
13	199100360116		Tee joint
14	199100360117		Connector
15	190003962029		Hex.screw
16	190003962038		Болт-пробка
17	199100360112		Tee joint

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
