Shacman SX3255DR385

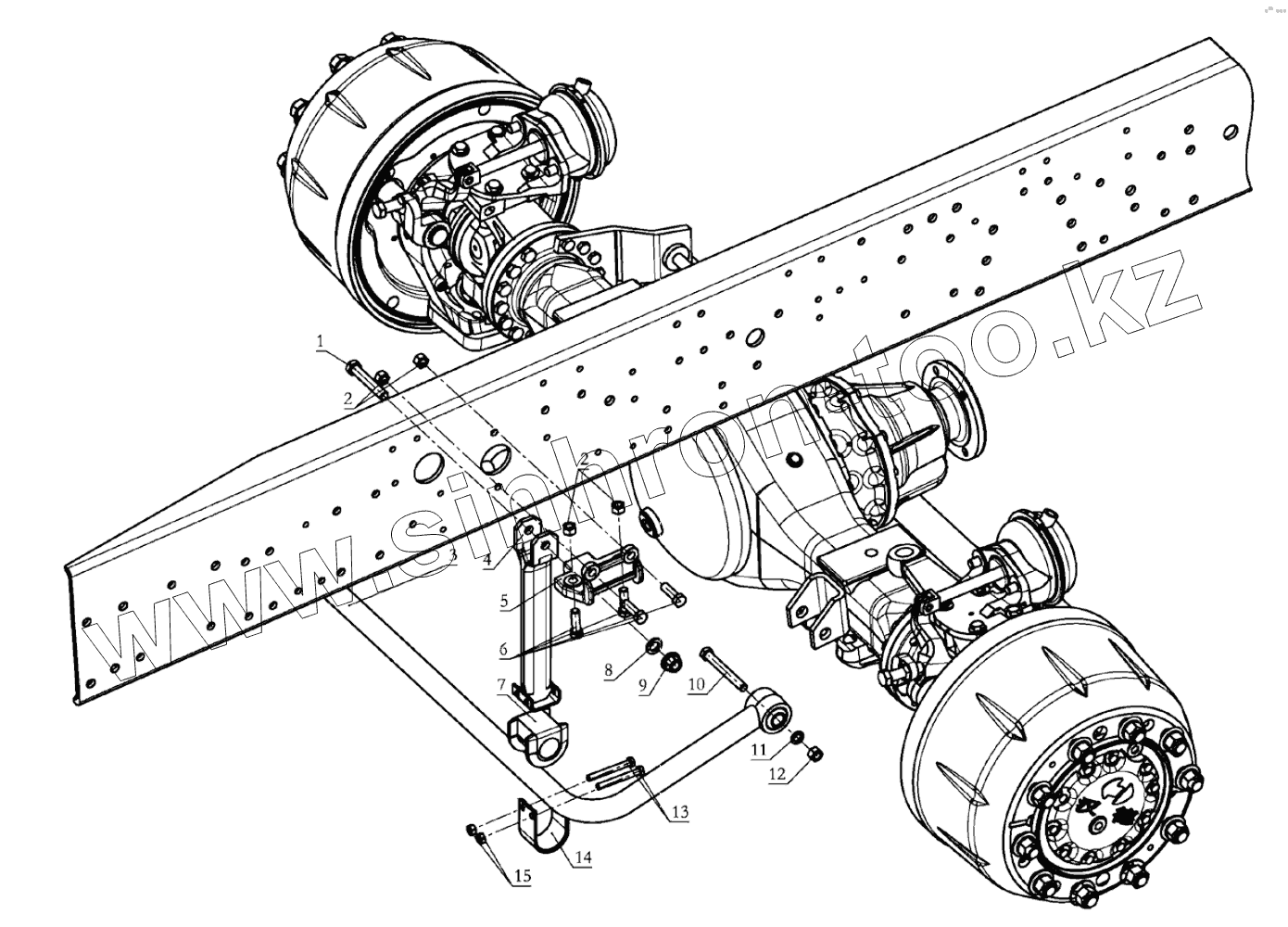

FRONT STABILIZER ASSY (DC93259680110)
Каталог запасных частей к технике: Shaanxi Shacman SX3255DR385. FRONT STABILIZER ASSY (DC93259680110)
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
DAF
DongFeng
FAW
Foton
HOWO
Hyundai
IVECO
JAC Motors
LGMG
MAN
Shaanxi
SITRAK
Studebaker
Tata
Volvo
Автокомпонент Плюс
БелАЗ
Брянский Арсенал
ГАЗ
ЗИЛ
КАЗ
Камский автозавод
КрАЗ
Мадара
МАЗ
МЗКТ
МоАЗ
Нефтекамский автозавод
Ставропольский Завод АвтоПрицепов
ТАТРА
Тонар
УралАЗ
ЧМЗАП
Модель
Не выбрано
DeLONG Е-3 (самосвал) (2008)
DeLONG Е-3 (тягач) (2008)
MAN-F2000 (SX3254JS384) (2008)
Shacman F2000 (2013)
Shacman F3000 (2013)
Shacman SX3255DR385 (2011)
Shacman SX3256DR384 (F3000) (2015)
Shacman SX3256DT384 (2011)
Shacman SX3258DR384—F2000
Shacman SX3316DR366 (F2000) (2011)
Shacman SX3316DT366 (2011)
Shacman SX3316DT426C
Shacman SX3316HT406C
Shacman SX4255DV385 (2011)
Shacman SX4256NT324
Shacman SX42584V324
Shacman SX42584V384TL
Shacman SX5256GJBMR364 (2018)
Shacman SX5318GJBDT386TL
SX-3255-DR 3804B 6х4
Схема
>
Не выбрано
HALF HIGH ROOF CAB WELDING ASSY
LEFT FENDER
RIGHT FENDER
FRONT COVER
DASHBOARD PANELLING
ENGINE COWLING INSULATION
NOISE INSULATION CAB
SUN VISOR
FRAM ASSY
CROSS MEMBER
FUEL TANK ASSEMBLY 380L
ACCELEROGRAPH CONTROL DEVICE
EXHAUST BRAKE CONTROL
BATTERY BOX MOUNTING
BATTERY BOX
LEFT/RIGHT FENDER BRACKET
FENDER LEFT BEHIND CAB
FENDER RIGHT BEHIND CAB
FOOT PANEL BRACKET
LEFT DOOR STEP
RIGHT DOOR STEP
BUMPER AND FRONT BRACKET
REAR ANTI-DRILLING PROTECTION FRAME
FRAM FOREPART ACCESSORY
DRAW GEAR
DASHBOARD (10 INTERIOR)
HAND GRIPER
SEAT
SAFETY BELT
LOWER BERTH
UPPER BERTH
AIL-ROUND CURTAIN
TRANSVERSE CURTAIN
HEADLINING WITH MOUNTING AND GRAB HANDLE
SIDE-WALL PANELING CLOSED WITH NOUNTING I
LUGGAGE RACK
FLOOR MATS FRONT AND ANTI-SKID STRIP
SUN VISOR ROLLER
MELT-ON FOIL
SOUND PROOFING
RADIO LOUDHAILER TRANSFORMER WIRE
DOOR WINDOW LIFTER LEFT OPERATED
DOOR WINDOW LIFTER RIGHT OPERATED
DOOR AND DOOR GLASS
DOOR AND DOOR GLASS
DOOR COVERING LEFT
DOOR COVERING RIGHT
DOOR ARRESTOR AND DOOR ACUATING SYSTEM RIGHT
DOOR HINGE LEFT AND RIGHT
REARVIEW MIRROR
REARVIEW MIRROR LEFT BRACKET
REARVIEW MIRROR RIGHT BRACKET
DOOR MIRROR
WINDSHIELD ASSEMBLY
WIPER SYSTEM
WINDSCREEN WASHER PUMP AND ACCESSORIES
PUMP
AIR SYSTEM
AIR SYSTEM
AIR INTAKE BOX ON CAB
AIR DUCT
AIR CONDITION PIPES
HEATER DEVICE (WITH AIR CONDITION)
HEATER DEVICE (WITH AIR CONDITION) (APPLICABLE TO WP10, WP12, WD12 ENGINES)
CAB TILTING MECHANISM L.H. DRIVE VEHICLE
FRONT BEARING SPRING
CAB LOCKING DEVICE
CAB HYDRAULIC TILTING EQUIPMENT
AIR COMPESSOR OUTER LINE
DOUBAL CIRCUIT BRAKE SYSTEM (66)
EXHAUST BRAKE CONTROL
PNEUMATIC HORN
CONNECTING PARTS, LINE AND NIPPLE JOINT
CONNECTING PARTS, LINE AND NIPPLE JOINT
LINE AND NIPPLE JOINT
AIR DRYER LINE
AIR TANK FIXING
CONNECTING PARTS, LINE AND NIPPLE JOINT
CONNECTING PARTS, LINE AND NIPPLE JOINT
CONNECTING PARTS, LINE AND NIPPLE JOINT
SERVE BRAKE CONTROL DEVICE
PARKING BRAKE CONTROL DEVICE
BAROMETRIC PRESSURE SENSOR
VALVE
VALVE
HEADLAMPS
FOGLIGHTS
FLASHERS IN BUMPER
HIGH POSITION LIGHTS
SIDE-MARKER LIGHTS
TAILLIGHT BRACKET / GENERAL / F3000
TOOL BOX
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
DECORATIVE ASSEMBLY
PARKING WEDGE
CAB VEHICLE TYPE LETTERS
CAB DECORATIVE SIGNS AND REFLECTIVE SIGNS
AIR CLEANING DEVICE (WP10)
COOLER SYSTEM (F3000/WP10)
DUSTPROOF NET
EXPANSION BOX SYSTEM
EXHAUST PIPE AND MUFFLER F2000 / (WP10 ENGINE_4 2/6 4)
ENGINE SUSPENSION
FRONT AXLE DRIVE
FRONT AXLE HOUSING
PLANETARY GEAR REDUCER
DRIVE FRONT AXLE STEERING KNUCKLE
FRONT AXLE BRAKING
PROPELLER SHAFT
STR DOUBLE STAGE BRIDGE HOUSING
STR REAR AXLE DRIVE
STR TRANSAXLE WHEEL PLANETARY REDUCER I
STR DRIVE AXLE WHEEL PLANETARY REDUCER II
STR TRANSAXLE BRAKE I
STR TRANSAXLE BRAKE II
SUSPENSION
FRONT SUSPENSION
REAR SUSPENSION I
REAR SUSPENSION II
FRONT SHOCK ABSORBER (DC93259680110)
FRONT STABILIZER ASSY (DC93259680110)
REAR STABILIZER ASSY (DC93259680110)
WHEELING SYSTEM
STEERING COLUMN ADJUSTABLE
STEERING COLUMN ADJUSTABLE
HYDRAULIC DEVICE
CHASSIS APPLIANCES / COLD AREA
CHASSIS APPLIANCES / COLD AREA
CHASSIS APPLIANCES / COLD AREA
TRANSMISSION OPERATION (SHIFTING DEVECE)
PULL-TYPE DIAPHRAGM SPRING CLUTCH 430
PULL CLUTCH CONTROL DEVICE
SWITCH, RADIO AND CIGARETTE LIGHTER
SWITCH
COMMBINATION SWITCH
BRAKE SWITCH
DIAGNOSTIC INTERFACE DEVICE BOARD
COMBINATION GAUGE ASSY WITH FRAME
SWITCH, RADIO AND CIGARETTE LIGHTER
EXHAUST BRAKE SWITCH
NEAR SWITCH
ELECTRIC PANEL I
CENTER ELECTRIC PANEL II
ELECTRIC PANEL SCUTCHEON
PLUG
CENTRAL ELECTRICAL SYSTEM
SWITCH
WIRING
OTHER CABIN WIRING
RELAY, FUSE
ABS CONTROLLER
OTHER CABIN WIRING
RELAY, FUSE
OTHER CABIN WIRING
RELAY, FUSE
SWITCH
OTHER CABIN WIRING
RELAY, FUSE
CABIN WIRING
SWITCH
CAB INNER ELECTRONICAL DEVICE
REAR LIGHT
LOOMS ON CAB OUTER
PLUG KEY FOR ELECTRIC WINDOW LIFTER SWITCH
FLOODLIGHT
FLOODLIGHT ON REAR PANNEL
WIRING
CHASSIS ELECTRIC / NON-TRACTOR / F2000 / 6 4/3800/725 / COLD
CHASSIS ELECTRIC / NON-TRACTOR / F2000 / 6 4/3800/725 / COLD
CHASSIS ELECTRIC / NON-TRACTOR / F2000 / 6 4/3800/725 / COLD
CHASSIS ELECTRIC / NON-TRACTOR / F2000 / 6 4/3800/725 / COLD
CHASSIS ELECTRIC / NON-TRACTOR / F2000 / 6 4/3800/725 / COLD
CHASSIS ELECTRIC / NON-TRACTOR / F2000 / 6 4/3800/725 / COLD
CHASSIS ELECTRICAL / ADDITIONAL / K38 / WABCO 6ABS / COLD
MAIN BATTERY SWITCH
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Позиция на иллюстрации
Заводской номер детали
Название детали
1
199100680057
Болт
2
190003888457
Гайка самоблокировочная
3
DZ9118680049
Lateral stabilizer bar assembly
4
DZ9118680057
Hanging plate assembly
5
DZ9114680138
Bracket assembly
6
Q151B1240
Hex screw
7
199100680068
Подушка
8
Q40116
Шайба
9
190003888459
Гайка VМ16х1,5DIN980
10
189000680008
Bolt
11
Q40014
Small washer
12
190003888458
Гайка
13
Q151B1085
Hex head bolts-fine pitch
14
199000680006
Bearing clip
15
Q33410
Гайка ВМ10-8-МАN183-В1
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
