Каталог запасных частей к технике: Shaanxi Shacman F3000. A COMBINED WATER PIPE JOINT GRP100060211

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW DAF DongFeng FAW Foton HOWO Hyundai IVECO JAC Motors LGMG MAN Shaanxi SITRAK Studebaker Tata Volvo Автокомпонент Плюс БелАЗ Брянский Арсенал ГАЗ ЗИЛ КАЗ Камский автозавод КрАЗ Мадара МАЗ МЗКТ МоАЗ Нефтекамский автозавод Ставропольский Завод АвтоПрицепов ТАТРА Тонар УралАЗ ЧМЗАП

Модель Не выбрано DeLONG Е-3 (самосвал) (2008) DeLONG Е-3 (тягач) (2008) MAN-F2000 (SX3254JS384) (2008) Shacman F2000 (2013) Shacman F3000 (2013) Shacman SX3255DR385 (2011) Shacman SX3256DR384 (F3000) (2015) Shacman SX3256DT384 (2011) Shacman SX3258DR384—F2000 Shacman SX3316DR366 (F2000) (2011) Shacman SX3316DT366 (2011) Shacman SX3316DT426C Shacman SX3316HT406C Shacman SX4255DV385 (2011) Shacman SX4256NT324 Shacman SX42584V324 Shacman SX42584V384TL Shacman SX5256GJBMR364 (2018) Shacman SX5318GJBDT386TL SX-3255-DR 3804B 6х4

Схема > Не выбрано DIESEL WP10E32 SERIES EURO A COMBINED ENGINE BODY GRP100010599 A COMBINED ENGINE BODY GRP100010599 CAMSHAFT BUSHING NOZZLE GRP100010202 A COMBINED MARK GRP100010661 GEAR ROOM FOR TIME SETTING GRP100010632 A COMBINED END COVER GRP100010507 A COMBINED OIL-GAS SEPARATOR GRP100010634 A COMBINED OIL GAUGE STICK GRP100010664 A COMBINED FILLER PIPE GRP100010249 A COMBINED FLYWHEEL HOUSING GRP100010665 A COMBINED CRANKSHAFT GRP100020314 A COMBINED FLYWHEEL GRP100020357 A COMBINED PULLEY CRANKSHAFT GRP100020180 CONNECTOR AND PISTON GRP100030003 СYLINDER HEAD ASSEMBLY GRP100040163 CYLINDER HEAD COVER GRP100040074 A COMBINED VALVE TRAIN GRP100050029 A COMBINED OUTLET PIPE GRP100040211 A COMBINED THERMOSTAT GRP100040212 A COMBINED PUMP GRP100060571 A COMBINED WATER PIPE JOINT GRP100060211 A COMBINED FAN ANDWHEEL HUB GRP100060429 300PS A COMBINED FAN ANDWHEEL HUB GRP100060581 300PS A COMBINED TENSIONER AND BELT GRP100060577 A COMBINED OIL PUMP GRP100070096 A COMBINED OIL FILTER GRP100070036 A COMBINED SUMP STRAINER GRP100070035 OIL COOLER COVER GRP100070120 300PS OIL COOLER COVER GRP100070123 300PS A COMBINED INJECTOR FUEL INJECTION PIPE GR615081429 A COMBINED HIGH-PRESSURE FUEL PUMP A COMBINED FUEL FILTER GR615081485 A COMBINED LOW-PRESSURE-PIPE GRP100080461 SHUT-DOWN DEVICE GROUP GRP100080549 A COMBINED ALTERNATER GRP100090180 A COMBINED ALTERNATER PLANK GRP100090335 A COMBINED STARTER GRP100090200 FLAME PREHEATER GROUP GRP100090175 A COMBINED AIR INLET PIPE GRP100110723 A COMBINED EXHAUST PIPE GRP100110727 300PS A COMBINED EXHAUST PIPE GRP100110749 300PS A COMBINED TURBOCHARGER A COMBINED SHIM OIL PIPE GRP100110279 300PS A COMBINED SHIM OIL PIPE GRP100110751 300PS A COMBINED COMPRESSOR PIPELINE REAR EXHAUST GROUP INTER-COOLER GROUP AIR COMPRESSOR ASSEMBLY GRP100130262 A COMBINED HYDRAULIC PUMP GRP100130230 OIL PAN GR615150127 A COMBINED ENGINE SUPPORT GRP100540008 ENGINE BLOCK GROUP PRE-ASSEMBLED CYLINDER BLOCK TIMING GEAR HOUSING GROUP COVER GROUP OIL-GAS SEPARATOR GROUP DIPSTICK GROUP OIL DIPSTICK ASSEMBLY OIL TILLING TUBE GROUP FLYWHEEL HOUSING GROUP CRANKSHAFT GROUP CRANKSHAFT ASSEMBLY FLYWHEEL GROUP CRANKSHAFT PULLEY GROUP PISTON AND CONNECTING ROD GROUP CONNECTING ROD ASSEMBLY PISTON RING ASSEMBLY CYLINDER HEAD ASSEMBLY CYLINDER HEAD SUB ASSEMBLY CYLINDER COVER ASSEMBLY (01) CYLINDER COVER ASSEMBLY (02) VALVE TRAIN GROUP CAMSHAFT ASSEMBLY INTERMEDIATE GEAR ASSEMBLY EVB EXHAUST ROCKER ARM SET INTAKE VALVE ROCKER ARM ASSEMBLY WATER OUTLET PIPE GROUP (01) WATER OUTLET PIPE GROUP (02) WATER PUMP ASSEMBLY (01) WATER PUMP ASSEMBLY (02) TIGHTEN WHEEL AND BELT GROUP FAN AND HUB GROUP (01) FAN AND HUB GROUP (02) OIL PUMP ASSEMBLY OIL PUMP IDLE GEAR ASSEMBLY OIL FILTER GROUP OIL FILTER ASSEMBLY OIL SUCTION STRAINER GROUP OIL COOLER ASSEMBLY INJECTOR ASSEMBLY HIGH PRESSURE FUEL INJECTION PIPE GROUP HIGH PRESSURE PUMP ASSEMBLY HIGH PRESSURE PUMP ASSEMBLY FUEL FILTER GROUP FUEL FILTER LOW PRESSURE OIL PIPE GROUP GENERATOR GROUP GENERATOR BRACKET GROUP STARTER MOTOR GROUP FLAME PREHEATED GROUP FLAME PREHEATED EQUIPMENT GENERAL-USE WIRE AND SENSOR GROUP GENERAL-USE WIRE AND SENSOR GROUP INTAKE MANIFOLD GROUP AIR INLET PIPE ASSEMBLY EXHAUST MANIFOLD GROUP TURBOCHARGER ASSEMBLY TURBOCHARGER OIL PIPE GROUP PIPELINE GROUP AIR COMPRESSOR COMPRESSOR AIR COMPRESSOR ASSEMBLY HYDRAULIC PUMP GROUP OIL PAN OIL PAN ASSEMBLY ENGINE BRACKET GROUP PARTS KIT ASSEMBLY FUEL SYSTEM PROTECTOR PARTS KIT ASSEMBLY FUEL FILTER-WATER SEPARATOR WP10E32 ENGINE SUSPENSION ISM ENGINE SUSPENSION WD12 (8X4) ENGINE SUSPENSION AIR CLEANING DEVICE (F2000/UNIVERSAL) AIR CLEANING DEVICE AIR CLEANING DEVICE COOLER SYSTEM (F2000/WP10E32) RADIATO (F2000/WP10E32) PREVENTING CIRCUMFLUENCE SYSTEM RADIATOR PROTECTOR SYSTEM COOLER SYSTEM (F2000/WD12) EXPANSION BOX SYSTEM F2000 UNDER POLE COOLER SYSTEM (F2000) WIND RETAINING RING SYSTEM DUSTPR00F NET EXHAUSTING AND MUFFLER DC93259540210 (WP10) EXHAUSTING AND MUFFLER F2000 (WD12) EXHAUSTING AND MUFFLER F2000 (ISM 6X4) EXHAUSTING AND MUFFLER (WP10 6X2) ALUMINUM ALLOY FUEL TANK ASSEMBLY 400L FUEL TANK AND OIL LINE 380L FUEL TANK ASSEMBLY 380L FUEL RADIATOR SYSTEM FUEL TANK ASSEMBLY (EGR) ACCELEROGRAPH CONTROL DEVICE ACCELEROGRAPH CONTROL DEVICE (ISM) Ф430 PUSH DIAPHRAGM CLUTCH Ф430 PULL DIAPHRAGM CLUTCH PUSH CLUTCH CONTROL DEVICE PULL CLUTCH CONTROL DEVICE 9JS135T-B CLUTCH AND GEARBOX HOUSING ASSEMBLY 9JS135T-B SECOND SHAFT ASSEMBLY 9JS135T-B COUNTERSHAFT ASSEMBLY 9JS135T-THE FIRST SHAFT ASSEMBLY 9JS135T-B THE REVERSE GEAR SHAFT ASSEMBLY 9JS135T-B THE TRANSMISSION COVER ASSEMBLY 9JS135T-B THE SHIFT CONTROL DEVICE ASSEMBLY 9JS135T-B AIR FILTER REGULATOR ASSEMBLY 9JS135T-B AUXILIARY BOX DRIVE GEAR ASSEMBLY 9JS135T-B AUXILIARY BOX MAIN SHAFT ASSEMBLY 9JS135T-B AUXILIARY BOX MIDDLE SHAFT ASSEMBLY 9JS135T-B REAR COVER ASSEMBLY 9JS135T-B AUXILIARY BOX CYLINDER ASSEMBLY 9JS135T-B COUNTERSHAFT BRAKE ASSEMBLY CLUTCH HOUSING AND TRANSMISSION HOUSING ASSEMBLY (FAST 12JS180TA) THE TWO-AXIS ASSEMBLY (FAST 12JS180TA) ONE-AXIS ASSEMBLY (FAST 12JS180TA) THE MIDDLE SHAFT OF THE MAIN BOX (FAST 12JS180TA) REVERSE GEAR SHAFT ASSEMBLY (FAST 12JS180TA) AUXILIARY BOX DRIVE GEAR (FAST 12JS180TA) AUXILIARY BOX INTERMEDIATE SHAFT (FAST 12JS180TA) OUTPUT SHAFT ASSEMBLY (FAST 12JS180TA) BACK COVER HOUSING ASSEMBLY (FAST 12JS180TA) RANGE GEAR CYLINDER (FAST 12JS180TA) UPPER COVER ASSEMBLY (FAST 12JS180TA) H VALVE HOUSING ASSEMBLY (FAST 12JS180TA) RANGE GEAR AIR VALVE, AIR FILTER PRESSURE REGULATOR, ODOMETER BUSHING (FAST 12JS180TA) POWER TAKE-OFF DEVICE QH50 (G16796) POWER TAKE-OFF DEVICE QH70 (G16796) SHIFTING DEVECE SHIFTING DEVECE SHIFTING DEVECE417036 GEAR BOX SUPPORT GEAR BOX SUPPORT GEAR BOX SUPPORT (F2000/940-762 FRAME) 200T GEAR BOX SUPPORT F2000 TRANSMISSION SHAFT PROPELLER SHAFT SYSTEM F2000 STEERING SHAFT STEYR 6.5 TON STEERING SHAFT BRAKE MAN 7.5 TON DRUM STEERING SHAFT MAN 9.5 TON STEERING SHAFT MAN 9.5 TON STEERING SHAFT MAN 9.5 TON STEERING SHAFT STR TWO-STAGE BRIDGE SHELL STR MIDDLE BRIDGE DRIVE DEVICE I STR MIDDLE AXLE DRIVE DEVICE II STR MIDDLE AXLE DRIVE DEVICE III STR REAR AXLE DRIVE DEVICE STR DRIVE AXLE WHEEL SIDE PLANETARY REDUCER I STR DRIVE AXLE WHEEL SIDE PLANETARY REDUCER II STR DRIVE AXLE BRAKE I STR DRIVE AXLE BRAKE II HD469 SINGLE-STAGE BRIDGE MIDDLE BRIDGE BRIDGE SHELL HD469 SINGLE-STAGE BRIDGE REAR AXLE BRIDGE SHELL HD469 SINGLE-STAGE BRIDGE MIDDLE BRIDGE MIDDLE SECTION HD469 SINGLE-STAGE DECELERATION DRIVE AXLE, MIDDLE SECTION OF REAR AXLE HD469 SINGLE-STAGE BRIDGE WHEEL EDGE MAN (1860) HOUSING MIDDLE AXLE MAN TWO-STAGE DECELERATION DRIVE AXLE REAR AXLE SHELL (1860) MAN TWO-STAGE DECELERATION DRIVE MIDDLE AXLE MIDDLE SECTION MAN TWO-STAGE DECELERATION DRIVE MIDDLE AXLE MIDDLE SECTION MAN TWO-STAGE DECELERATION DRIVE IN THE MIDDLE OF THE REAR AXLE MAN TWO-STAGE DECELERATION DRIVE AXLE WHEEL SIDE DUAL-CIRCUIT BRAKE SYSTEM (84) TRUCK DUAL-CIRCUIT BRAKE SYSTEM II FOR TRACTOR 6X4 SERVE BRAKE CONTROL DEVICE PARKING BRAKE CONTROL DEVICE PARKING BRAKE CONTROL DEVICE EXHAUST BRAKE CONTROL PNEUMATIC HORN CONNECTING PARTS,LINE & NIPPLE JOINT CONNECTING PARTS,LINE & NIPPLE JOINT LINE AND NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT CONNECTING PARTS, LINE & NIPPLE JOINT RELAY VALVE DIAPHRAGM BRAKE CHAMBER AUX.BRAKE CHAMBER CONTROL VALVE, TRAILER BRAKE GENERAL BRAKE VALVE SUPPORT FOR BRAKE AIR DRYER LINE AIR TANK FIXING RELAY VALVE FIXING (I) SCHEMATIC DIAGRAM OF AIR PIPELINE AIR DRYER LINE AIR TANK FIXING AIR TANK FIXING (I) AIR TANK FIXING (II) AIR TANK FIXING (II) AIR TANK FIXING (I) AIR TANK FIXING (I) AIR TANK FIXING (I) AIR TANK FIXING (II) AIR TANK FIXING (I) AIR TANK FIXING AIR TANK FIXING (I) AIR TANK FIXING (II) AIR TANK FIXING (II) RELAY VALVE FIXING (I) AIR COMPESSOR OUTER LINE FRAME ASSY FRAME ASSY FRAME ASSY FRAME ASSEMBLY (REINFORCED FRONT END) FRAME ASSEMBLY (4.6M SINGLE BRIDGE) FRAME ASSISTANT CROSS MEMBER FRAME ASSISTANT CROSS MEMBER FRAME FOREPART ACCESSORY FRAME FOREPART ACCESSORY DRAW GEAR SEMI TRAILING BASE CHASSIS ELECTRICAL APPLIANCES/WPE32/F2000/DUMP TRUCK/WPE32/F3000/(NEW/42/64) TRACTOR CHASSIS ELECTRICAL APPLIANCES/WPE32/F2000/DUMP TRUCK CHASSIS ELECTRICAL APPLIANCES/WPE32/F3000/(NEW/42/64) TRACTOR CHASSIS ELECTRICAL APPLIANCES/WPE32/F3000/(NEW/42/64) TRACTOR CHASSIS ELECTRICAL APPLIANCES/TRACTOR/F2000/64/2925/725/MAN FRAME CHASSIS ELECTRICAL APPLIANCES/TRACTOR/F2000/64/2925/725/MAN FRAME CHASSIS ELECTRICAL APPLIANCES/TRACTOR/F2000/64/2925/725/MAN FRAME CHASSIS ELECTRICAL APPLIANCES/TRACTOR/F2000/64/2925/725/MAN FRAME CHASSIS ELECTRICAL APPLIANCES/TRACTOR/F2000/64/2925/725/MAN FRAME WORKING LAMP CHASSIS ELECTRICAL APPLIANCES/ACCESSORIES/MACHINERY LANQING II GENERATION DUMP TRUCK CHASSIS ELECTRICAL APPLIANCES/ACCESSORIES/SOLENOID VALVE DUMP TRUCK TAILLIGHT BRACKET/UNIVERSAL/F2000 TAILLIGHT BRACKET/TRACTOR/F2000 CHASSIS ELECTRICAL/NON-TRACTION/CHASSIS WIRING HARNESS CHASSIS ELECTRICAL/NON-TRACTION/DISTRIBUTION BOX CHASSIS ELECTRICAL APPLIANCES/NON-TRACTION/ACCESSORIES CHASSIS ELECTRICAL APPLIANCES/ACCESSORIES/SOLENOID VALVES BATTERY BOX BATTERY BOX MOUNTING BATTERY BOX BATTERY BOX MAIN BATTERY SWITCH DASHBOARD (10 INTERIOR) DASHBOARD HAND GRIPER SWITCH, RADIO AND CIGARETTE LIGHTER SWITCH SWITCH CAB APPLIANCES/ACCESSORIES/DUMP TRUCK/LIFT BUZZER ROCKER SWITCH SWITCH CAB INNER ELECTRONICAL DEVICE PUMP FLOODLIGHT FLOODLIGHT ON REAR PANNEL WIRING LOOMS ON CAB OUTER WIRING WIRING WIRING CABIN WIRING ASSEMBLY WINDOW LIFTER WIRING WIRING HARNESS PLUG KEY FOR ELECTRIC WINDOW LIFTER SWITCH ELECTRIC GLASS LIFTER ROCKER SWITCH CENTRAL ELECTRICAL DEVICE BOARD CENTER ELECTRIC PANEL II PUSH KEY FOR ELECTRIC WINDOW LIFTER (FOR SELECT) ABS/ASR HEADLAMPS HEADLAMP GUARD GRILLE FLASHERS IN BUMPER SIDE-MARKER LIGHTS HIGH POSITION LIGHTS COMBINATION REAR LIGHT REAR LIGHT AIR PRESSURE SENSOR RADIO LOUDHAILER TRANSFORMER WIRE BRAKE SWITCH ELECTRIC PANEL I ELECTRIC PANEL I ELECTRIC PANEL I CENTER ELECTRIC PANEL II ELECTRIC PANEL SCUTCHEON COMMBINATION SWITCH EXHAUST BRAKE SWITCH INSTRUMENT CLUSTER CAB APPLIANCES/ACCESSORIES/DUMP TRUCK/LIFT BUZZER CAB APPLIANCES/ACCESSORIES/DUMP TRUCK/LIFT BUZZER AIR SYSTEM AIR SYSTEM AIR INTAKE BOX ON CAB AIR DUCT HEATER DEVICE (WITH AIR CONDITION) AIR CONDITION PIPES AIR CONDITION PIPES TEMPERATURE SENSOR AIR CONDITION CONTROLLER ELECTRONIC CONTROL UNITS FOR AIR CONDITIONING DOOR AND WINDOW CONTROL UNIT STEERING COLUMN ADJUSTABLE STEERING HYDRAULIC DEVICE DOUBLE SHAFTS STEERING HYDRAULIC DEVICE HYDRAULIC DEVICE STEERING TRANSMISSION DEVICE STEERING TRANSMISSION DEVICE STEERING TRANSMISSION DEVICE DOUBLE SHAFTS STEERING TRANSMISSION DEVICE FRONT SUSPENSION FRONT SUSPENSION (DC93319690501) DUMP TRUCK 8X4 FRONT SHOCK ABSORBER (DC93259680300) FRONT STABILIZER ASSY FRONT STABILIZER BAR (DC93259680300) TRACTOR REAR SUSPENSION I REAR SUSPENSION II TRACTOR REAR SUSPENSION 6X4 TRACTOR BALANCING SHAFT ASSEMBLY 6X4 REAR SHOCK ABSORBER 6X4 TRACTOR REAR TRANSVERSE STABILIZER 6X4 ENGINNERING VEHICLE REAR SUSPENSION 6X4, 8X4 ENGINNERING VEHICLE BALANCING SHAFT ASSEMBLY 6X4, 8X4 EQUALIZING SUSPENSION LIMIT STOP 6X4, 8X4 ENGINNERING VEHICLE REAR TRANSVERSE STABLIZER 6X4, 8X4 REAR SUSPENSION 4X2 REAR SUSPENSION (DC95189520507) REAR STABLIZER 4X2 REAR SHOCK ABSORBER 4X2 F2000D HALF HIGH ROOF CAB WELDING ASSY F2000N CAB WELDING ASSY F2000J CAB WELDING ASSY F2000 HIGH ROOF CAB AIR DEFLECTOR MELT-ON FOIL MELT-ON FOIL SOUND PROOFING SOUND PROOFING FLOOR MATS FRONT AND ANTI-SKID STRIP DASHBOARD PANELLING ENGINE COWLING INSULATION HEADLINING WITH MOUNTING AND GRAB HANDLE HEADLINING WITH MOUNTING AND GRAB HANDLE SIDE-WALL PANELING CLOSED WITH NOUNTING I SIDE-WALL PANELING CLOSED WITH NOUNTING I F3000J SIDE-WALL PANELING CLOSED WITH NOUNTING I LUGGAGE RACK LUGGAGE RACK LOWER BERTH UPPER BERTH SEAT SAFETY BELT TOOL BOX SUN VISOR ROLLER SUN VISOR AIL-ROUND CURTAIN TRANSVERSE CURTAIN DOOR WINDOW LIFTER LEFT OPERATED DOOR WINDOW LIFTER RIGHT OPERATED DOOR AND DOOR GLASS DOOR AND DOOR GLASS DOOR COVERING LEFT DOOR COVERING RIGHT DOOR HINGE LEFT AND RIGHT DOOR ARRESTOR AND DOOR ACTUATING SYSTEM LEFT DOOR ARRESTOR AND DOOR ACUATING SYSTEM RIGHT ROOF VENT FRONT WINDSHIELD GLASS ASSEMBLY BUMPER AND FRONT BRACKET BUMPER AND FRONT BRACKET LEFT/RIGHT FENDER BRACKET FENDER LEFT BEHIND CAB FENDER RIGHT BEHIND CAB LEFT FENDER RIGHT FENDER LEFT FOOT PANEL BRACKET RIGHT FOOT PANEL BRACKET LEFT DOOR STEP RIGHT DOOR STEP LEFT DOOR STEP RIGHT DOOR STEP GRILLE COVERS WIPER SYSTEM WINDSCREEN WASHER PUMP AND ACCESSORIES NOISE INSULATION CAB DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY DECORATIVE ASSEMBLY REARVIEW MIRROR REARVIEW MIRROR LEFT BRACKET REARVIEW MIRROR RIGHT BRACKET VIEW MIRROR UNDER THE DOOR CAB DECORATION SIGNS AND REFLECTIVE SIGNS SUN VISOR (F3000) FRONT COVER (F3000) REARVIEW MIRROR RIGHT BRACKET (F3000) CAB TILTING MECHANISM LH. DRIVE VEHICLE CAB TILTING MECHANISM R.H. DRIVE VEHICLE CAB HYDRAULIC TILTING EQUIPMENT SPRING CAB LOCKING DEVICE WITH THE LATHER OPERATOR APPARATUS

1

2

3

4

5

6

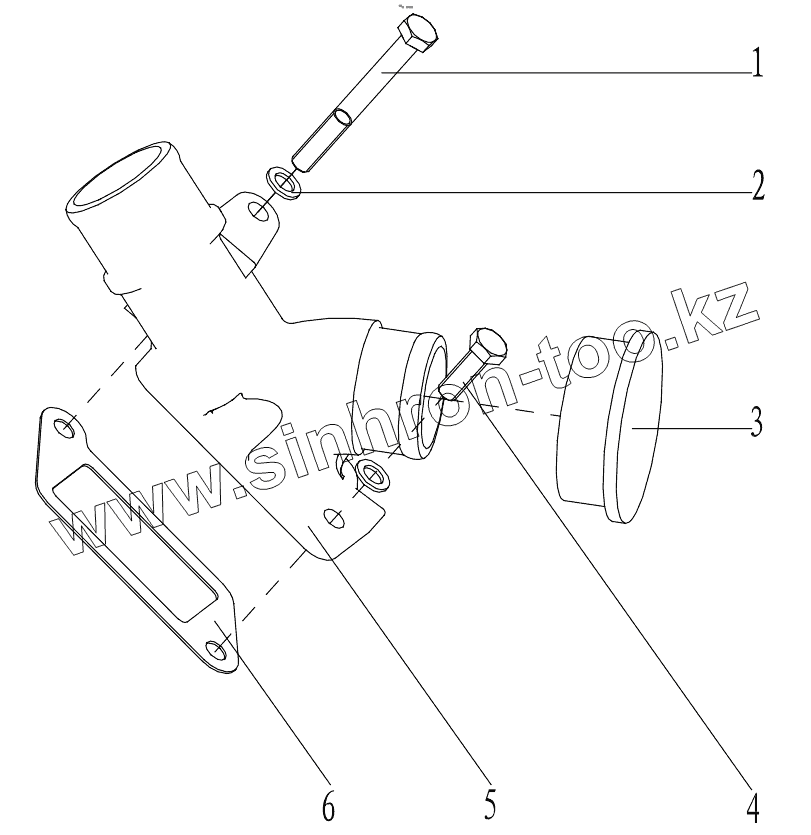

Позиция на иллюстрации	Заводской номер детали		Название детали
1	90003800467		Болт М8х75 DIN931
2	90003932023		Шайба пружинная В8 D00137
3	612600060499		Cover
4	90003802424		Болт М8х25 D00933
5	61560060022A		Патрубок соединительный
6	614060024		Прокладка

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
