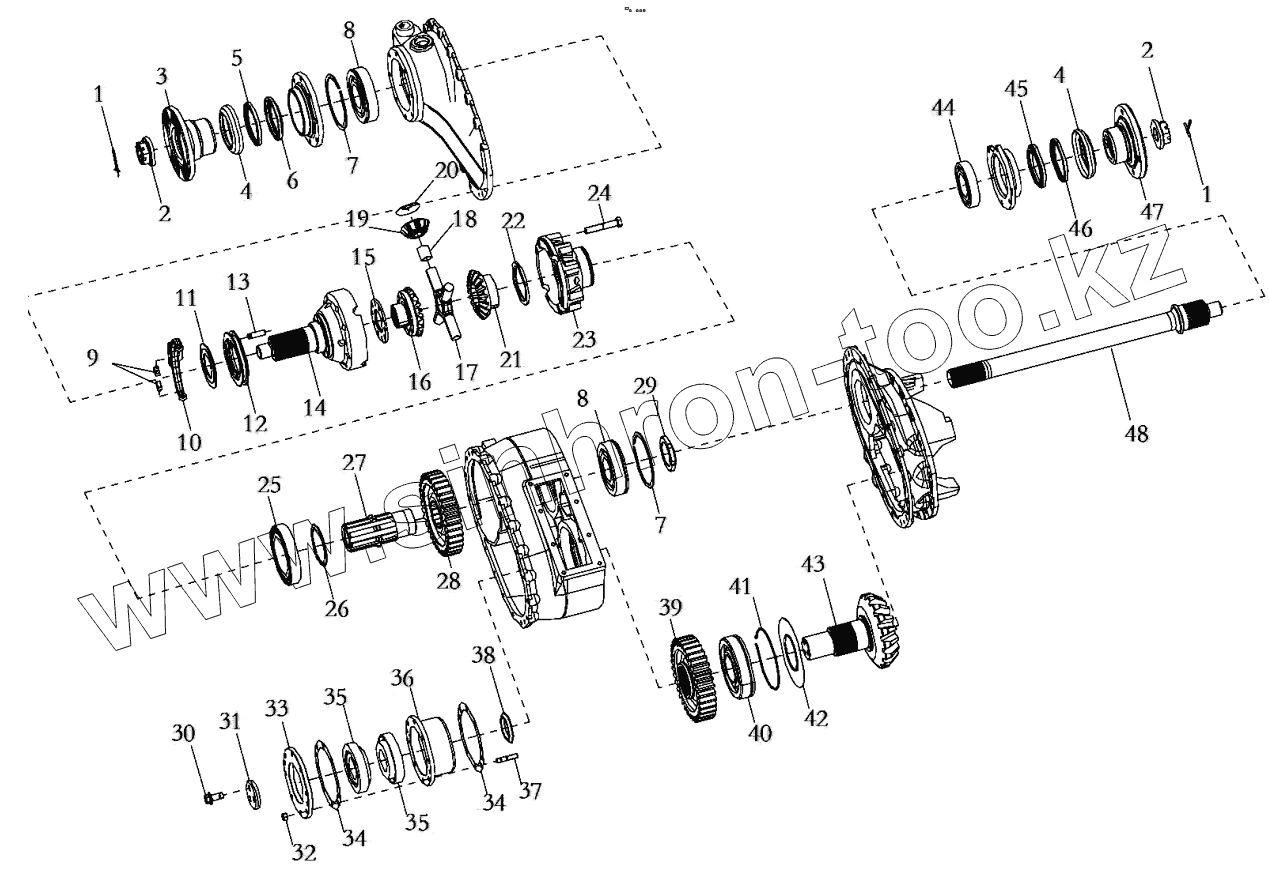

Каталог запасных частей к технике: Shaanxi Shacman F2000. STR MIDDLE AXLE DRIVE DEVICE II

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
16
17
18
19
20
20
20
20
21
22
22
22
22
22
23
24
25
26
27
28
28
28
29
30
31
32
33
34
34
34
34
34
34
34
34
35
35
36
37
38
39
39
39
40
41
42
43
43
44
45
46
47
48
Позиция на иллюстрации Заводской номер детали Название детали
16 DZ9114320137 Axle shaft gear
17 199014320091 Cross axle
18 DZ9112320712 Planet gear bush
19 DZ9112320711 Planet gear
20 199012320150 Planet gear washer
20 DZ9112320250 Planet gear washer
21 199014320059 Axle shaft gear
22 199014320071 Axle shaft gear washer
22 199014320072 Axle shaft gear washer
22 199014320073 Axle shaft gear washer
22 199014320074 Axle shaft gear washer
22 199014320210 Axle shaft gear washer
23 199014320130 Differential case
24 190003803712 Hex bolt
25 190003310239 Annular ball bearing
26 190003933580 Circlip for axle
27 199014320135 Hollowness axle
28 199014320136 Active spur gear
28 199014320209 Active spur gear
28 199114320002 Active spur gear
29 199012250031 Circle nut
30 Q1801430TF2 Hex bolt
31 178000320088 Bearing ring
32 190003888452 Hex nut
33 199014320128 Bearing external ring
34 199014320131 Adjusting washer
34 199014320132 Adjusting washer
34 199014320133 Adjusting washer
34 199014320134 Adjusting washer
35 190003326333 Row-steep roller bearing
36 199014320129 Bearing seat
37 190003813543 Stud
38 199014320140 Caulking ring
39 DZ9114320651 Passive spur gear
39 DZ9114320646 Passive spur gear
39 DZ9114320639 Passive spur gear
40 199014320257 Roller bear
41 199014320256 Steel wire collar
42 199014320174 Oil baffle
43 DZ9114320636 Active bevel gear
43 DZ9114320640 Active bevel gear
44 DZ9114320016 Gear
45 DZ9114320902 Axle packing ring
46 190003078772 Axle packing ring
47 DZ9114320654 Flange
48 DZ9114320138 Piercing axle
