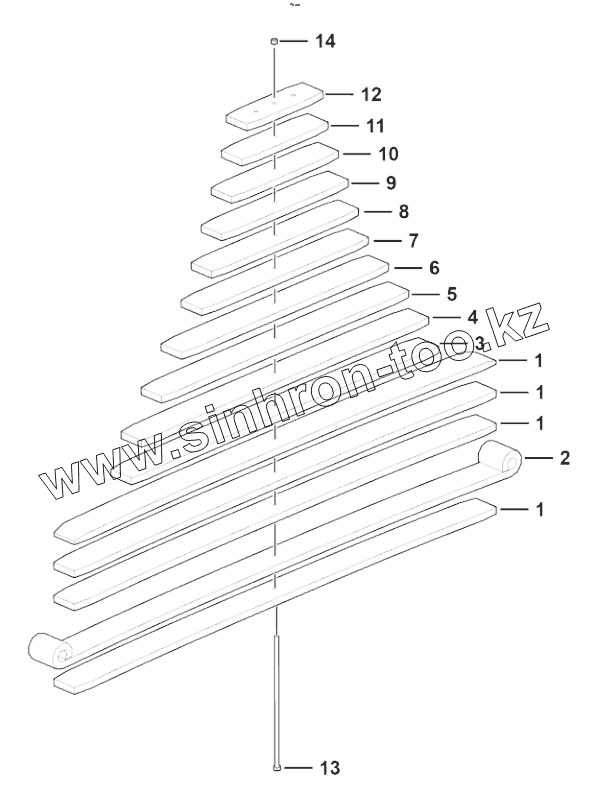

Каталог запасных частей к технике: LGMG MT86H. Rear the spring assembly
1
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4110001981001 | Rear the spring assembly | |
| 2 | 4110001981002 | Second plate of rear leaf spring | |
| 3 | 4110001211006 | The sixth piece of the rear leaf spring | |
| 4 | 4110001211007 | The seventh piece of the rear leaf spring | |
| 5 | 4110001211008 | The eighth piece of the rear leaf spring | |
| 6 | 4110001211009 | The ninth piece of the rear leaf spring | |
| 7 | 4110001211010 | The tenth piece of the rear leaf spring | |
| 8 | 4110001211011 | The eleventh piece of the rear leaf spring | |
| 9 | 4110001211012 | The twelfth plate of the rear leaf spring | |
| 10 | 4110001211013 | The thirteenth piece of the rear leaf spring | |
| 11 | 4110001211014 | The fourteenth piece of the rear leaf spring | |
| 12 | 4110001211015 | The fifteenth plate of the rear leaf spring | |
| 13 | 4110001211016 | Central bolt | |
| 14 | 4110000730014 | Centre nut |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
