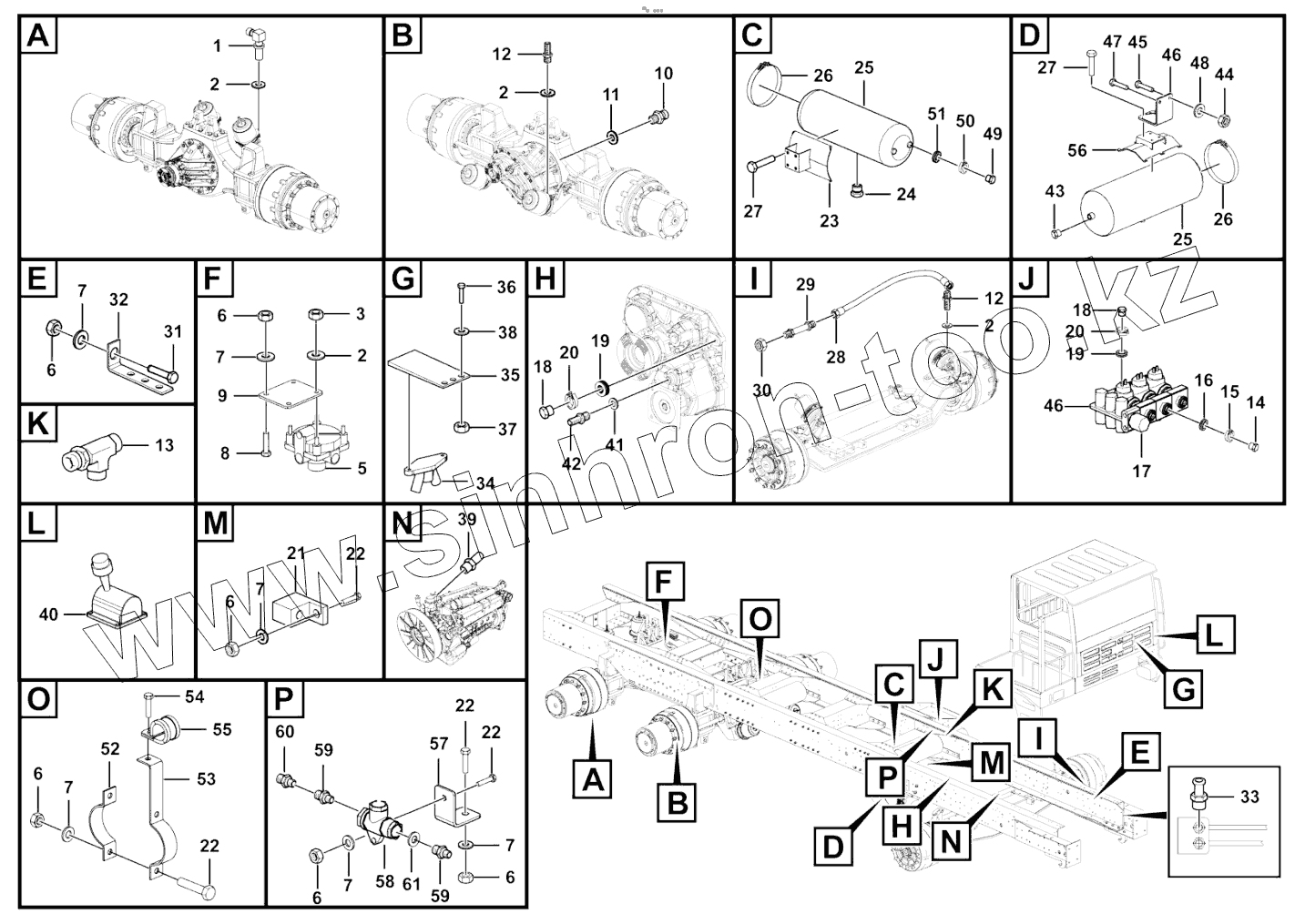

Каталог запасных частей к технике: LGMG MT86H. Parking brake assembly
1
2
2
2
2
3
5
6
6
6
6
6
6
7
7
7
7
7
7
8
9
10
11
12
12
13
14
15
16
17
18
18
19
19
20
20
21
22
22
22
22
23
24
25
25
26
26
27
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
46
47
48
49
50
51
52
53
54
55
56
57
58
59
59
60
61
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 27100100641 | M16-m18 rectangular connector | |
| 2 | 4015000141 | Washer jb982-16 | |
| 3 | 4013000033 | Nut gb6170-m8epzn-8 | |
| 4 | 4015000072 | Washer gb97.1-8epzn-300hv | |
| 5 | 4120001087 | Valve | |
| 6 | 4013000007 | Nut gb6170-m10epzn-8 | |
| 7 | 4015000162 | Washer gb97.1-10epzn-300hv | |
| 8 | 4011000048 | Bolt gb5782-m10x50epzn-8.8 | |
| 9 | 27100106811 | Plate | |
| 10 | 27110101331 | Joint m12-m12 | |
| 11 | 4015000327 | Washer jb982-12 | |
| 12 | 27100100661 | Direct connector m16-m18 | |
| 13 | 27110101341 | T-connector m14-m12-m14 | |
| 14 | 4120000213 | Nut seat ng6 | |
| 15 | 4120000212 | Snap ring ng6 | |
| 16 | 4120000211 | Elastic element ng6 | |
| 17 | 4120001139 | Solenoid valve | |
| 18 | 4120000194 | Nut seat ng8 | |
| 19 | 4120000197 | Elastic element ng8 | |
| 20 | 4120000196 | Snap ring ng8 | |
| 21 | 27110101381 | Pressure switch block | |
| 22 | 4011000514 | Bolt gb5783-m10x45epzn-8.8 | |
| 23 | 27110101851 | 30l frame | |
| 24 | 4120000200 | Disembogue valve | |
| 25 | 4120000143 | 30l(246)air reservoir | |
| 26 | 4120000177 | Clam246-250 | |
| 27 | 4011000084 | Bolt gb5783-m10x30epzn-8.8 | |
| 28 | 27100107441 | Air pipe gpu-13-i-880-sg | |
| 29 | 4120000257 | Lengthen through the next joint l12 | |
| 30 | 4120000230 | Nut m18x1.5 | |
| 31 | 4011000184 | Bolt gb5783-m10x40epzn-8.8 | |
| 32 | 27100103561 | Bracket 1 | |
| 33 | 27110101371 | Connector | |
| 34 | 4120001046 | Valve | |
| 35 | 27110101572 | Foot pedal | |
| 36 | 4011010146 | Bolt gb5783-m4x25epzn-8.8 | |
| 37 | 4013000025 | Nut gb6710-m4epzn-8 | |
| 38 | 4015000135 | Washer gb97.1-4epzn-300hv | |
| 39 | 27110101891 | Reducing joint | |
| 40 | 4120000134 | Hand brake valve | |
| 41 | 4015000140 | Washer jb982-10 | |
| 42 | 27100102051 | M10-m12 joint | |
| 43 | 4120000201 | Stuff ng12-m22x1.5 | |
| 44 | 4013000016 | Nut gb6170-m16epzn-8 | |
| 45 | 4011000594 | Bolt gb5783-m16x60epzn-8.8 | |
| 46 | 27110102612 | Air reservoir fixed bracket assembly | |
| 47 | 4011000269 | Bolt gb5783-m16x50epzn-8.8 | |
| 48 | 4015000181 | Washer gb97.1-16epzn-300hv | |
| 49 | 4120000190 | Nut seat ng12 | |
| 50 | 4120000192 | Snap ring ng12 | |
| 51 | 4120000193 | Elastic element ng12 | |
| 52 | 27100108931 | Support | |
| 53 | 27100108201 | Bracket 2 | |
| 54 | 4011000082 | Bolt gb5783-m10x25epzn-8.8 | |
| 55 | 27110102381 | Clamp | |
| 56 | 27110102721 | Bracket of reservior | |
| 57 | 27110101981 | Two-way check valve bracket | |
| 58 | 4120000361 | Two way check valve | |
| 59 | 27100104611 | Joint m22-m12 | |
| 60 | 27110101971 | Adapter m22-ng6 | |
| 61 | 4015000092 | Washer jb982-22 |
