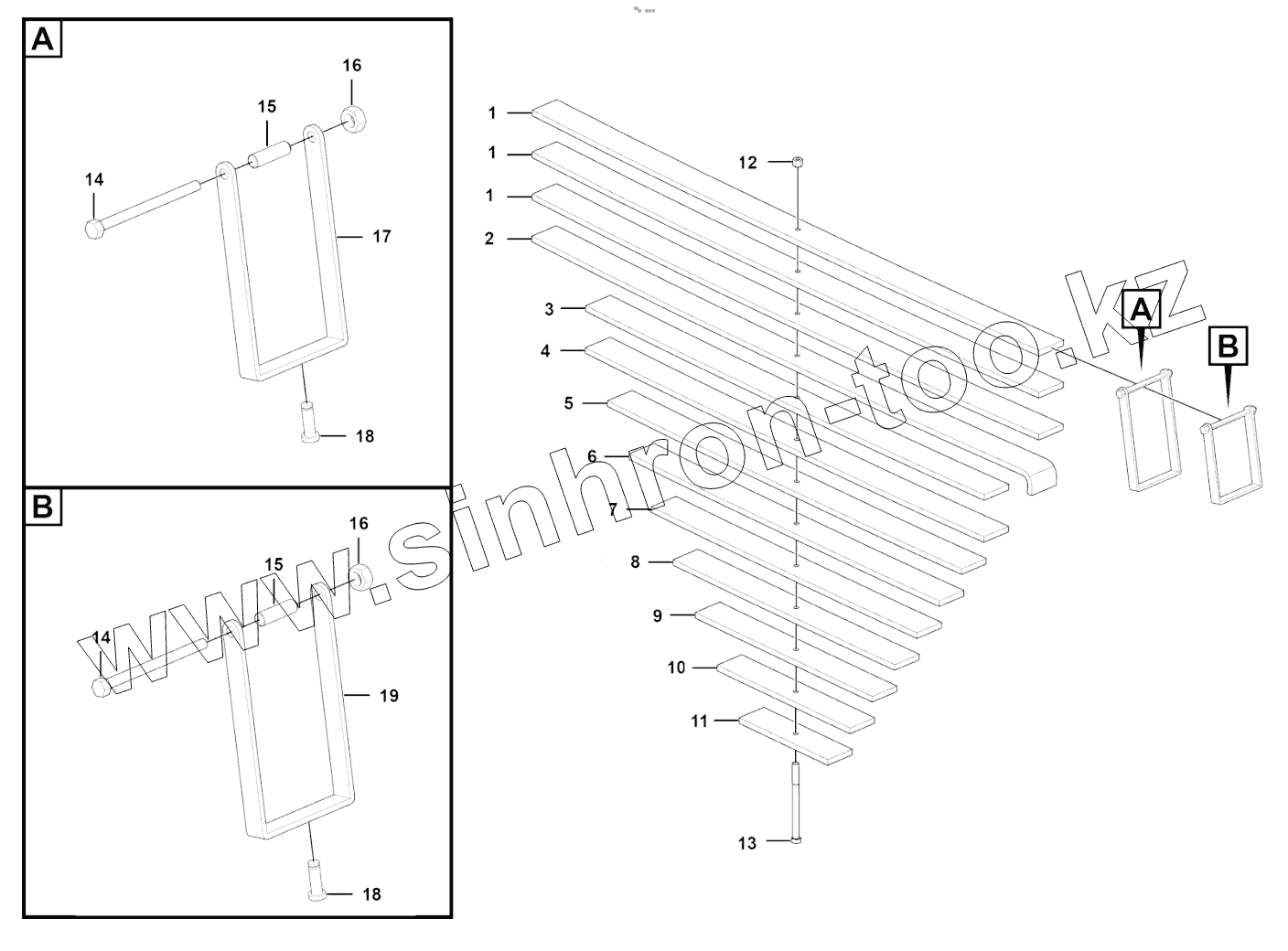

Каталог запасных частей к технике: LGMG MT86H. Front the spring assembly
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
16
16
17
18
18
19
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4110001447001 | The first piece of front leaf spring | |
| 2 | 4110000730004 | The fourth piece of the front leaf spring | |
| 3 | 4110000730005 | The fifth piece of the front leaf spring | |
| 4 | 4110702278006 | The sixth piece of front leaf spring | |
| 5 | 4110702278007 | The seventh piece of front leaf spring | |
| 6 | 4110702278008 | The eighth piece of front leaf spring | |
| 7 | 4110702278009 | The ninth piece of front leaf spring | |
| 8 | 4110702278010 | The tenth piece of front leaf spring | |
| 9 | 4110702278011 | The eleven piece of front leaf spring | |
| 10 | 4110702278012 | The twelve piece of front leaf spring | |
| 11 | 4110702278013 | The thirteen piece of front leaf spring | |
| 12 | 4110000730014 | Centre nut | |
| 13 | 4110001205014 | Centre bolt | |
| 14 | 4110702278016 | Bolt | |
| 15 | 4110702278017 | Clip pipe | |
| 16 | 4110702278018 | Self-locking nut | |
| 17 | 4110702278019 | Big clamp | |
| 18 | 4110702278020 | Rivet | |
| 19 | 4110702278021 | Small clamp |
