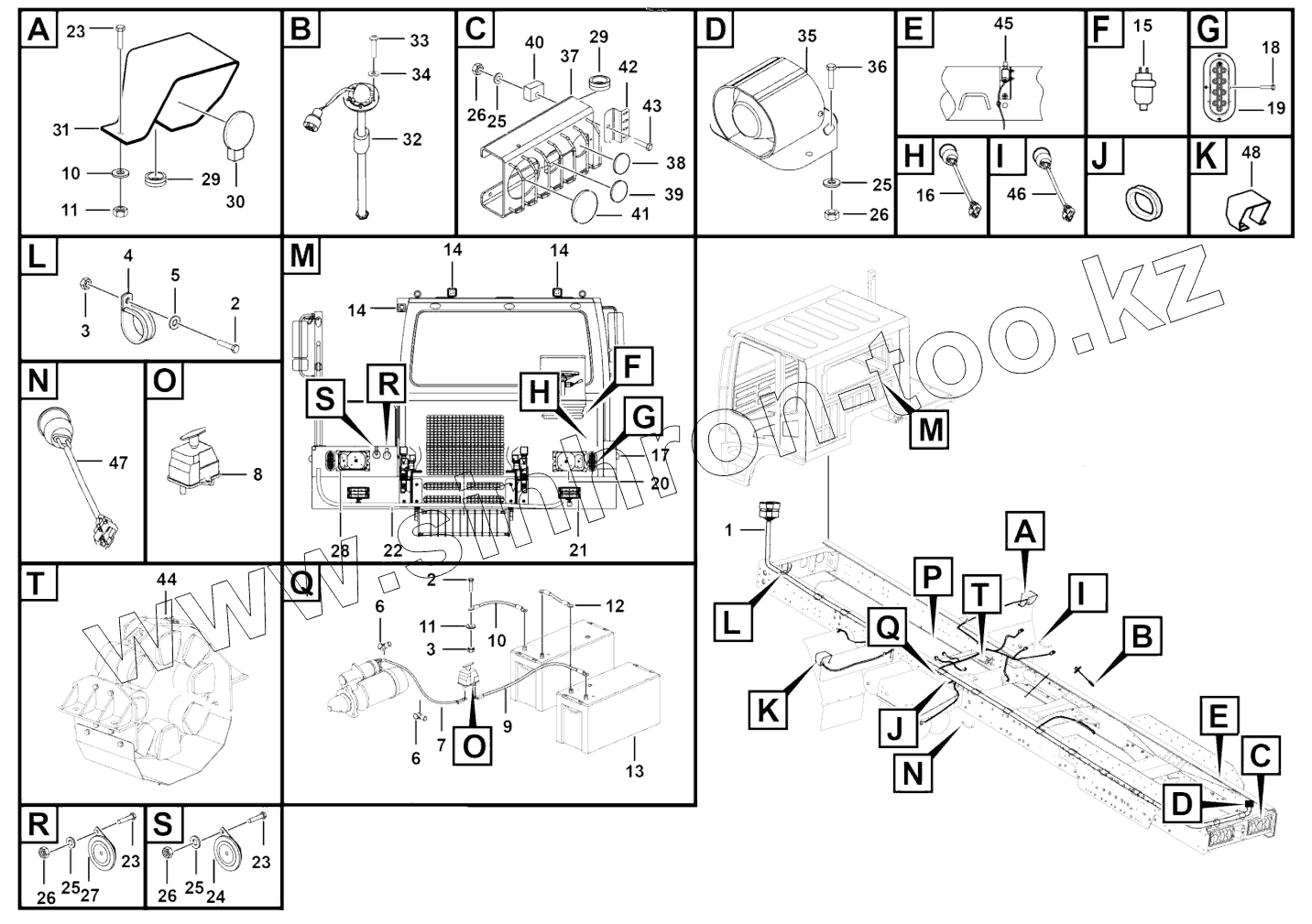

Каталог запасных частей к технике: LGMG MT86H. Chassis electrical system
1
2
2
3
3
4
5
6
6
7
8
9
10
10
11
11
12
13
14
14
14
15
16
17
18
19
20
21
22
23
23
23
24
25
25
25
25
26
26
26
26
27
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 27200107492 | Wire | |
| 2 | 4011000085 | Bolt gb5783-m10x35epzn-8.8 | |
| 3 | 4013000007 | Nut gb6170-m10epzn-8 | |
| 4 | 26370001941 | Clamp | |
| 5 | 4015000162 | Washer gb97.1-10epzn-300hv | |
| 6 | 26370002451 | Cable sleeve | |
| 7 | 27200107751 | Wire | |
| 8 | 4130000257 | Battery switch jk862j | |
| 9 | 27200105171 | Wire | |
| 10 | 27200105181 | Wire | |
| 11 | 4015000195 | Washer gb861.1-10epzn-65mn | |
| 12 | 27200105191 | Wire | |
| 13 | 4130000582 | Accumulator 6-qw-180mf | |
| 14 | 4130000576 | Rear work lamp 1ga 996.506 -52 | |
| 15 | 4130000012 | Atmospheric pressure sensor | |
| 16 | 4130000492 | Brake lamp switch yk209kla | |
| 17 | 4130000343 | Side steering lamp 43-3001a | |
| 18 | 4011010372 | Bolt gb16674-m5x16epzn-8.8 | |
| 19 | 4130000252 | Led front steering lamp | |
| 20 | 4130000249 | Headlamp(left) | |
| 21 | 4130000664 | Front fog lamp | |
| 22 | 27200105381 | Front fog lamp wire | |
| 23 | 4011000106 | Bolt gb5783-m8x25epzn-8.8 | |
| 24 | 4130000906 | Single-tone basin type horn (bass) | |
| 25 | 4015000072 | Washer gb97.1-8epzn-300hv | |
| 26 | 4013000033 | Nut gb6170-m8epzn-8 | |
| 27 | 4130000907 | Single-tone basin type horn (treble) | |
| 28 | 4130000250 | Headlamp(right) | |
| 29 | 27140105031 | Guard | |
| 30 | 4130000659 | Led work lamp sm6052 | |
| 31 | 27200102321 | Right lamp guard | |
| 32 | 4130000616 | Oil transducer of sigle 104740001 | |
| 33 | 4014000023 | Screw | |
| 34 | 4015000110 | Washer gb97.1-5epzn-300hv | |
| 35 | 4130000294 | Backup buzzer ddb101-lg | |
| 36 | 4011000195 | Bolt gb5783-m8x35epzn-8.8 | |
| 37 | 27200106981 | Frame | |
| 38 | 4130000908 | Turn signal lamp | |
| 39 | 4130000909 | Indicator lamp | |
| 40 | 27200104361 | Rubber insert | |
| 41 | 4130000610 | Led work lamp sm6272 | |
| 42 | 27200106741 | Ket frame | |
| 43 | 4011000107 | Bolt gb5783-m8x30epzn-8.8 | |
| 44 | 27370102401 | System | |
| 45 | 4130000641 | Cargo tank lifting switch xjk-010-09 | |
| 46 | 4130000006 | Air pressure switch yk-m12x1.5-0.55mpa-b | |
| 47 | 4130000007 | Air pressure switch yk-m10x1-0.3mpa-k | |
| 48 | 27200102311 | Left lamp guard |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
