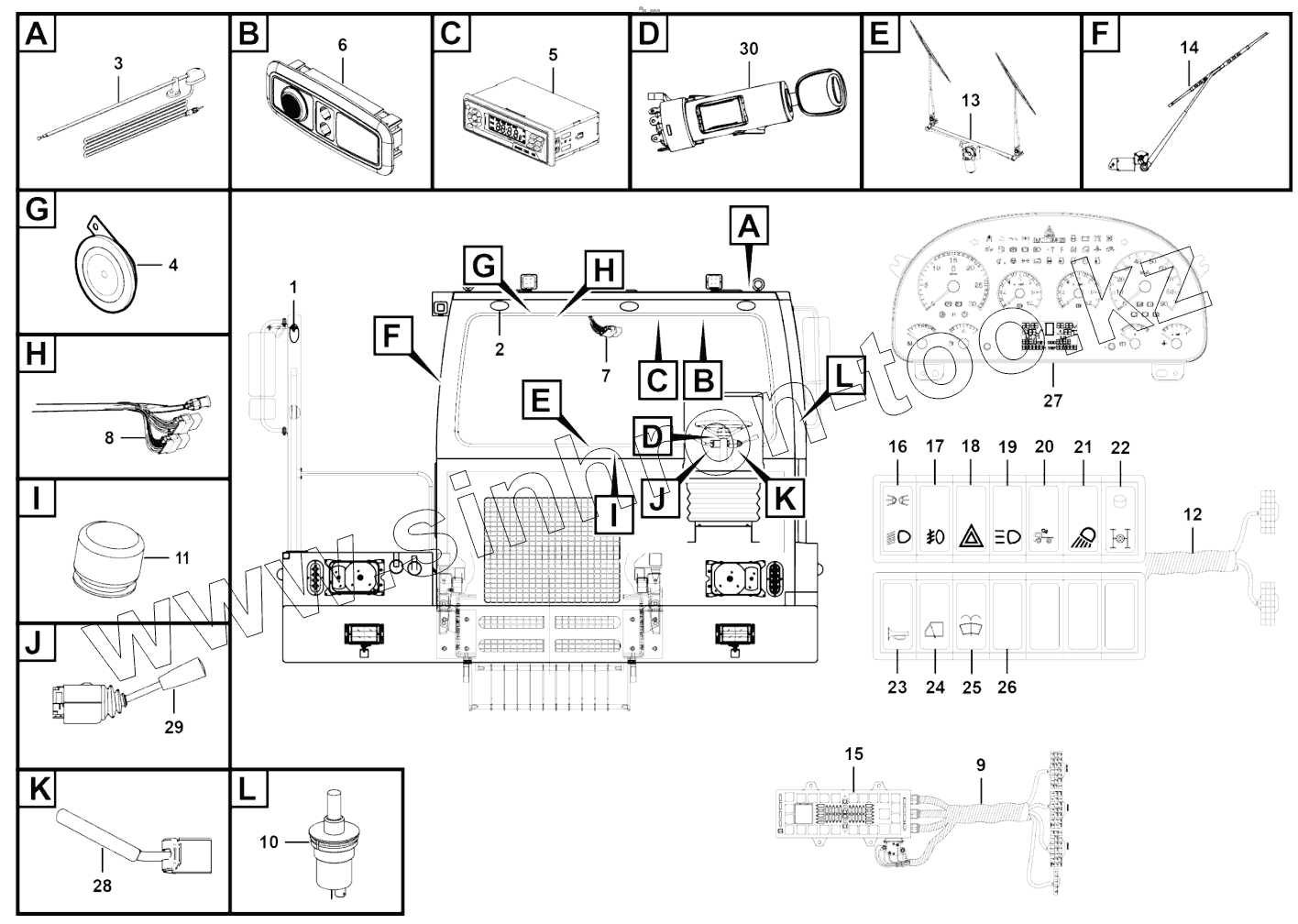

Каталог запасных частей к технике: LGMG MT86H. Cab electrical system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 27200106091 | Platform wiring harness | |
| 2 | 4130000954 | Front profile light of the cab | |
| 3 | 4130000300 | Antenna QT1290B259 | |
| 4 | 4130000299 | Alarming tx1033ar29 | |
| 5 | 4130000706 | Radio tk-b50d | |
| 6 | 4130000312 | Indoor ceiling light-LG751 | |
| 7 | 27130118101 | Head cap harness | |
| 8 | 27130118091 | Ceiling wiring harness | |
| 9 | 27130118821 | Cab wire | |
| 10 | 4130000323 | Switch -lg751 | |
| 11 | 4130000364 | Cigar lighter | |
| 12 | 27130117571 | Rocker switch wiring harness | |
| 13 | 4130000949 | Integral wiper 37419000040 | |
| 14 | 4130000807 | Side rain wiper | |
| 15 | 4130001102 | Central control box KZQ-003C | |
| 16 | 4130000318 | Work light, profile light rocker switch JK939C | |
| 17 | 4130000314 | Front fog light rocker switch JK939C | |
| 18 | 4130000320 | Central alarm rocker switch JK939C | |
| 19 | 4130000331 | Remote light rocker switch JK939C | |
| 20 | 4130000342 | Rear cab work light rocker switch JK939C | |
| 21 | 4130000319 | Work light rocker switch JK939C | |
| 22 | 4130000317 | Inter-shaft differential rocker switch JK939C | |
| 23 | 4130000315 | Horn rocker switch JK939C | |
| 24 | 4130000341 | Side window wiper rocker switch-JK939C | |
| 25 | 4130000819 | Wiper washing rocker switch JK939C | |
| 26 | 4130000328 | Cover plate | |
| 27 | 4130000815 | Combination instrument zb208flgb3414b-4.0jbs | |
| 28 | 4130001174 | Combination switch(full hydraulic)-cs-102621 | |
| 29 | 4130000701 | Switch | |
| 30 | 4130001175 | Ignition switch-81.46433.6009-1 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
